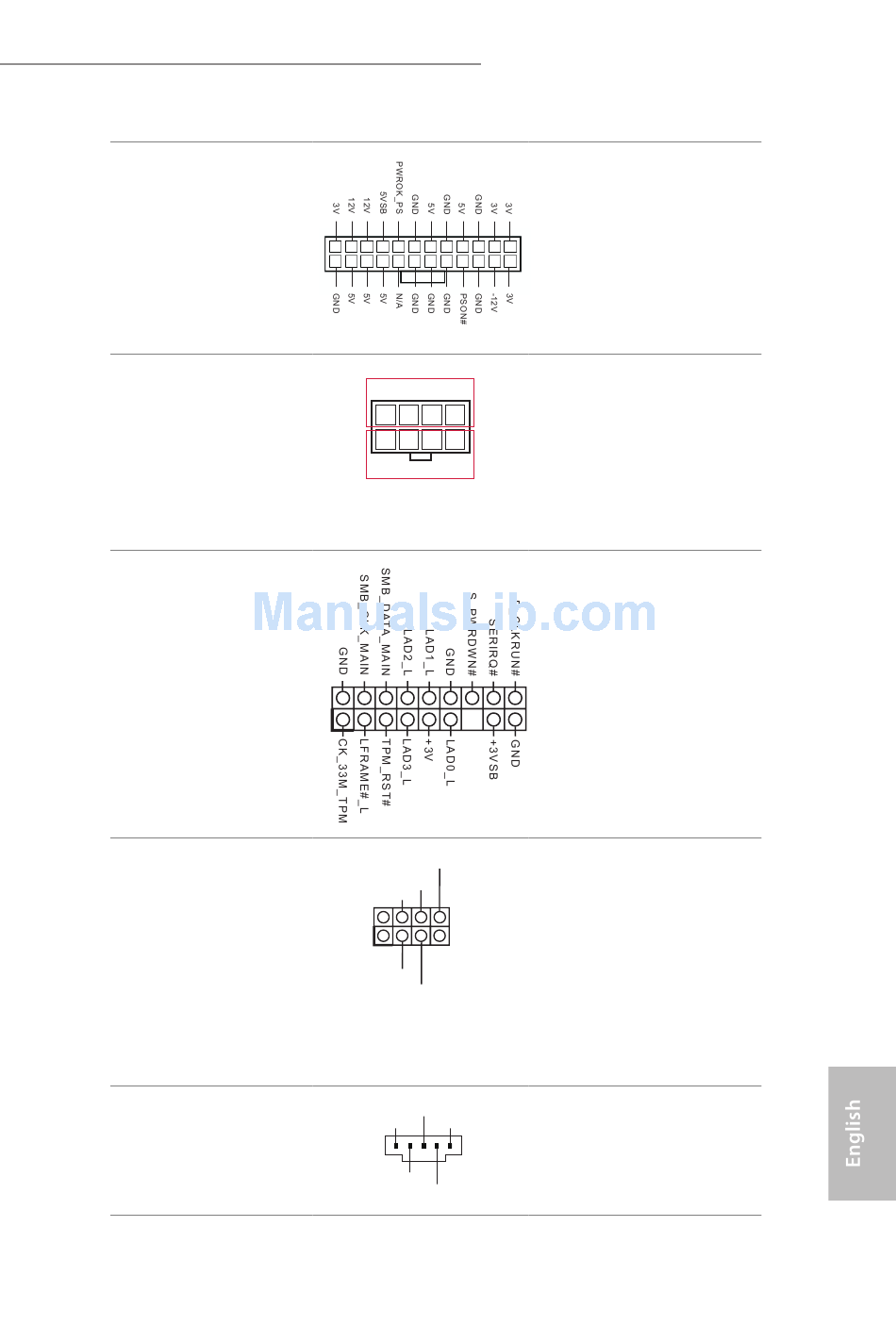

ATX Power Connector
(24-pin ATXPWR1)
(see p.7 or 10)
ATX 12V Power
Connectors
(8-pin ATX12V1)
(see p.7 or 10)
(8-pin ATX12V2)
(see p.7 or 10)
TPM Header
(17-pin TPM1)
(see p.7 or 10)
Serial General Purpose
Input/Output Headers
(7-pin SATA_SGPIO1)
(see p.7 or 10)
(7-pin SATA_SGPIO2)
(see p.7 or 10)
(7-pin SSATA_SGPIO1)
(see p.7 or 10)
PSU SMBus
(PSU_SMB1)
(see p.7 or 10)
12
24
+12V2
1
4
5
8
GND
1
SCLOCK
SLOAD
GND
1
SDATAOUT
GND
ALERT
SMBCLK +3VSB
1
SMBDATA
GND
EP2C612D24 / EP2C612D24-4L
his motherboard provides a
24-pin ATX power connector.
To use a 20-pin ATX power
1
supply, please plug it along Pin
1 and Pin 13.
13
his motherboard provides
two 8-pin ATX 12V power
connectors.
his connector supports
Trusted Platform Module
(TPM) system, which can
securely store keys, digital
certiicates, passwords, and
data. A TPM system also helps
enhance network security,
protects digital identities, and
ensures platform integrity.
The headers suppor t Seria l
Li n k i nter face for onboa rd
SATA connections.
PSU SMBus monitors the
status of the power supply, fan
and system temperature.
35
