2.7 Jumper Setup

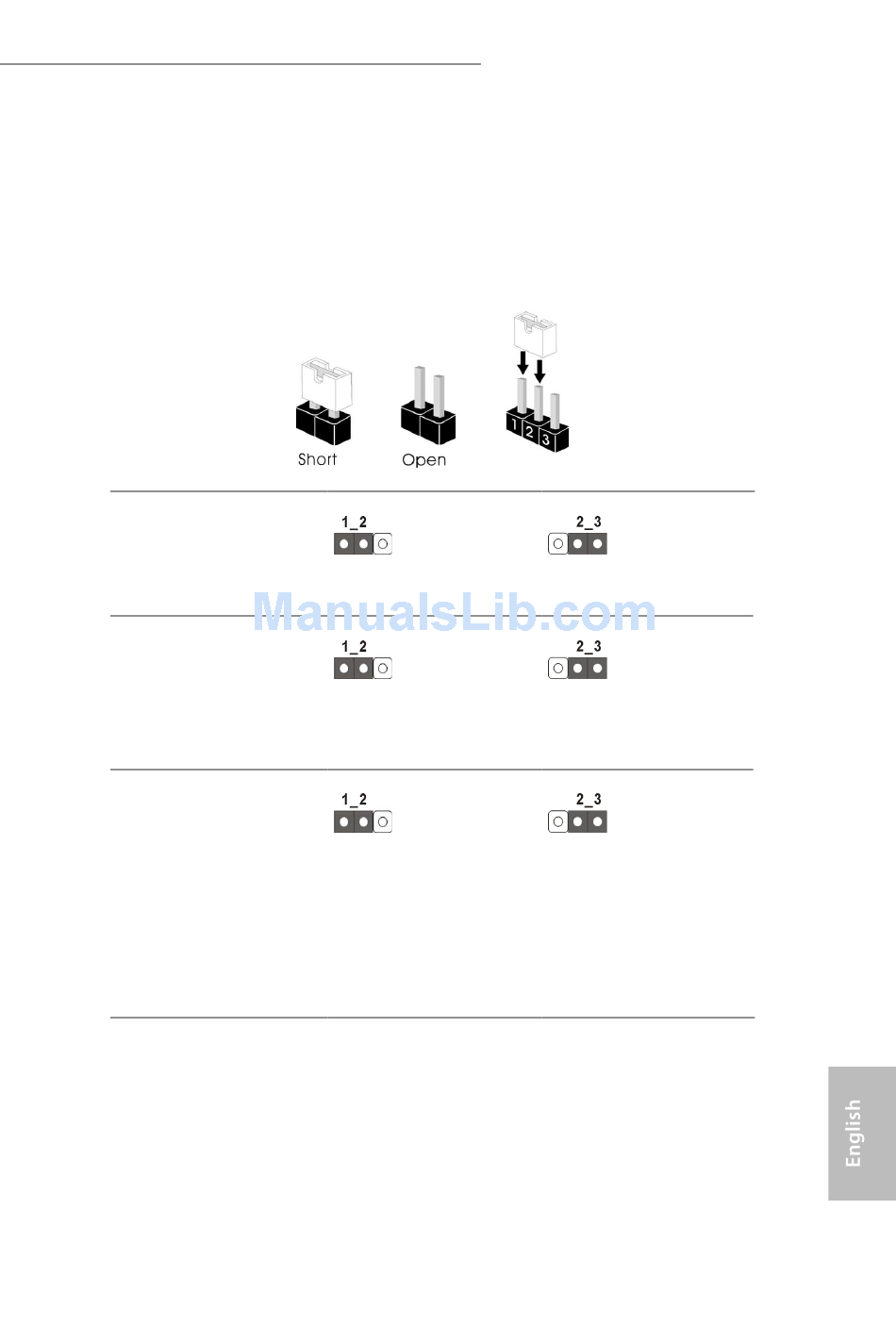

he illustration shows how jumpers are setup. When the jumper cap is placed on
the pins, the jumper is "Short". If no jumper cap is placed on the pins, the jumper
is "Open". he illustration shows a 3-pin jumper whose pin1 and pin2 are "Short"
when a jumper cap is placed on these 2 pins.
ME Recovery Jumper
(3-pin ME_RECOVERY1)
(see p.7 or 10)
CPU PECI Mode Jumper
(3-pin PECI1)
(see p.7 or 10)
PMBUS Mode Jumper
(3-pin PMBUS_SEL_ALT1)
(see p.7 or 10)
(3-pin PMBUS_SEL_DAT1)
(see p.7 or 10)
(3-pin PMBUS_SEL_CLK1)
(see p.7 or 10)
Normal Mode (Default)
CPU PECI connect to PCH
PMBus connected to BMC
(Default)
EP2C612D24 / EP2C612D24-4L
ME Recovery Mode
CPU PECI connect to BMC
(Default)
PMBus connected to PCH
