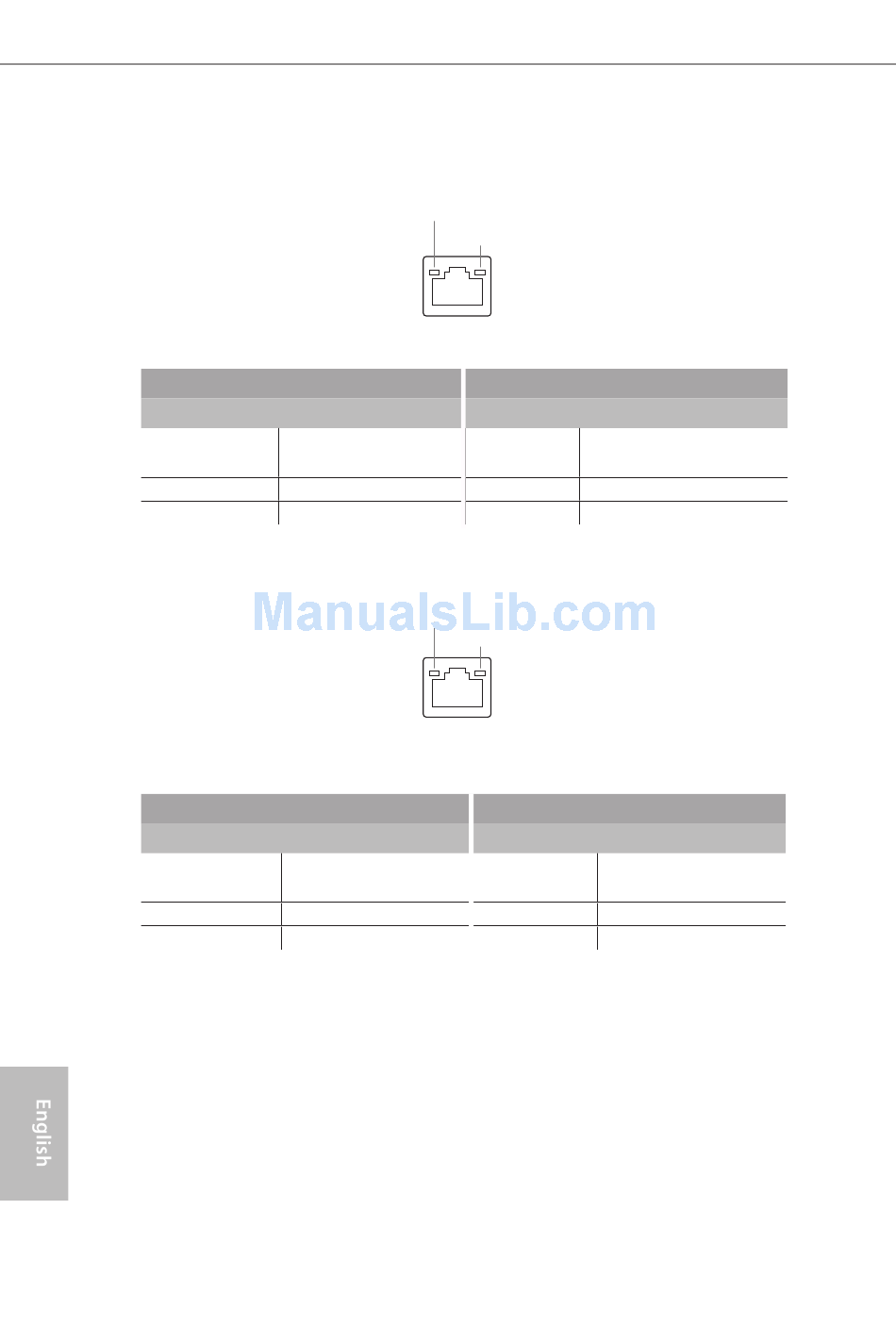

LAN Port LED Indications
*here are two LED next to the LAN port. Please refer to the table below for the LAN port
LED indications.
Dedicated IPMI LAN Port LED Indications
Activity / Link LED
Status
Of
Blinking Yellow
On
**here are two LEDs on each LAN port. Please refer to the table below for the LAN port
LED indications.
LAN Port (LAN1, LAN2, or LAN1, LAN2, LAN3, LAN4) LED Indications
Speed LED
Status
Of
Yellow
Green
16
ACT/LINK LED
LAN Port
Description
No Link
Data Activity
Link
SPEED LED
LAN Port
Description
10Mbps connection or
no link
100Mbps connection
1Gbps connection
SPEED LED
Speed LED
Status Description
Of 10M bps connection or no
link
Yellow 100M bps connection
Green 1Gbps connection
ACT/LINK LED
Activity / Link LED
Status Description
Of No Link
Blinking Green Data Activity
On Link
