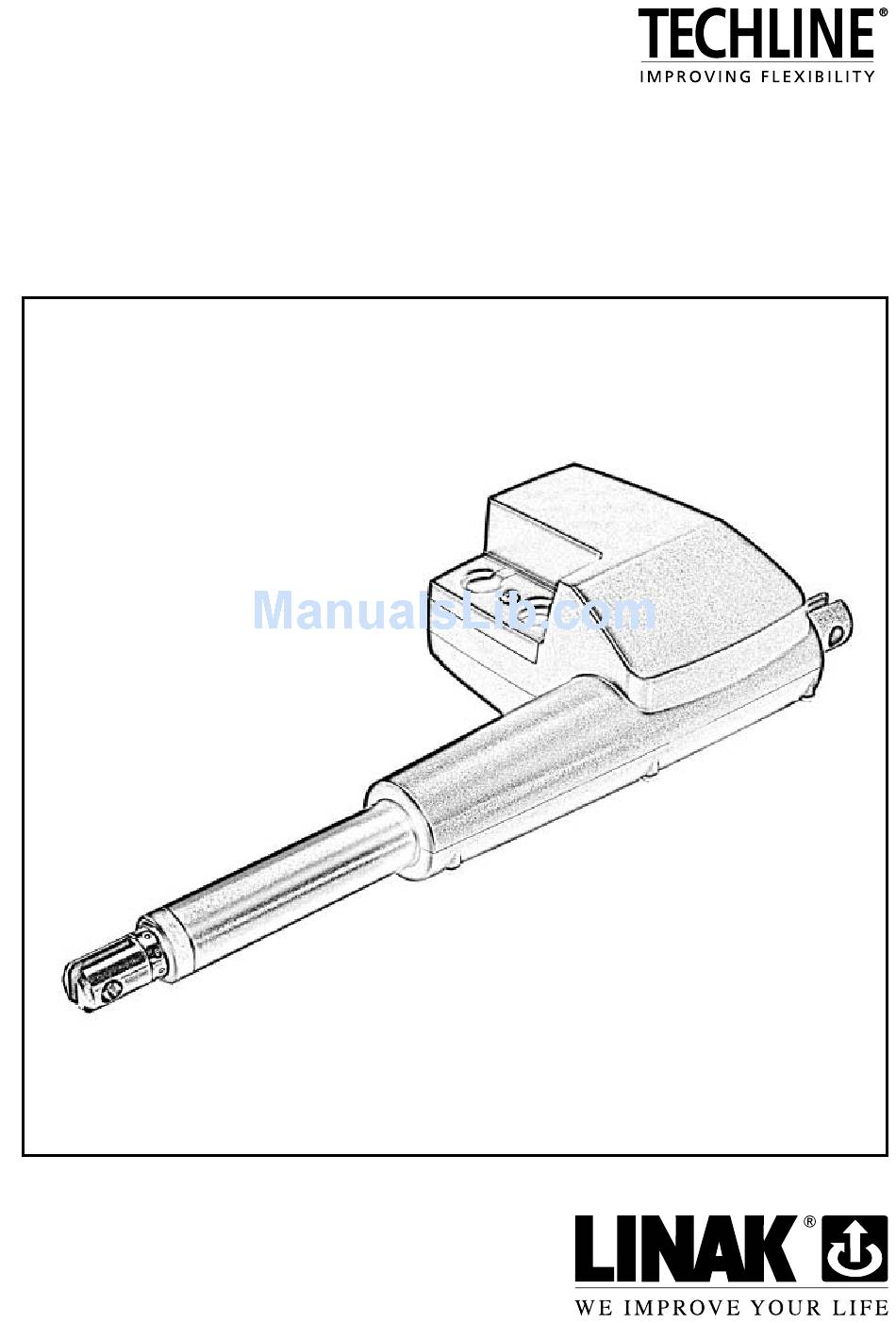

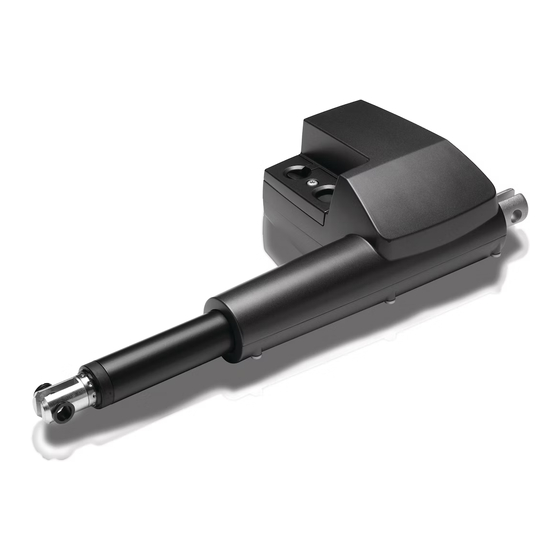

- Page 1 U S E R M A N U A L LA35 ACTUATOR To learn more about LINAK, please visit: W W W . L I N A K . C O M...
-
Page 3: Table Of Contents
Contents Preface ... 4 Safety instructions ... 5 Important information ... 5 Declarations of conformity ... 6 Misc. on the TECHLINE ® actuator system Warranty ... 7 Maintenance ... 7 Maintenance of spherical eyes ... 7 Specifi cations ... 8 Mounting guidelines ... -
Page 4: Preface
Most LINAK subsidiaries have authorised service centres, which are always ready to help you. LINAK provides a warranty on all its products. This warranty, however, is subject to correct use in accordance with the specifi cations, maintenance being done correctly and any repairs being carried out at a service centre, which is authorised to repair LINAK products. -
Page 5: Safety Instructions
Safety instructions Please read the following safety information carefully. Ensure that all staff who are to connect, mount, or use the actuator are in possession of the necessary information and that they have access to this user manual. Persons who do not have the necessary experience or knowledge of the product/products must not use the product/products. -
Page 6: Declarations Of Conformity
LINAK Actuator 35xxxxxxxxxxx2x complies with the EMC Directive: 2004/108/EC according to following harmonized standards: EN 61000-4-2:1995+A1+A2, EN 61000-4-3:2006, EN 61000-4-4:2004, EN 61000-4-5:1995+A1, EN 61000-4-6:1996+A1, EN 50121-3-2, EN 60204-31:1999 Additional information: The actuator does also comply with EMC parts of:... -
Page 7: Misc. On The Techline Actuator System
There is a 12 months’ warranty on the TECHLINE products against manufacturing faults calculated from the production date of the individual products (see label). LINAK’s warranty is only valid in so far as the equipment has been used and maintained correctly and has not been tampered with. Furthermore, the actuator must not be exposed to violent treatment. -
Page 8: Specifi Cations
Specifications Motor: Cable: Housing: Spindle part: Temperature range: End play: Weather protection: * BUS actuators only 24V - please see the installation guide. Special control cabels for BUS actuator - please see the installation guide. Permanent magnet motor 12, or 24 * Motor: 2 x 14 AWG PVC cable Control: 6 x 20 AWG PVC cable ** The housing is made of casted aluminium, coated for... -
Page 9: Mounting Guidelines
It is the application manufacturer’s responsibility to incorporate a suitable safety arrangement, which will prevent personal injury from occurring, if the actuator should fail. Warning! LINAK’s actuators are not constructed for use within the following fields: • Offshore installations • Aeroplanes and other aircraft •... -
Page 10: Electrical Installation
Electrical installation Be aware of BUS actuator - please see the installation guide. Motor connection Wiring: The actuator direction (forward, reverse) is controlled with a doublethrow switch with the centre postion “off”. Actuation To extend the actuator, connect brown to positive and blue to negative. To retract the actuator, connect blue to positive and brown to negative. - Page 11 Actuator with potential free switches and relative positioning - Fig.3 : 35xxxxx0Hxxxxx & 35xxxxx1Hxxxxx SIGNAL Actuator with potential free switches and absolute positioning - Fig.4 : 35xxxxx0Axxxxx & 35xxxxx1Axxxxx SIGNAL Actuator with PLC-option - Fig.5 : 35xxxxx20xxxxx & 35xxxxx2Hxxxxx & 35xxxxx2Axxxxx BROWN BLUE YELLOW...
-
Page 12: I/O Specifi Cations: Motor
See fi gure 1 + 2 + 3 + 4 Use cable 0367002-XXXX Actuator direction can be operated with double-throw switch with middle position “off” LINAK Code: TR-1939.3314-00 Comment Cable dimension 6 x 0,5mm (6 x AWG20) See fi gure 2 + 3 + 4... -
Page 13: I/O Specifi Cations: Relative Positioning
I/O Specifi cations: Relative positioning Item Specifi cation Description The actuator can be equipped with a hall sensor and a spindle magnet. In this way you can have pulses from the actuator when it moves. The output signal is a PNP signal. - Page 14 I/O Specifi cations: PLC-option Item Specifi cation Description Easy to use interface, with integrated power electronics (Hbridge) for direct PLC connection. Soft start of the actuator. Power supply Input Voltage 12 V DC, +/- 20 % 24 V DC, +/- 10 % Current consumption 12 V, 2-10 A depending on load 24 V, 1-5 A depending on load...
-
Page 15: Connection Of The La35 With The Cs16
Connection of the LA35 with the CS16 CS16-4-24 9 10 11 12 R GR O R = RED . O = ORANGE . GR = GREEN Troubleshooting Symptom No motor sound or movement of piston rod Excessive electricity consumption Motor runs but spindle does not move Actuator cannot lift full load No signal from potentiometer... -
Page 16: Mounting Of Cables
The torque of the cover screw is app. 4 Nm Note: When changing the cables on a LINAK actuator, it is important that this is done carefully, in order to protect the plugs and pins. Please be sure that the plug is in the right location and fully pressed in before the cable lid is mounted. -
Page 17: Drawings (Dimensions)
DRAWING APPENDIX ® TECHLINE LA35: LA35 10.2 Installation dimension STROKE =<300 = 200 + STROKE STROKE >300 = 250 + STROKE Minimum Installation dimension = 300 mm Installation dimension 10.2 83.5... -
Page 18: Main Groups Of Disposal
Metal scrap LA35 LINAK’s products may be disposed of, possibly by dividing them into different waste groups for recycling or combustion. We recommend that our product is disassembled as much as possible at the disposal and that you try to recycle it. - Page 19 LINAK shall be responsible solely that the LINAK products comply with the specifi cations set out by LINAK and it shall be the responsibility of the LINAK customer to ensure that the specifi c LINAK product can be used for the application in question.
-
Page 20: Addresses
LINAK cannot guarantee the correct and actual status of said information on its products. While LINAK uses its best efforts to fulfi l orders, LINAK cannot, for the same reasons as mentioned above, guarantee the availability of any particular product. Therefore, LINAK...
