CYP PU-1106-KIT Operation Manual

V1.3 hdmi over cat6 extender set with ir pass-through

Advertisement

Quick Links

PU-1106-KIT
v1.3 HDMI over CAT6 Extender
Set with IR Pass-through
OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PU-1106-KIT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CYP PU-1106-KIT

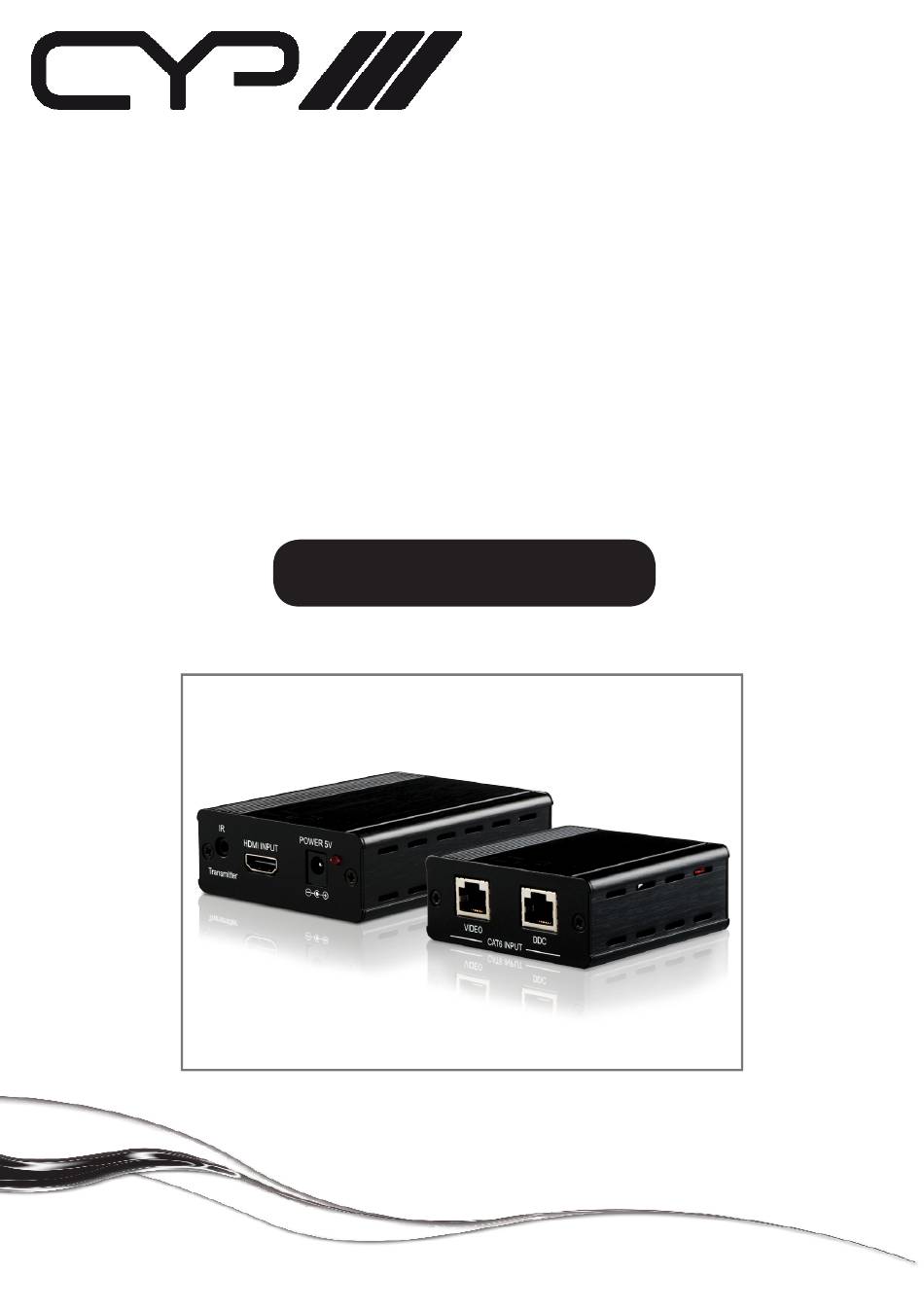

  • Page 1 PU-1106-KIT v1.3 HDMI over CAT6 Extender Set with IR Pass-through OPERATION MANUAL...
  • Page 2: Table Of Contents

    Table of Contents Introduction ……………………..……………………...…..….……. Applications …………………..………………….……....….. Package Contents ………………………...………....… System Requirements ……………..………..………....……. Features …………………………………………..……..…...…… Specifi cations ………………………………...……..………..…. Operation Controls and Functions ……………...……....…… Front Panel ................Rear Panel .…………………………………..……..…...….… Pin Assignment ......……………..…..…..…... IR Cable Pin Assignment ............RJ-45 Pin Defi nitions ..............Connection and Installation ….…………………..…..…..…..
  • Page 3: Introduction

    1. Introduction The HDMI 1.3 transmitter and receiver over CAT6 is the ideal device to send your HDMI signals over long distances. Instead of using expensive HDMI cables, your existing CAT6 cables/sockets can replace HDMI cables while performing the same functions like transferring Deep Color (12 bits/color) video and lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS- HD Master Audio) digital audio.
  • Page 4: Features

    5. Features HDMI 1.3, HDCP 1.1 and DVI 1.0 compliant.  Supports digital video formats in Deep Color Mode at up to 36 bits (12bits/  color) and new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) digital audio . Supports CAT6 cables for data/DDC transmission ...
  • Page 5: Specifi Cations

    6. Specifi cations Transmitter 1 x HDMI 1 x IR Blaster 1 x CAT6 Output Video 1 x CAT6 Output DDC Receiver 1 x HDMI 1 x Receiver 1 x CAT6 Input for Video, 1 x CAT6 Input for DDC HDMI Input Cable 1080p 8-bit (15M), 12-bit (15M) HDMI Output Cable...
  • Page 6: Operation Controls And Functions

    7. Operation Controls and Functions 7.1 Front Panel CH-1106TX CH-1106RX POWER 5V POWER 5V HDMI OUTPUT HDMI INPUT Receiver Transmitter ① ② ③ ④ ⑤ ① IR Transmitter: This slot is where you connect the IR blaster cable. Place the IR eye in front of the source equipment(s) in order to send an IR signal, the IR blaster has a frequency range from 30KHz to 50KHz.
  • Page 7: Rear Panel

    Example: CAT6 CAT6 PU-1106TX PU-1106RX CH-1106TX CH-1106RX VIDEO VIDEO HDMI HDMI HDMI HDMI Cable Cable Cable Cable CAT6 CAT6 Player Player CAT6 CAT6 CH-1106TX CH-1106RX PU-1106TX PU-1106RX VIDEO HDMI VIDEO HDMI Cable Cable CAT6 CAT6 HDMI LCD TV HDMI LCD TV ⑤...
  • Page 8: Pin Assignment

    8. Pin Assignment 8.1 IR Cable Pin Assignment IR Blaster IR Receiver ① Power 5V ① IR signal ② IR Blaster Signal ② Power 5V ③ NC ③ Grounding ① ② ③ ① ② ③ 8.2 RJ-45 Pin Defi nition Video TMDS2+ TMDS2-...
  • Page 9: Connection And Installation

    60°...
