SPRA545A
Table 5. Timing Requirements for MC68360 Interfaced to the C6201/C6701 HPI
Table 6. Timing Requirements for the C6211/C6711 HPI
Table 7. Timing Requirements for MC68360 Interfaced to the C6211/C6711 HPI
Table 8. Timing Requirements for the C64x HPI
Table 9. Timing Requirements for MC68360 Interfaced to the C64x HPI
Table A–1. TMS320C6201/C6701 Host Port Timing Specifications
Table A–2. TMS320C6211/C6711 Host Port Timing Specifications
Table A–3. TMS320C64x Host Port Timing Specifications
Table B–1. Motorola MC68360 Timing Parameters NIL
1

MC68360 Processor Interface

The MC68360 QUICC is 32-bit controller that is an extension of other members of the Motorola
M68300 family. The MC68360 QUICC is a one-chip integrated microprocessor and peripheral
combination that can be used in controller applications (particularly in communications
activities). Figure 1 and Figure 2 show diagrams of the host (MC68360) interface to
TMS320C62x/C67x/C64x HPIs.

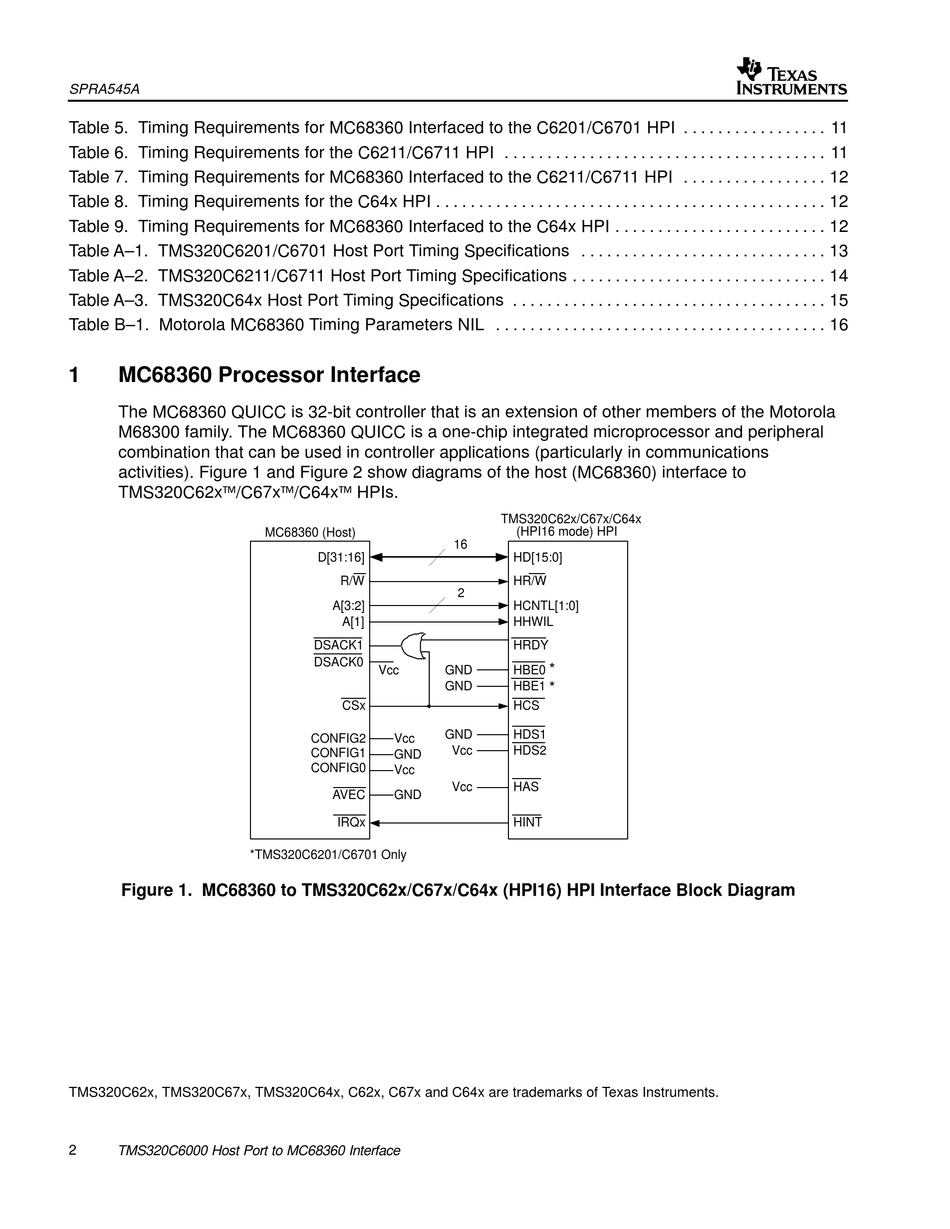

Figure 1. MC68360 to TMS320C62x/C67x/C64x (HPI16) HPI Interface Block Diagram
TMS320C62x, TMS320C67x, TMS320C64x, C62x, C67x and C64x are trademarks of Texas Instruments.
2 TMS320C6000 Host Port to MC68360 Interface
MC68360 (Host)
D[31:16]
R/W
A[3:2]
A[1]
DSACK1
DSACK0
Vcc
CSx
CONFIG2 Vcc
CONFIG1
GND
CONFIG0
Vcc
AVEC GND
IRQx
*TMS320C6201/C6701 Only
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
TMS320C62x/C67x/C64x
(HPI16 mode) HPI
16
HD[15:0]
HR/W
2
HCNTL[1:0]
HHWIL
HRDY
*
GND HBE0
GND HBE1 *
HCS
GND HDS1
Vcc HDS2
Vcc HAS
HINT
. . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . .
11
11
12
12
12
13
14
15
16
