Robustel R3000 Quad User Manual page 71

Robustel R3000 Quad User Guide

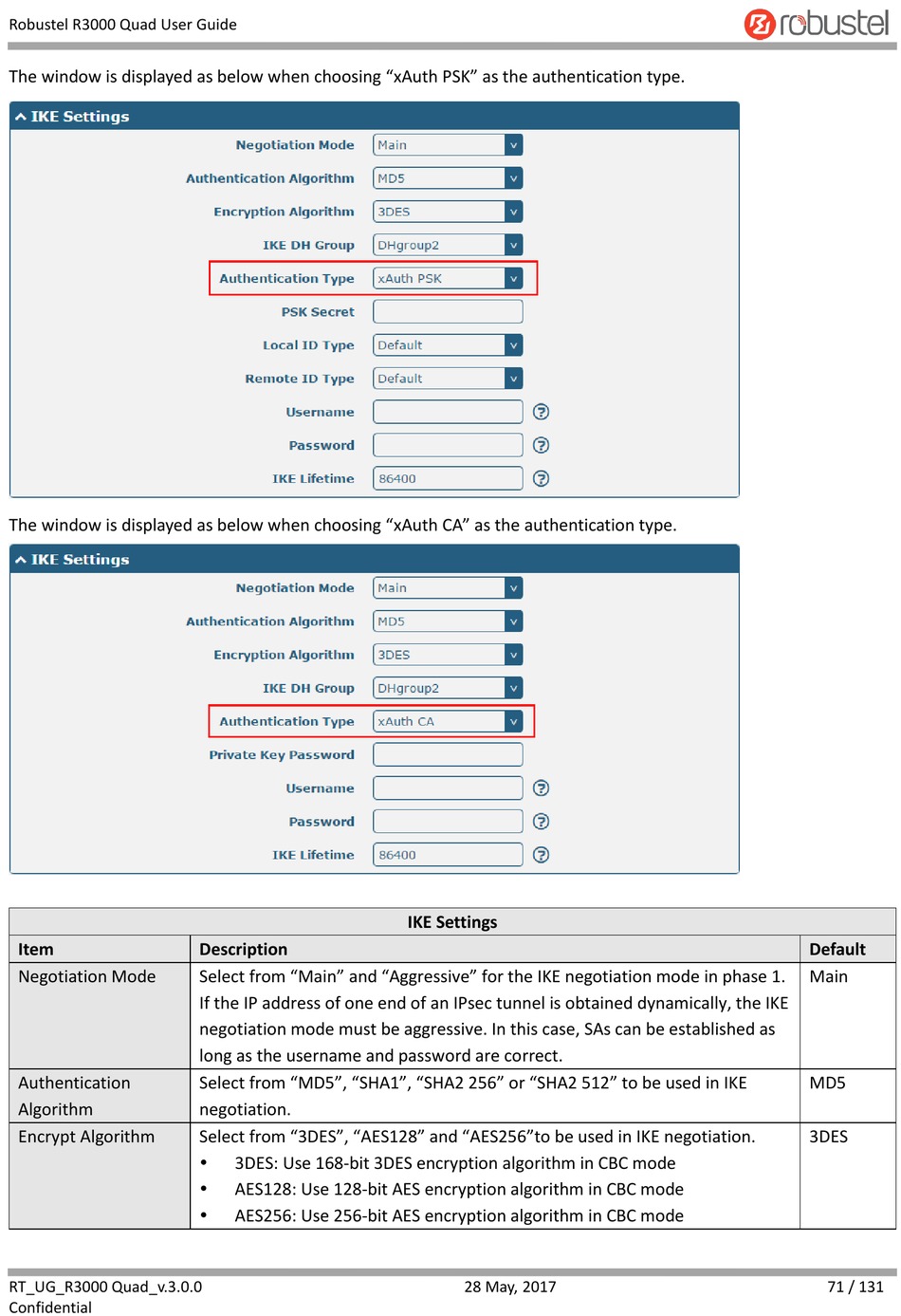

The window is displayed as below when choosing "xAuth PSK" as the authentication type.
The window is displayed as below when choosing "xAuth CA" as the authentication type.
Item
Negotiation Mode
Authentication
Algorithm
Encrypt Algorithm
RT_UG_R3000 Quad_v.3.0.0
Confidential
Description
Select from "Main" and "Aggressive" for the IKE negotiation mode in phase 1.
If the IP address of one end of an IPsec tunnel is obtained dynamically, the IKE
negotiation mode must be aggressive. In this case, SAs can be established as
long as the username and password are correct.
Select from "MD5", "SHA1", "SHA2 256" or "SHA2 512" to be used in IKE
negotiation.
Select from "3DES", "AES128" and "AES256"to be used in IKE negotiation.

3DES: Use 168-bit 3DES encryption algorithm in CBC mode

AES128: Use 128-bit AES encryption algorithm in CBC mode

AES256: Use 256-bit AES encryption algorithm in CBC mode
IKE Settings
28 May, 2017
Default
Main
MD5
3DES
71 / 131
