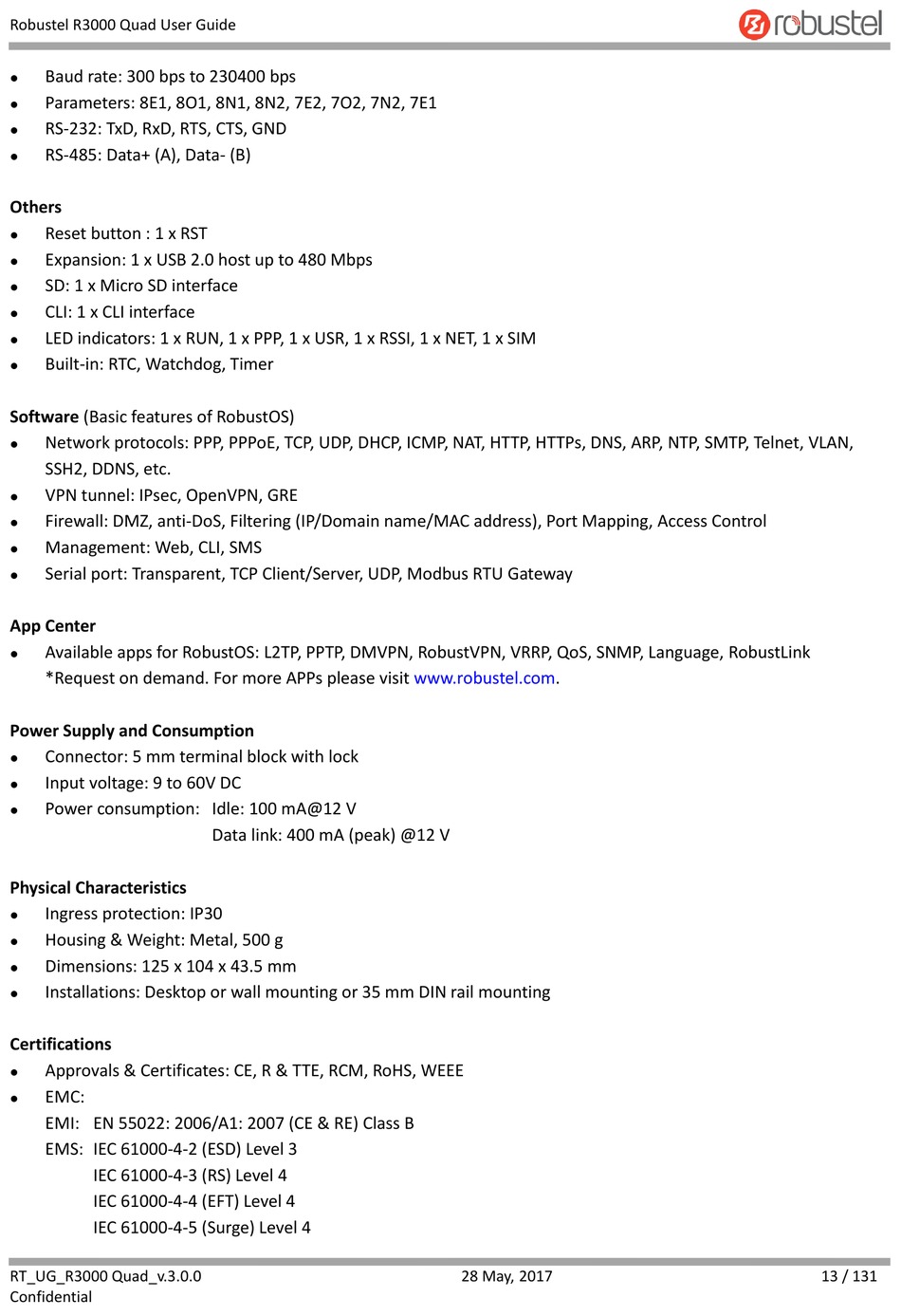

Robustel R3000 Quad User Manual page 13

Robustel R3000 Quad User Guide
Baud rate: 300 bps to 230400 bps

Parameters: 8E1, 8O1, 8N1, 8N2, 7E2, 7O2, 7N2, 7E1

RS-232: TxD, RxD, RTS, CTS, GND

RS-485: Data+ (A), Data- (B)

Others
Reset button : 1 x RST

Expansion: 1 x USB 2.0 host up to 480 Mbps

SD: 1 x Micro SD interface

CLI: 1 x CLI interface

LED indicators: 1 x RUN, 1 x PPP, 1 x USR, 1 x RSSI, 1 x NET, 1 x SIM

Built-in: RTC, Watchdog, Timer

Software (Basic features of RobustOS)
Network protocols: PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, NTP, SMTP, Telnet, VLAN,

SSH2, DDNS, etc.
VPN tunnel: IPsec, OpenVPN, GRE

Firewall: DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control

Management: Web, CLI, SMS

Serial port: Transparent, TCP Client/Server, UDP, Modbus RTU Gateway

App Center
Available apps for RobustOS: L2TP, PPTP, DMVPN, RobustVPN, VRRP, QoS, SNMP, Language, RobustLink

*Request on demand. For more APPs please visit www.robustel.com.
Power Supply and Consumption
Connector: 5 mm terminal block with lock

Input voltage: 9 to 60V DC

Power consumption: Idle: 100 mA@12 V

Physical Characteristics
Ingress protection: IP30

Housing & Weight: Metal, 500 g

Dimensions: 125 x 104 x 43.5 mm

Installations: Desktop or wall mounting or 35 mm DIN rail mounting

Certifications
Approvals & Certificates: CE, R & TTE, RCM, RoHS, WEEE

EMC:

EMI: EN 55022: 2006/A1: 2007 (CE & RE) Class B
EMS: IEC 61000-4-2 (ESD) Level 3
IEC 61000-4-3 (RS) Level 4
IEC 61000-4-4 (EFT) Level 4
IEC 61000-4-5 (Surge) Level 4
RT_UG_R3000 Quad_v.3.0.0
Confidential
Data link: 400 mA (peak) @12 V
