Robustel R3000 Lite Installation Quick Manual

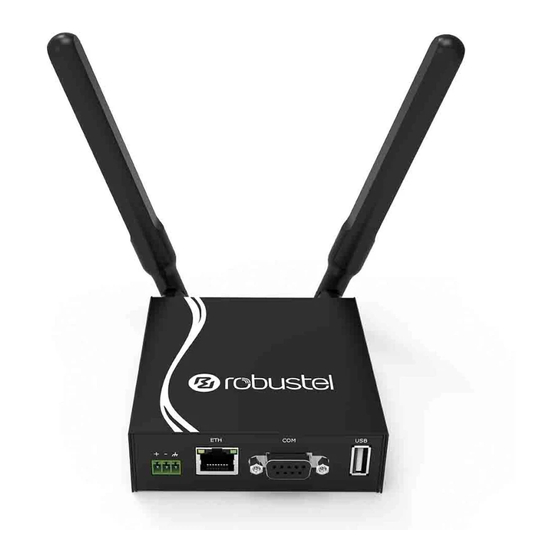

Industrial dual sim cellular vpn router (1 eth + 1 rs-232 + 1 rs-485 + 1 usb host)
Hide thumbs Also See for R3000 Lite:
Table of Contents

Advertisement

Quick Links

Download this manual

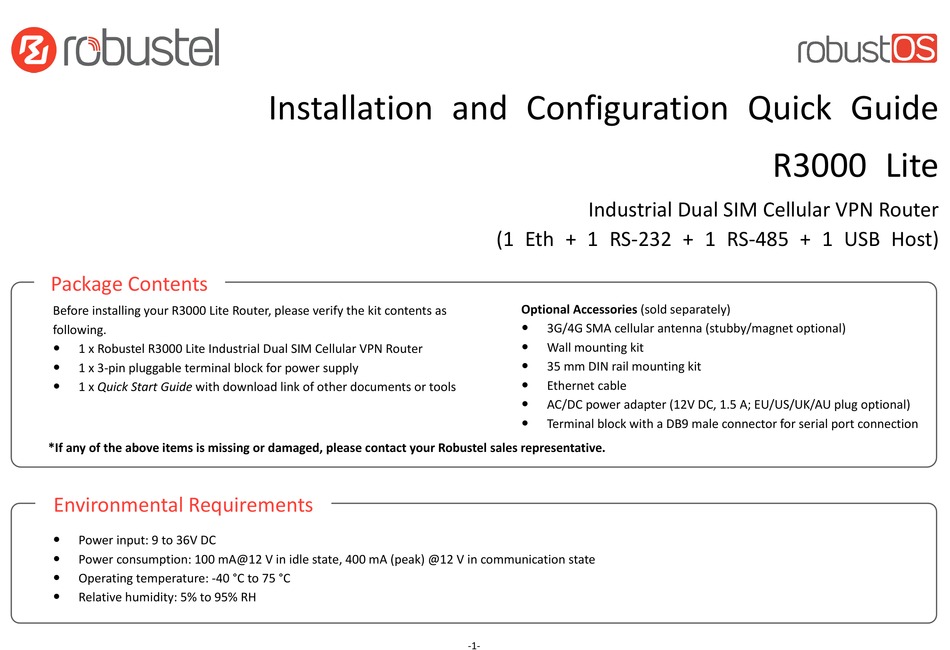

Package Contents
Before installing your R3000 Lite Router, please verify the kit contents as
following.
1 x Robustel R3000 Lite Industrial Dual SIM Cellular VPN Router
1 x 3-pin pluggable terminal block for power supply
1 x Quick Start Guide with download link of other documents or tools
*If any of the above items is missing or damaged, please contact your Robustel sales representative.
Environmental Requirements
Power input: 9 to 36V DC
Power consumption: 100 mA@12 V in idle state, 400 mA (peak) @12 V in communication state
Operating temperature: -40 °C to 75 °C
Relative humidity: 5% to 95% RH
Installation and Configuration Quick Guide
Industrial Dual SIM Cellular VPN Router
(1 Eth + 1 RS-232 + 1 RS-485 + 1 USB Host)
Optional Accessories (sold separately)
3G/4G SMA cellular antenna (stubby/magnet optional)
Wall mounting kit
35 mm DIN rail mounting kit
Ethernet cable
AC/DC power adapter (12V DC, 1.5 A; EU/US/UK/AU plug optional)
Terminal block with a DB9 male connector for serial port connection
-1-
R3000 Lite

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R3000 Lite and is the answer not in the manual?

Questions and answers

Related Manuals for Robustel R3000 Lite

Summary of Contents for Robustel R3000 Lite

  • Page 1 AC/DC power adapter (12V DC, 1.5 A; EU/US/UK/AU plug optional)  Terminal block with a DB9 male connector for serial port connection *If any of the above items is missing or damaged, please contact your Robustel sales representative. Environmental Requirements ...

  • Page 2: Hardware Introduction

    Hardware Introduction 1. Overview 3. Pinouts Polarity Positive Negative Function Debug RS-232 RS-485 Termina Direction (2-wire) l Block Data+ (A) 485+ Router  Device 2. Dimensions Router  Device Router  Device DRXD GND x 2 Data- (B) 485- Router  Device Router ...

  • Page 3: Led Indicators

    4. LED Indicators Name Color Status Description Function Operation When the network is disconnected, those three signal LEDs are Green On, fast blinking Router is powered on (250 mSec blink time) (System is initializing) designed as a binary combination code to indicate a series of error report.

  • Page 4: Reset Button

    7. Ethernet Port R3000 Lite Router has one Ethernet port with two LED indicators. The yellow one is link indicator and the green one is speed indicator. For details about status, see the table below.

  • Page 5: Hardware Installation

    Connect an Ethernet cable to the port marked ETH at the bottom of the then take out the SIM card. R3000 Lite, and connect the other end of the cable to your computer. To put back the cover and tighten the screws associated with the cover by using a screwdriver.

  • Page 6: Mount The Router

    Note: Recommended torque for mounting is 1.0 N.m, and the maximum allowed is 1.2 N.m. R3000 Lite router supports reverse polarity protection, but always refers  DIN rail mounting to the figure above to connect the power adapter correctly.
  • Page 7 PC Configuration There are two methods to get IP address for the PC, one is to obtain an IP address automatically from “Local Area Connection”, and another is to configure a static IP address manually within the same subnet of the router. Please refer to the steps below. Here take Windows 7 as example, and the configuration for windows system is similar.

  • Page 8: Router Configuration

    Router Configuration 1. Log in the Router After logging in, the home page of the R3000 Lite Router’s web interface is displayed, for example. To log in to the management page and view the configuration status of your router, please follow the steps below.
  • Page 9 Click on the right-most of WWAN1 to enter the configuration window. When finished, click Submit > Save & Apply for the configuration to The window is displayed as below when enabling the “Automatic APN take effect. Selection” option. 3. Check the Cellular Connection Status Click Interface >...
  • Page 10 4. Configure the IP of LAN When finished, click Submit > Save & Apply for the configuration to There is one LAN port on R3000 Lite Router, which is ETH. The default settings of ETH is lan0 and its default IP is 192.168.0.1/255.255.255.0.
