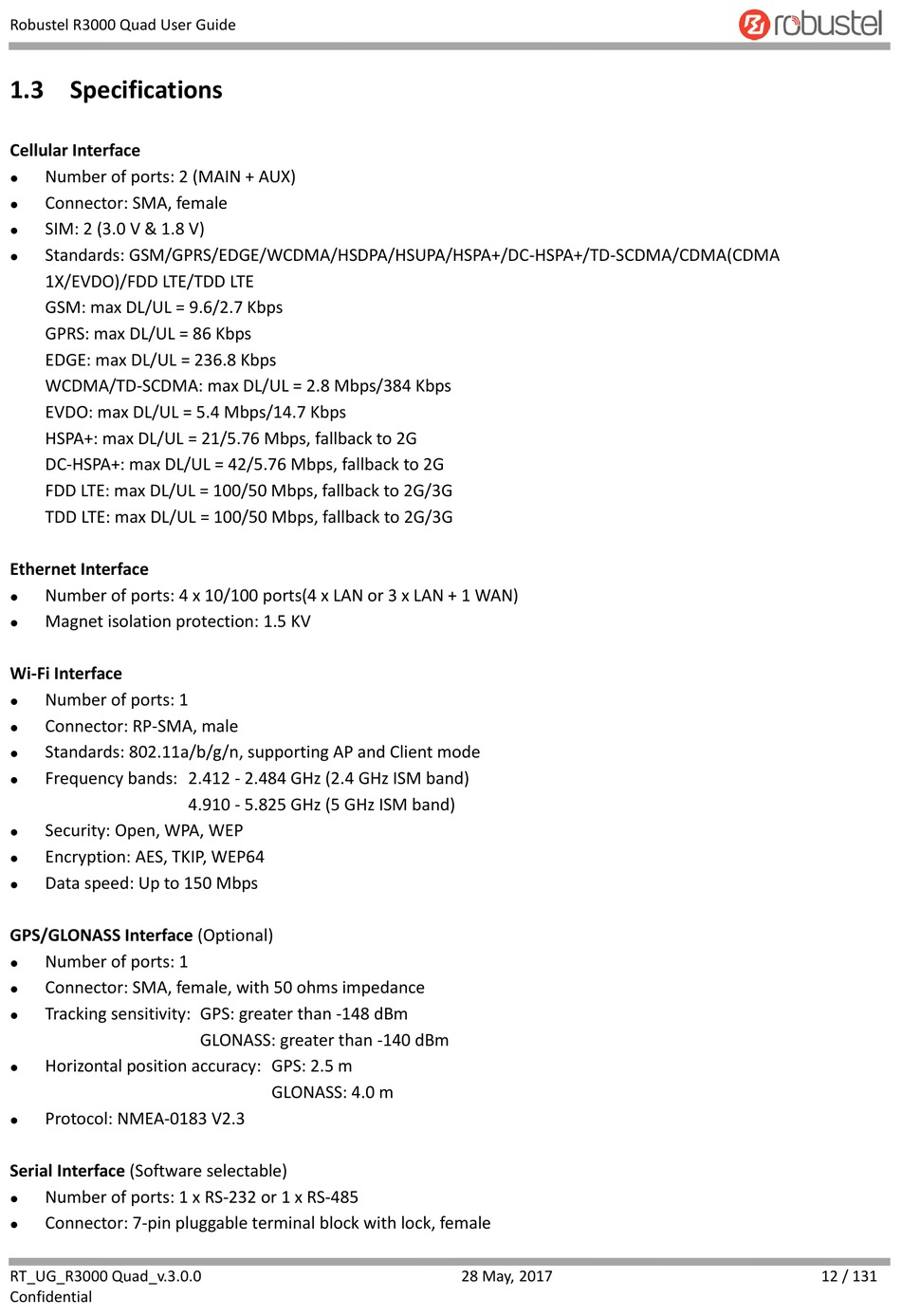

1.3 Specifications

Cellular Interface
Number of ports: 2 (MAIN + AUX)

Connector: SMA, female

SIM: 2 (3.0 V & 1.8 V)

Standards: GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA/HSPA+/DC-HSPA+/TD-SCDMA/CDMA(CDMA

1X/EVDO)/FDD LTE/TDD LTE
GSM: max DL/UL = 9.6/2.7 Kbps
GPRS: max DL/UL = 86 Kbps
EDGE: max DL/UL = 236.8 Kbps
WCDMA/TD-SCDMA: max DL/UL = 2.8 Mbps/384 Kbps
EVDO: max DL/UL = 5.4 Mbps/14.7 Kbps
HSPA+: max DL/UL = 21/5.76 Mbps, fallback to 2G
DC-HSPA+: max DL/UL = 42/5.76 Mbps, fallback to 2G
FDD LTE: max DL/UL = 100/50 Mbps, fallback to 2G/3G
TDD LTE: max DL/UL = 100/50 Mbps, fallback to 2G/3G
Ethernet Interface
Number of ports: 4 x 10/100 ports(4 x LAN or 3 x LAN + 1 WAN)

Magnet isolation protection: 1.5 KV

Wi-Fi Interface
Number of ports: 1

Connector: RP-SMA, male

Standards: 802.11a/b/g/n, supporting AP and Client mode

Frequency bands: 2.412 - 2.484 GHz (2.4 GHz ISM band)

Security: Open, WPA, WEP

Encryption: AES, TKIP, WEP64

Data speed: Up to 150 Mbps

GPS/GLONASS Interface (Optional)
Number of ports: 1

Connector: SMA, female, with 50 ohms impedance

Tracking sensitivity: GPS: greater than -148 dBm

Horizontal position accuracy: GPS: 2.5 m

Protocol: NMEA-0183 V2.3

Serial Interface (Software selectable)
Number of ports: 1 x RS-232 or 1 x RS-485

Connector: 7-pin pluggable terminal block with lock, female

RT_UG_R3000 Quad_v.3.0.0
Confidential
4.910 - 5.825 GHz (5 GHz ISM band)
GLONASS: greater than -140 dBm
GLONASS: 4.0 m
