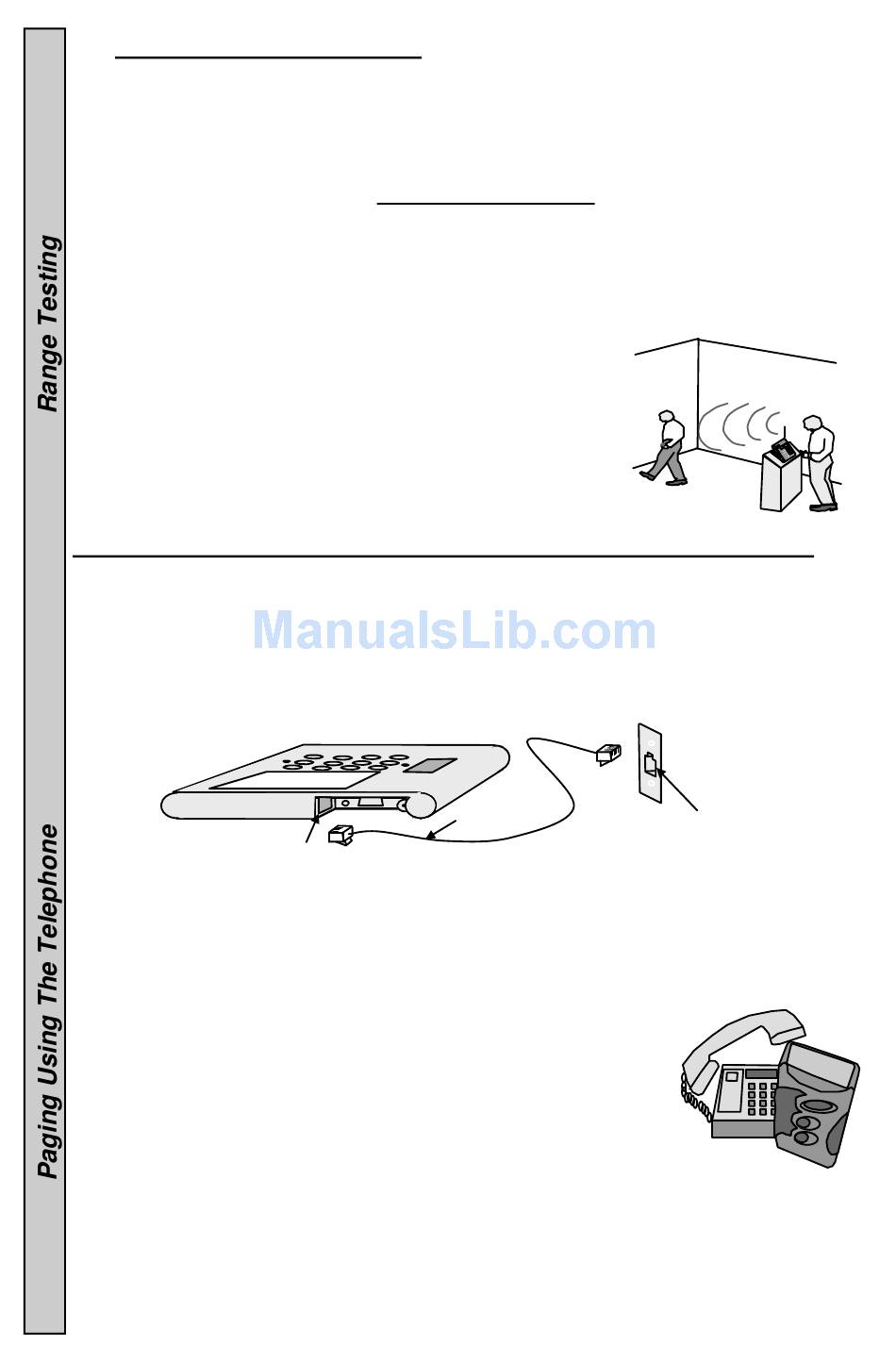

Range Testing the Transmitter

1. Once installed and powered, the Transmitter will display "Enter Pager #".
2. The red (PWR) light at the bottom of the Transmitter keypad will be ON.
3. Enter
4. T he Transmitter sends a page every 5-6 seconds to all Pagers placed in
Group 99 or Pager number 1 (factory defaults). See Dynamic Group for
additional information. Use Guest Pagers only, Wait Staff Pagers cannot be
used for range testing this Transmitter.
5. Pagers need to be fully charged or have fresh batteries installed.
6. Slowly walk the surrounding area with the Pager.
7. Check that the Pager continues to alert with a tone.
8. Cha nging the Transmitter location or moving surrounding objects may effect
range results.
9. If the Pager no longer alerts, walk back slowly
toward the Transmitter until the Pager's alert
begins again. Mark this spot as the maximum
range of the Transmitter in this direction and
continue to check the remaining area.
10. Press any button on the keypad to end the
range test.
2601 Transmitter Phone System Connection And Operation (If Required):
Installation: Requires a dedicated analog telephone line which can "hear" the
tones from a push button telephone.
1.
2.
3.
Transmitter Jack

Paging a Numeric Pager using the telephone:

Pick up the phone and listen for the dial tone.
1.
Dial the phone number that has been assigned to the
2.
Transmitter.
3. Listen for a beep from the telephone that confirms the
Transmitter is ready.
4. Within 8-10 seconds, use the telephone keypad:
a.
b.
c.
d.
5. A beep will be heard on the phone confirms the message was sent.
6. Hang up the telephone.
6
9990# on the keypad.
Connect the phone cord to the jack on the side of the Transmitter.
Plug the other end into an jack wired to a dedicated telephone (fax)
line.
If 'continuous' DTMF tone is available, change Transmitter settings:
A. For 'continuous' DTMF enter * # 577.
B. For 'short burst' DTMF enter * # 576 (factory default).

Ignore the display screen during this procedure
Enter the Pager number (up to 4 digits).
Press the * key.
Enter a numeric message, if desired (16 digits maximum).
Press the # key to send the page.
Phone Cord
Telephone
(Fax) Jack
.
