JTECH QuikCall 321045B5 Manual

Premises pager system
Hide thumbs

Advertisement

Quick Links

Download this manual
Pager and Charger Guide
Part Number 321045B5
®
Premises Pager System
™
QuikCall
Pagers

Advertisement

loading
Need help?

Need help?

Do you have a question about the QuikCall 321045B5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for JTECH QuikCall 321045B5

Summary of Contents for JTECH QuikCall 321045B5

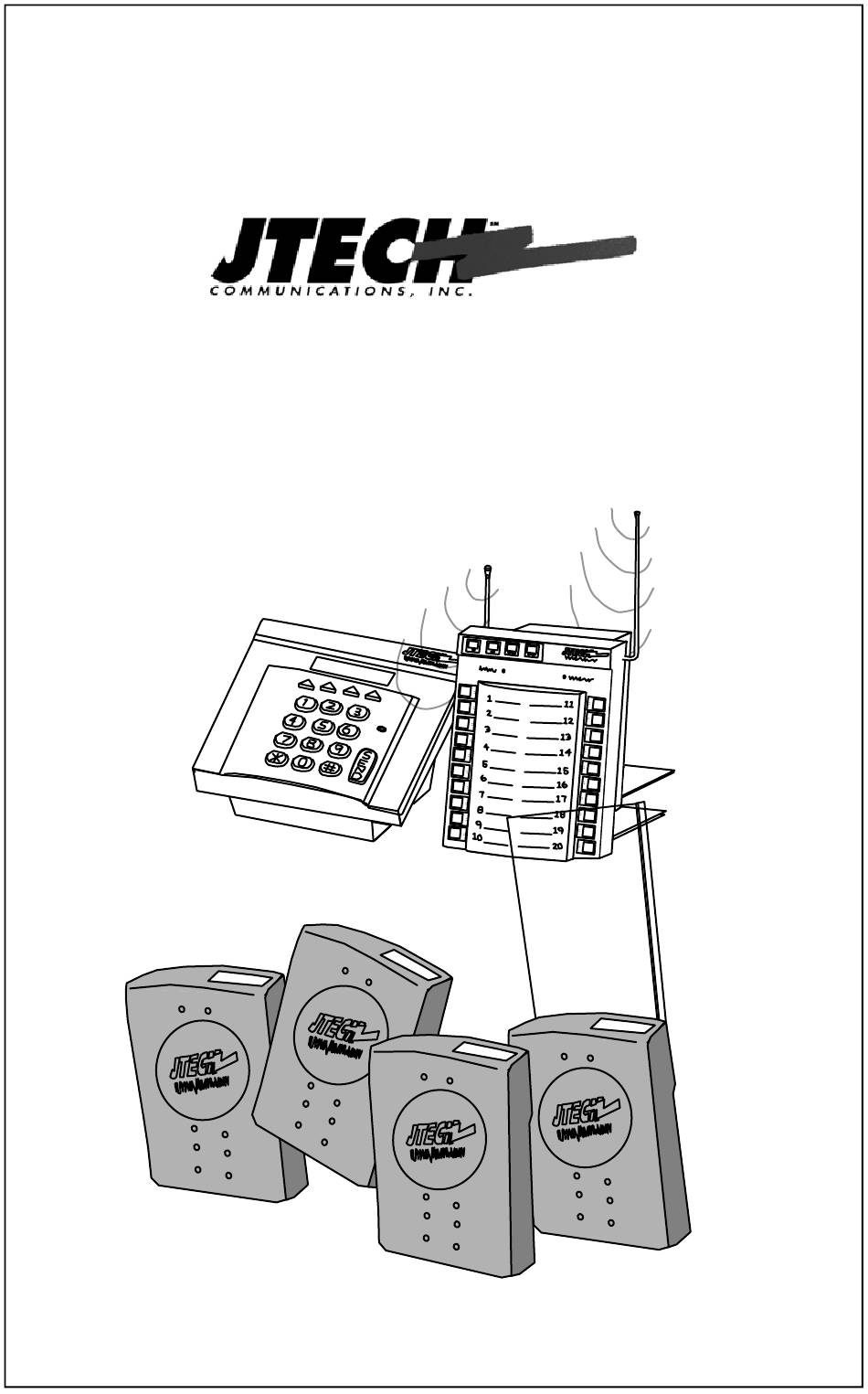

  • Page 1 Pager and Charger Guide Part Number 321045B5 ® Premises Pager System ™ QuikCall Pagers...
  • Page 2 Please inspect the System upon receipt. If the contents appear to be damaged, notify the shipper immediately to file a claim and notify JTECH Customer Care. If any component is missing, please contact JTECH Customer Care.
  • Page 3 Pager (With Spring Clip):  LxWxH 1.4x 2.2x 3.8” (35x56x97mm)  Weight 2.6oz (74gm) Pager (With Promotional Paddle And Inserts):  LxWxH 1.2x 2.2x 7.7” (31x56x196mm)  Weight 4.4oz. (124gm) Charger Dimensions and Weight Charger Only  LxWxH 13.5x 4.8x 2.6”...
  • Page 4 Connecting Power: Insert the Power Adapter plug into jack on the bottom of the Charger. Feed the wires through the guides in the bottom of the Charger. Power Adapter Plug Charger Jack Connect the Power Adapter to the AC Power Cord. Plug the AC Power Cord into a 110-240VAC outlet.
  • Page 5 Combining Chargers: If two Chargers are to be used, they can be combined with one 2.4A Power Supply. To combine: 1. Use a screwdriver or similar tool to extend the metal tabs out from one of the Chargers. 2. Place both Chargers on a table and slide together.
  • Page 6 Charging Pagers:  Pagers are turned OFF during shipment from JTECH.  When first received, Pagers must be charged for a minimum of 3 hours prior to use. This first charge will also turn ON the Pagers for use. ...
  • Page 7 Paging Using a Desktop Controller: 1. Remove a Pager from the Charger. 2. The Pager will vibrate and it’s LEDs will flash to confirm it is ready for use. 3. The Pager charge LED will continue to flash, confirming the it is ready to receive a page. Enter the number of the Pager on the Controller.
  • Page 8 Paging Using a Kitchen Controller or Expeditor Panel: Remove the Pager you wish to page from the Charger. The Pager will flash and vibrate to confirm it is ready for use. The Pager charge LED will continue to flash, confirming it is ready to receive a page.
  • Page 9 Paging Using a Desktop Controller and Telephone: (Telco Module must be installed) 1. Remove the Pager you wish to page from the Charger. 2. The Pager will flash and vibrate to confirm it is ready for use. 3. The Pager charge LED will continue to flash, confirming it is ready to receive a page.
  • Page 10 Replacing the Clip :  There are 3 Clip attachments; Metal, Spring or Paddle.  To replace a Clip or Paddle: Turn the Pager over. Push or pull the small plastic tab as shown in below and slide the Clip or Paddle off.
  • Page 11 “snap” into place. Replace and tighten the screw (do not over tighten). Inserts:  Inserts can be professionally printed (call 4-1/2” (114.3mm) your JTECH sales representative for more details). 1-7/8” (47.6mm)  Material thickness is 0.020” (5.1mm) maximum.

  • Page 12: System Warranty

    SYSTEM WARRANTY JTECH Communications, Inc. warrants its equipment to be free from defects in materials and workmanship for a period of one year. Its obligation under this warranty is limited to repairing or replacing, at its own sole option, any such defective products. Products must be returned with transportation charges prepaid.
