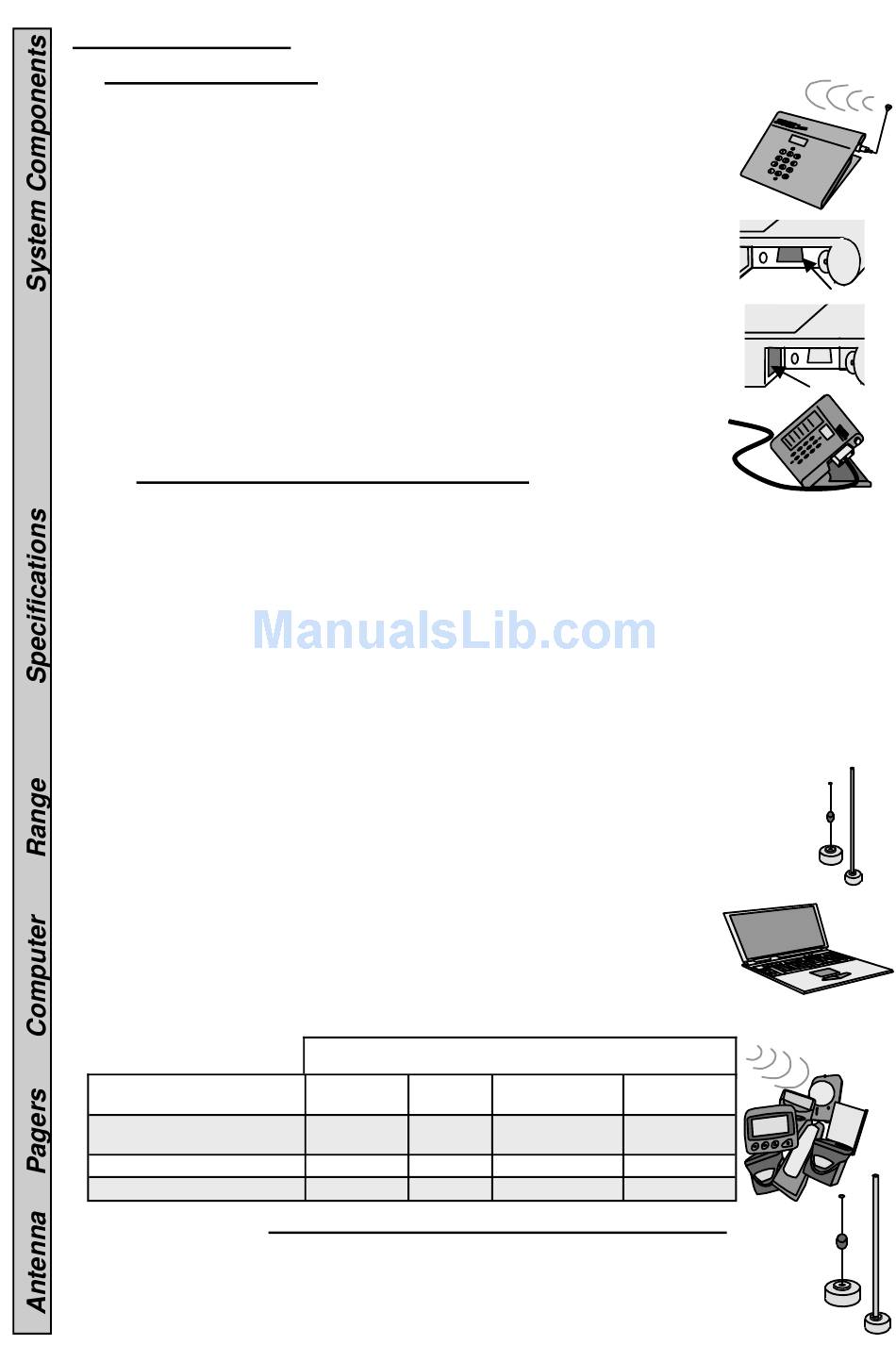

System Components:

Desktop Transmitter:

Pages Vibe, Tone, Flash, Numeric and Alphanumeric Pagers.

Sends numeric pages to Numeric and Alphanumeric Pagers.

RS232 (If Connected to a users Computer):

Pages Vibe, Tone, Flash, Numeric and Alphanumeric Pagers.

Sends numeric pages to Numeric and Alphanumeric Pagers.

Sends alphanumeric pages to Alphanumeric Pagers.

User software and interface development is required.

Phone Connect (Model 2601 Only):

Pages Vibe, Tone, Flash, Numeric and Alphanumeric Pagers.

Sends numeric pages to Numeric and Alphanumeric Pagers.

Remote Keypad and Cable (Optional):

Attaches to the Transmitter to page remotely, up to 50ft
away from the Transmitter.


2600 - 2601 Transmitter Specifications:

Display:
Operating Voltage:
Power Output:
Channel Spacing/Deviation: 12.5KHz / ±4.25KHz
Modulation/Protocol:
Transmit:
RS232 Communications:
Antenna Port/Type:
Operating Frequency:
Temperature Stability:
Size
Weight
Certifications:

Range:

Maximum Transmitter range is 1½-2 miles (2.4-3.2Km).

Range will vary, depending on each location's environment.

Increase maximum Transmitter range with an optional remote
Magnetic Mount Antenna, 6ft Antenna or Extended Range Kit (FCC
license required).
Computer (For use with RS232 and is user supplied):

Computer must have a RS232 port with 1200 baud ability.

Program using Visual Basic, etc. to control Pagers.
Pagers: The table shows the type of information that can be sent and which Pagers
can receive it.
Type of Page Information
Vibe, Tone and Flash
(Guest Pager)
Numeric
Alphanumeric
Optional Antenna: Requires FCC approval and licensing for use.
Magnetic Mount Antenna with 12ft Cable: Is a indoor use only Antenna,
which has a magnetized base for mounting to steel or iron.
6ft Antenna and 25ft Cable: Is a indoor/outdoor use Antenna that can be
mounted to any stable surface.
4
2 Line x 8 Character Alphanumeric LCD
13.5VDC 2.4A 120VAC power adapter
0.1-2 Watts - adjustable using 5 levels.
FSK 512 BPS
512 Baud
1200 Baud
50 ohm BNC / Rotating whip (standard)
UHF synthesized 450-470 MHz. (standard)
-22°to 122°F (-30 to 50°C) at better than 5 ppm
8"x7.13"x1.31"(203mm x 181mm x 233mm)
3.2 Lbs (1.45Kg)
FCC Part 15. IC
Sent By
Remote Keypad
Keypad RS232
X X
X X
X
Phone
Connect
X X
X X
