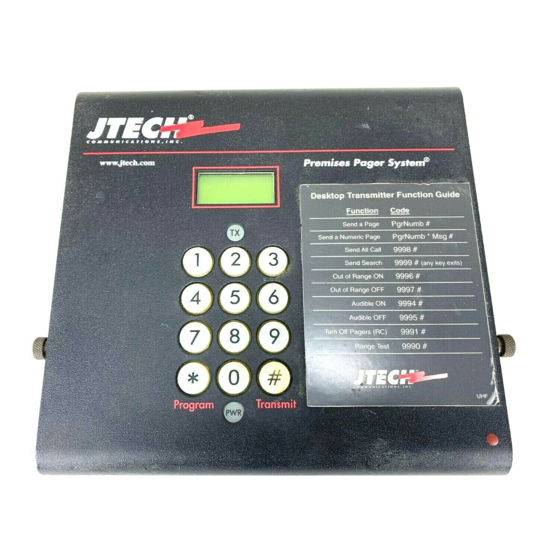

- Page 1 Installation, Programming and Operator Guide Part Number 320115B1 ® Premises Pager System 2600 Desktop Transmitter 2601 Desktop With Telephone Connect...
- Page 2 Congratulations on your purchase of the Premises Pager Model 2600 or 2601 notify the shipper immediately to file a claim and notify JTECH Customer Care. If System. Please take a few minutes to review this manual prior to installing and components are missing, contact JTECH Customer Care.
- Page 3 System Components: Desktop Transmitter: Pages Vibe, Tone, Flash, Numeric and Alphanumeric Pagers. Sends numeric pages to Numeric and Alphanumeric Pagers. RS232 (If Connected to a users Computer): Pages Vibe, Tone, Flash, Numeric and Alphanumeric Pagers. Sends numeric pages to Numeric and Alphanumeric Pagers.
- Page 4 Extended Range Antenna Assembly: Is a indoor/door use Antenna and a 35 Watt Power Amplifier, Power Supply and 50 or 100ft Cable. It increases the output of the Transmitter to 35 watts maximum and range of up to 5 miles. Installing the Transmitter: ...
- Page 5 Range Testing the Transmitter Once installed and powered, the Transmitter will display “Enter Pager #”. The red (PWR) light at the bottom of the Transmitter keypad will be ON. 3. Enter 9990# on the keypad. 4. T he Transmitter sends a page every 5-6 seconds to all Pagers placed in Group 99 or Pager number 1 (factory defaults).
- Page 6 Group Paging using the telephone: Group information can be preprogrammed into the Pagers at your Distributor’s site or JTECH. “Dynamic” Groups can be programmed by the user. See “Add a Pager to a Dynamic Group” on page 14 for more information.
- Page 7 Function Bit: The Function Bit is the single hex character following the preamble. This character tells the Transmitter which bit to turn ON in the POCSAG message sent. Characters are: (Hex 01) Non Priority Alert for Numeric Pagers. (Hex 02) Priority Alert for Numeric Pagers. (Hex 03) Non Priority Alert for Alphanumeric Pagers.
- Page 8 Return Material Authorization (RMA) number. If advance replacement of equipment service is used and the defective equipment is not received back at JTECH within 10 days, JTECH will bill the amount of the list price of the equipment to the Customer.
- Page 9 Transmitter Settings And Functions Settings and functions are programmable by entering information into the Transmitter. From the Transmitter keypad, press the * key to scroll down through the options. Press # to select a displayed function. Press 0 to move up through functions.
- Page 10 Password Enter the Password to access menu options. Enter Pager # See Password for more information. Enter ** Password (factory default) is 1234. Password PPPP = Password PPPP Turn Off Pagers? Turns OFF all Pagers not charging in charger racks. Enter Works with: Pager #...
- Page 11 Send All Call Sends a page to all Pager at the same time. Enter Pager # Works with: InstaCall Vibe/Tone Pagers. Enter ***1234**# Glowster Pagers. CommPass Pagers. Sending PatronPass Pagers. All Call ParentPass Pagers. PeoplePass Pagers. Send All Call Enter Command can also be found in the menu functions.
- Page 12 Replace Pager Changes Pager numbers. Enter The new Pager is paged when the original Pager number is Pager # entered. Example: If Pager 1 Numeric was changed to Pager 2 POC Vibe, display will show: Enter **1234*****# 1 Now Old Pagr 2 Poc # _ _ _ _ To repeat the replace Pager operation, press # again.
- Page 13 Add Pagr to Grp? Adds a Pager to a Dynamic Group. Enter A Dynamic Group is 2 or more Pagers which are linked Pager # together by the transmitter user. This link is done by the Transmitter, with the information being entered through the Enter **1234*******# keypad.
- Page 14 3 = Approx 0.8watt 1mn>5MxY 4 = Approx 1.4watt 5 = Maximum = 2.0watt JTECHuhf Ver V.VV Range may vary depending on installation. See installation for more information. V.VV = JTECH Software Version displays at reset. Y = Output Power Level...
- Page 15 Changes the Transmitter menu password. Change Password? Enter See Password for more information. Pager # Password is 4 digit number. Enter **1234**************# Password (factory default) is 1234. Change Passwrd? wwww= New Password Enter # New PW? Wwww Enter wwww Retype wwww Enter wwww Enter...
- Page 16 Range Test Sends a page to all Pagers in Group 99 sequentially. Enter Pager # Works with: InstaCall Vibe/Tone Pagers. Enter 9990# Glowster Pagers. CommPass Pagers. Range Testing Transmitter will send a page to Pager #1 (factory default) and any Pagers in Group 99 every 4 seconds. Press any Group GG button to quit.
- Page 17 2. Payment Terms. Normal payment terms are C.O.D. unless otherwise set forth in this proposal. Any outstanding balances not paid by the date on which they are due to JTECH Communications Inc. Inc. shall be subject to interest of 1 1/2% per month on the...
- Page 18 Buyer for any reason other than default by JTECH, Buyer shall be liable immediately thereupon, to pay to JTECH the full contract price for all goods completed by JTECH pursuant to the Agreement and for all work in process at the time of termination.
- Page 19 SYSTEM WARRANTY JTECH Communications, Inc. warrants its equipment to be free from defects in materials and workmanship for a period of one year. Its obligation under this warranty is limited to repairing or replacing, at its own sole option, any such defective products. Products must be returned with transportation charges prepaid.
Need help?
Do you have a question about the Premises and is the answer not in the manual?
Questions and answers

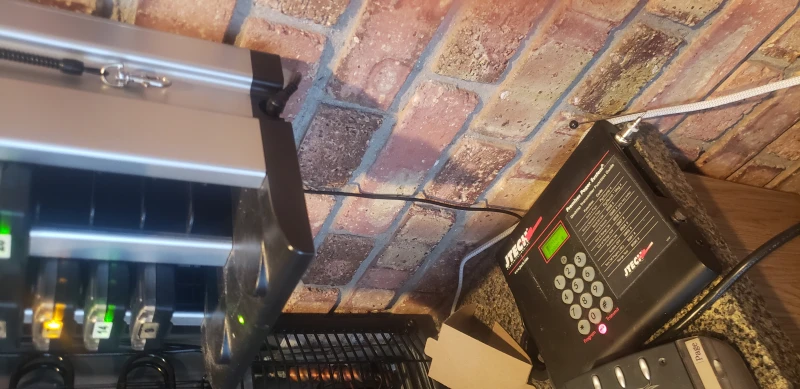

I have just taken over as manager and I have been told our system hasn't worked properly "in a long time" I have gone through all the things I can figure out. But it still doesn't seem to page properly? is there a way to have someone look at this system and get it operating?
