Summary of Contents for JTECH CommPass

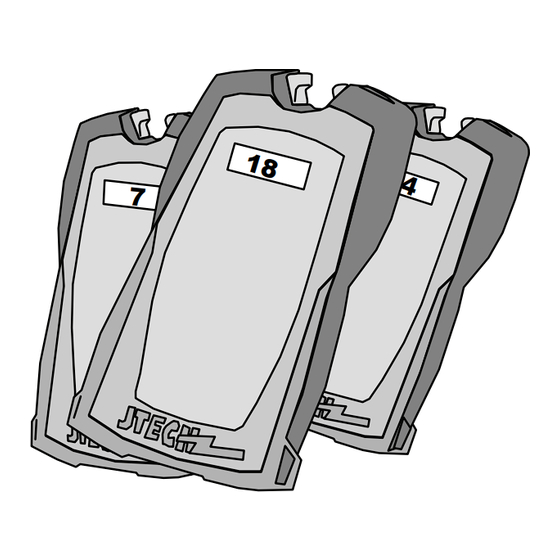

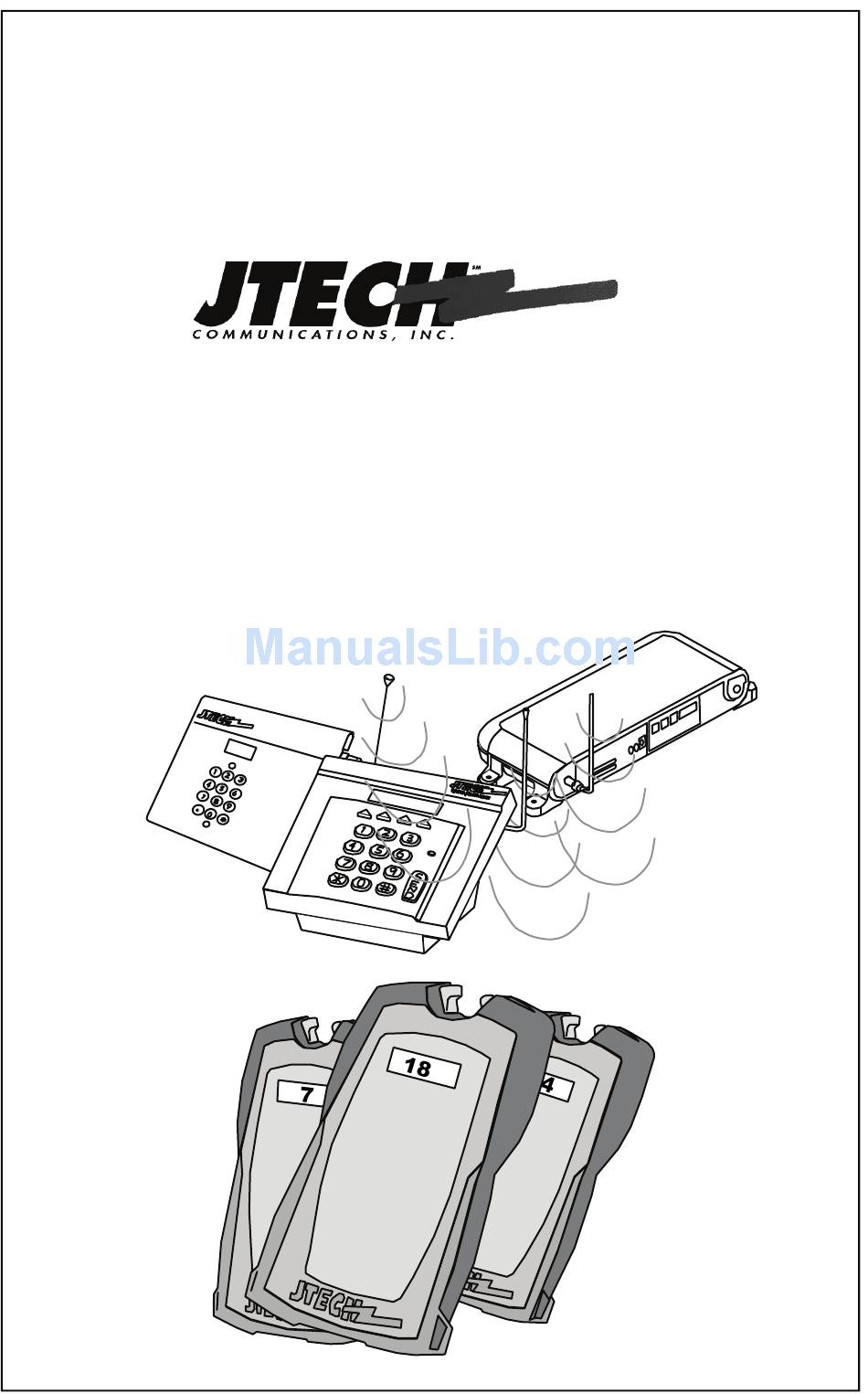

- Page 1 Pager and Charger Guide Part Number 321032B4 Premises Pager System ® ® CommPass Pagers ™ GuestPass Pagers ™ MediPass Pagers ™ ShopperPass Pagers...
- Page 2 Please inspect the System upon receipt. If the contents appear to be damaged, notify the shipper immediately to file a claim and notify JTECH Customer Care. If any component is missing, please contact JTECH Customer Care.
- Page 3 Pager Dimensions/Weight: LxWxH 5.4x 2.3x 0.9” (137x58x23mm) Weight 3.5oz (99gm) Charger Dimensions/Weight: LxWxH 7.3x 6.9x 13.1” (184x176x333mm) Weight (Empty) 6.6lbs (3.0Kg) Weight (With 20 Pagers) 11.0lbs (5.0Kg) Multiple Chargers: A single Charger can hold up to 20 Pagers. ...
- Page 4 Power Connecting Power: Adapter Plug Insert the Power Adapter plug into the jack at the bottom of the Charger. Charger Jack Connect the Power Adapter to the Power Cord. Charging Rack Adapter Power Cord Plug the Power Cord into a 120VAC outlet. The green LED on the Charger will light (ON).
- Page 5 Charging Pagers: Pagers are turned OFF for shipment from JTECH. When first received, Pagers are to be charged for a minimum of 3 hours prior to use. This first charge will also turn ON the Pagers. ...
- Page 6 Paging Using a Desktop Transmitter: 1. Remove the Pager you wish to page from the Charger. 2. The Pager will flash and vibrate to confirm it is ready for use. 3. The Pager LED in the front of the Pager will continue to flash every 3-4 seconds to confirm the Pager is ON and ready to accept a page.
- Page 7 Paging Using a 8205 or 8214 SmartAlert with RS232 and Telephone Transmitter Paging using the Telephone: 1. Remove the Pager you wish to page from the Charger. 2. The Pager will flash and vibrate to confirm it is ready for use. 3.
- Page 8 Replace Inserts: 1. Insert the KEY into the slots on the end of the Pager, until the Clear Plastic Cover unlocks. 2. Remove the Clear Plastic Cover and Insert. 3. Replace the Insert and “snap” the Clear Plastic Cover back into place.
- Page 9 Blank Inserts: Blank Promotional Sheets can be ordered from JTECH as needed. Sheets contain eight Inserts per sheet and perforated for removal. Sheets are white in color and can be printed on using a standard printer. ...
- Page 10 Batteries that no longer charge properly or have a reduced operating time can be replaced by the user. Replacement battery packs can be ordered from JTECH. To replace: 1. Insert the Key into the slots on the end of the Pager until the Clear Plastic Cover unlocks.
- Page 11 Unplug the battery from the Pager. Dispose of the Nickel Metal Hydride battery pack at any retail department or home improvement stores that recycles rechargeable batteries. Plug the new battery pack into the Pager. Move any excess wire to the into the compartment’s left side while inserting the battery into the Pager.
-
Page 12: System Warranty
SYSTEM WARRANTY JTECH Communications, Inc. warrants its equipment to be free from defects in materials and workmanship for a period of one year. Its obligation under this warranty is limited to repairing or replacing, at its own sole option, any such defective products. Products must be returned with transportation charges prepaid.
