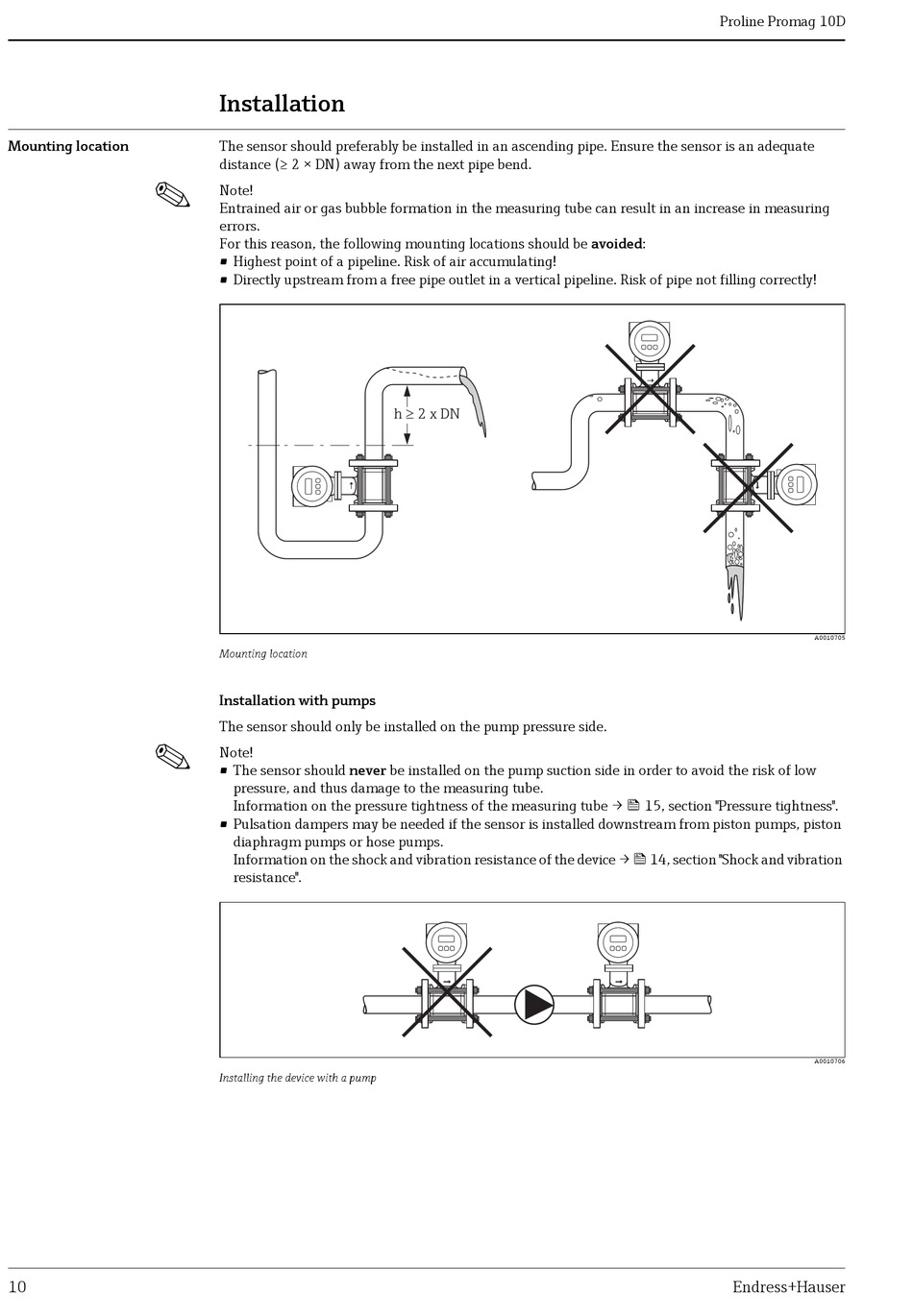

Mounting location

!
!
10

Installation

The sensor should preferably be installed in an ascending pipe. Ensure the sensor is an adequate
distance (≥ 2 × DN) away from the next pipe bend.
Note!
Entrained air or gas bubble formation in the measuring tube can result in an increase in measuring
errors.
For this reason, the following mounting locations should be avoided:
• Highest point of a pipeline. Risk of air accumulating!
• Directly upstream from a free pipe outlet in a vertical pipeline. Risk of pipe not filling correctly!
Mounting location
Installation with pumps
The sensor should only be installed on the pump pressure side.
Note!
• The sensor should never be installed on the pump suction side in order to avoid the risk of low
pressure, and thus damage to the measuring tube.
Information on the pressure tightness of the measuring tube →  15, section "Pressure tightness".
• Pulsation dampers may be needed if the sensor is installed downstream from piston pumps, piston
diaphragm pumps or hose pumps.
Information on the shock and vibration resistance of the device →  14, section "Shock and vibration
resistance".
Installing the device with a pump
³
h 2 x DN
Proline Promag 10D
A0010705
A0010706
