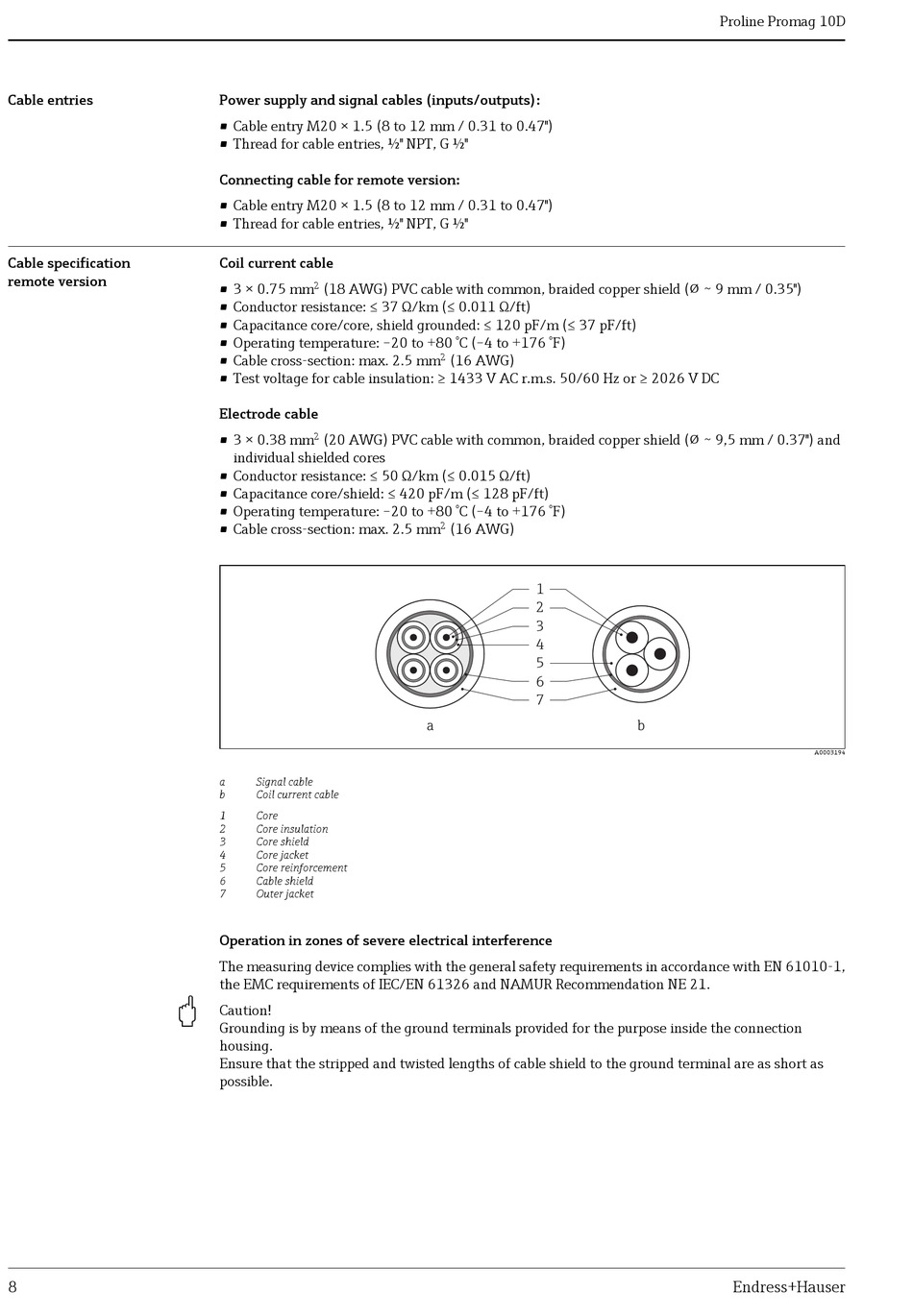

Cable Entries; Cable Specification; Remote Version - Endress+Hauser Proline Promag 10D Technical Information

Cable entries

Cable specification

remote version

"
8
Power supply and signal cables (inputs/outputs):
• Cable entry M20 × 1.5 (8 to 12 mm / 0.31 to 0.47")
• Thread for cable entries, ½" NPT, G ½"
Connecting cable for remote version:
• Cable entry M20 × 1.5 (8 to 12 mm / 0.31 to 0.47")
• Thread for cable entries, ½" NPT, G ½"
Coil current cable
2
• 3 × 0.75 mm (18 AWG) PVC cable with common, braided copper shield (⌀ ~ 9 mm / 0.35")
• Conductor resistance: ≤ 37 Ω/km (≤ 0.011 Ω/ft)
• Capacitance core/core, shield grounded: ≤ 120 pF/m (≤ 37 pF/ft)
• Operating temperature: –20 to +80 °C (–4 to +176 °F)
• Cable cross-section: max. 2.5 mm
• Test voltage for cable insulation: ≥ 1433 V AC r.m.s. 50/60 Hz or ≥ 2026 V DC
Electrode cable
2
• 3 × 0.38 mm (20 AWG) PVC cable with common, braided copper shield (⌀ ~ 9,5 mm / 0.37") and
individual shielded cores
• Conductor resistance: ≤ 50 Ω/km (≤ 0.015 Ω/ft)
• Capacitance core/shield: ≤ 420 pF/m (≤ 128 pF/ft)
• Operating temperature: –20 to +80 °C (–4 to +176 °F)
• Cable cross-section: max. 2.5 mm
a Signal cable
b Coil current cable
1 Core
2 Core insulation
3 Core shield
4 Core jacket
5 Core reinforcement
6 Cable shield
7 Outer jacket
Operation in zones of severe electrical interference
The measuring device complies with the general safety requirements in accordance with EN 61010-1,
the EMC requirements of IEC/EN 61326 and NAMUR Recommendation NE 21.
Caution!
Grounding is by means of the ground terminals provided for the purpose inside the connection
housing.
Ensure that the stripped and twisted lengths of cable shield to the ground terminal are as short as
possible.
2 (16 AWG)
2
(16 AWG)
1
2
3
4
5
6
7
a
Proline Promag 10D
b
