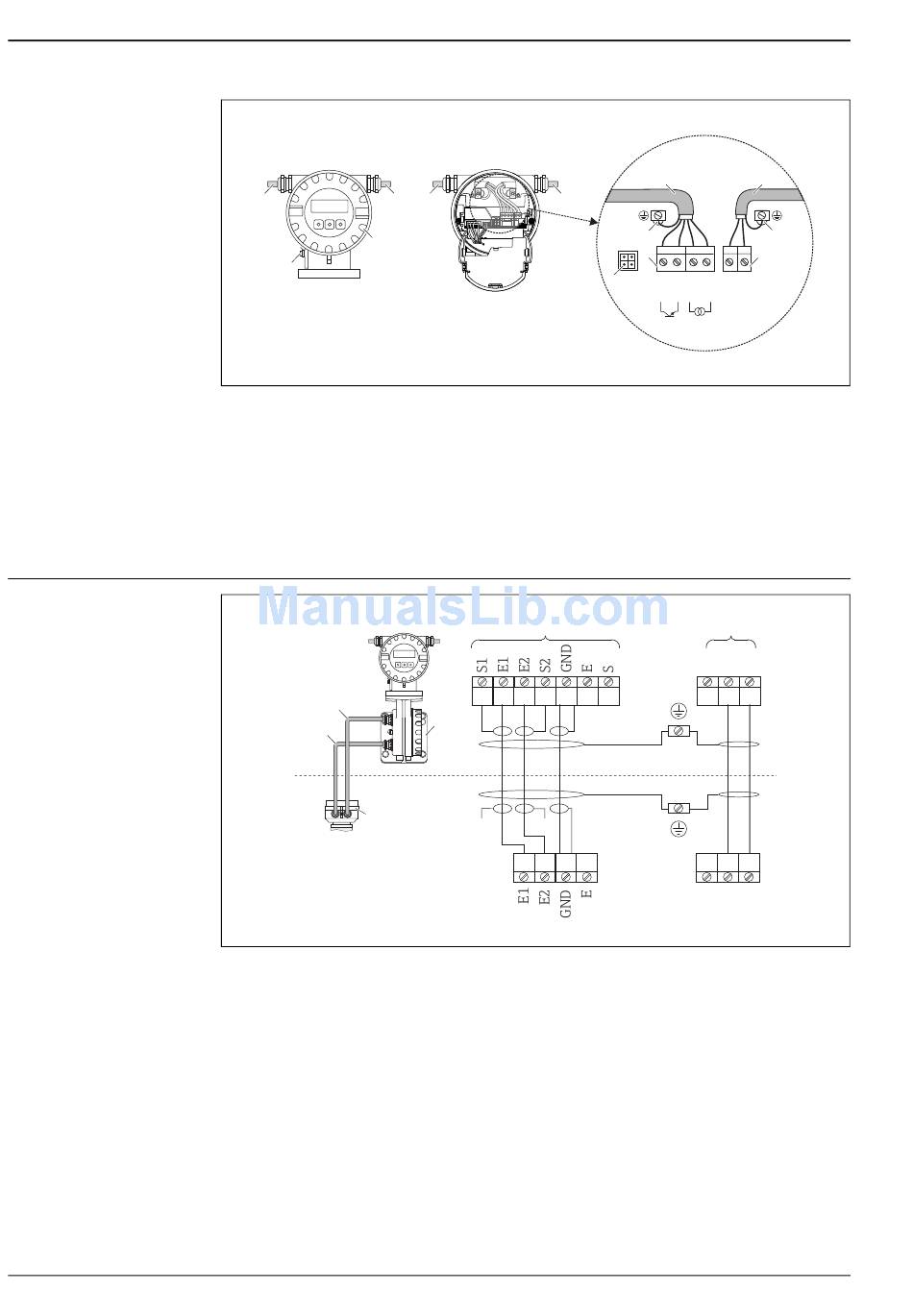

Electrical connection
Electrical connection
remote version
6
e
a
i
Connecting the transmitter, cable cross-section max. 2.5 mm
a
Electronics compartment cover
b
Power supply cable
c
Ground terminal for protective ground
d
Terminal connector for power supply cable
e
Signal cable
f
Ground terminal for signal cable
g
Terminal connector for signal cable
h
Service connector
i
Ground terminal for potential equalization
d
c
b
Connecting the remote version
a
Wall-mount housing connection compartment
b
Sensor connection housing
c
Signal cable
d
Coil current cable
n.c.
Not connected, insulated cable shields
Cable colors/numbers for terminals:
5/6 = brown, 7/8 = white, 4 = green, 41 = 1, 42 = 2
e
b
b
2
(14 AWG)
c
6 5 7 8 4 37 36
a
n.c.
n.c.
5 7 4 37
Proline Promag 10D
e
b
f
c
d
g
h
24
25
26
27
1
2
+
–
+
–
L1
N
(L+)
(L-)
d
42 41
42 41
Endress+Hauser
A0003192
A0010695
