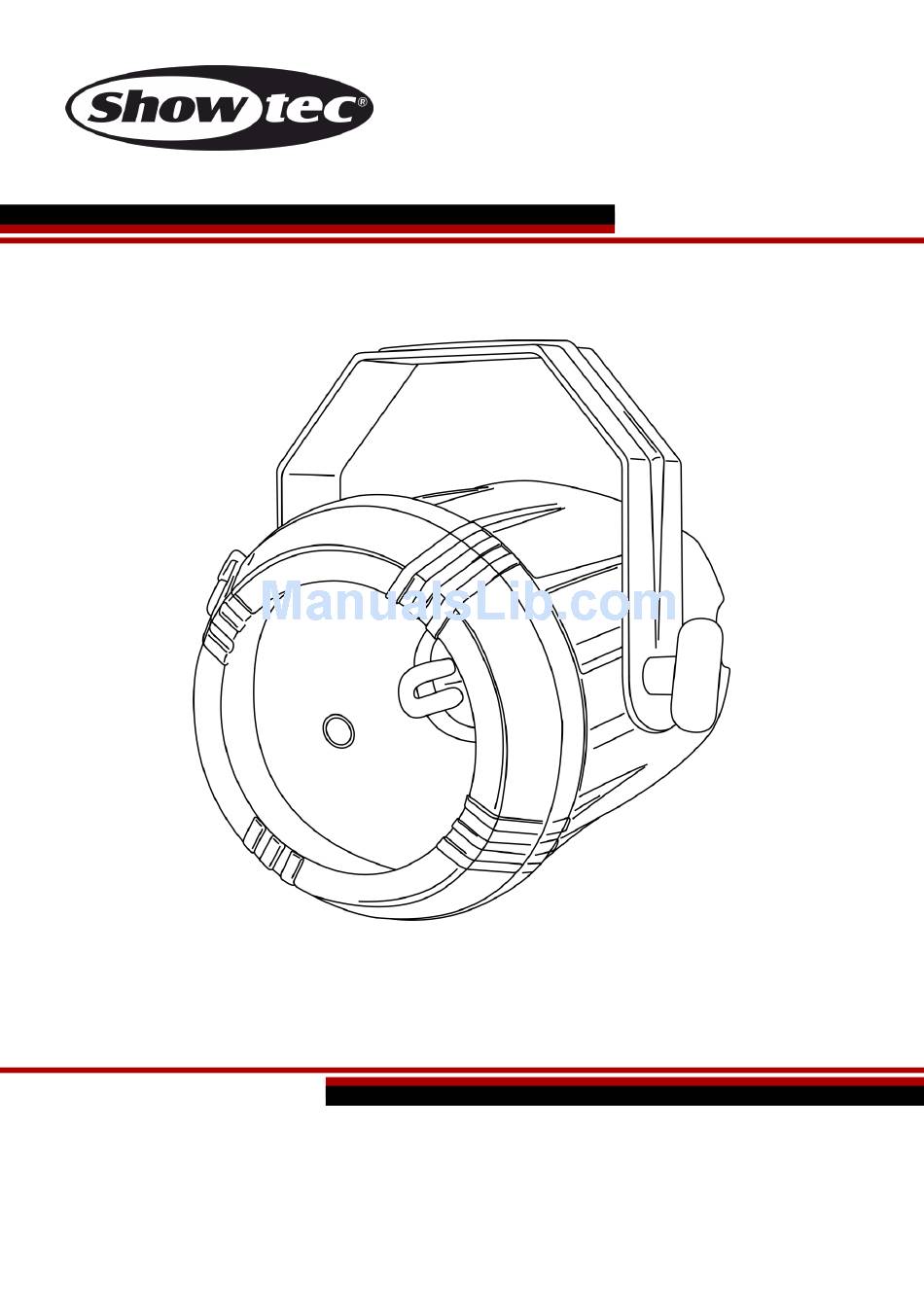

- Page 1 MANUAL ENGLISH Mini Q-Strobe Ordercode: 40225 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Mini Q-Strobe Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Rigging .................................... 4 Connection with the mains............................5 Return Procedure ................................5 Claims ....................................5 Description of the device ..............................6 Features ..................................6 Frontside.................................. -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: Showtec Mini Q-Strobe with a fixed CEE 7/16 Europlug (0,75 m) User manual Safety Instructions Every person involved with the installation, operation and maintenance of this device has to: •... - Page 4 For adult use only. The fixture must be installed out of the reach of children. Never leave the unit running unattended. The user is responsible for correct positioning and operating of the Mini Q-Strobe. The manufacturer will not accept liability for damages caused by the misuse or incorrect installation of this device. ...
-
Page 5: Operating Determinations
Always let the installation be carried out by an authorized dealer ! Procedure: • If the Mini Q-Strobe is lowered from the ceiling or high joists, professional trussing systems have to be used. • Use a clamp to mount the Mini Q-Strobe, with the mounting bracket, to the trussing system. -
Page 6: Connection With The Mains
Mini Q-Strobe Connection with the mains Connect the device to the mains with the power-plug. Always check if the right color cable is connected to the right place. International EU Cable UK Cable US Cable BROWN YELLOW/COPPER PHASE BLUE BLACK... -
Page 7: Description Of The Device
Mini Q-Strobe Description of the device Features The Mini Q-Strobe is a 10W compact strobe fixture. Input voltage: 220-240V AC, 50/60Hz Power consumption: 10W Strobe frequency: 1-15 flashes/sec Housing: Flame retardant plastic Dimensions: 145 x 165 x 170 mm (LxWxH) ... -
Page 8: Backside
06) 220-240V AC, CEE 7/16 Europlug power cable IN (0,75 m) Installation Remove all packing materials from the Mini Q-Strobe. Check if all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. -
Page 9: Maintenance
04) If all appears to be O.K., plug the unit in again. 05) If you are unable to determine the cause of the problem, do not open the Mini Q-Strobe, as this may damage the unit and the warranty will become void. -
Page 10: Product Specifications
Mini Q-Strobe Product Specifications Model: Showtec Mini Q-Strobe Input voltage: 220-240V AC, 50/60Hz Power consumption: Dimensions: 145 x 165 x 170 mm (LxWxH) Weight: 0,5 kg Electro-mechanical effects: Strobe frequency: 1-15 flashes/sec Housing: Flame retardant plastic Connections: CEE 7/16 Europlug power cable IN Max. - Page 11 Mini Q-Strobe Ordercode: 40225...
