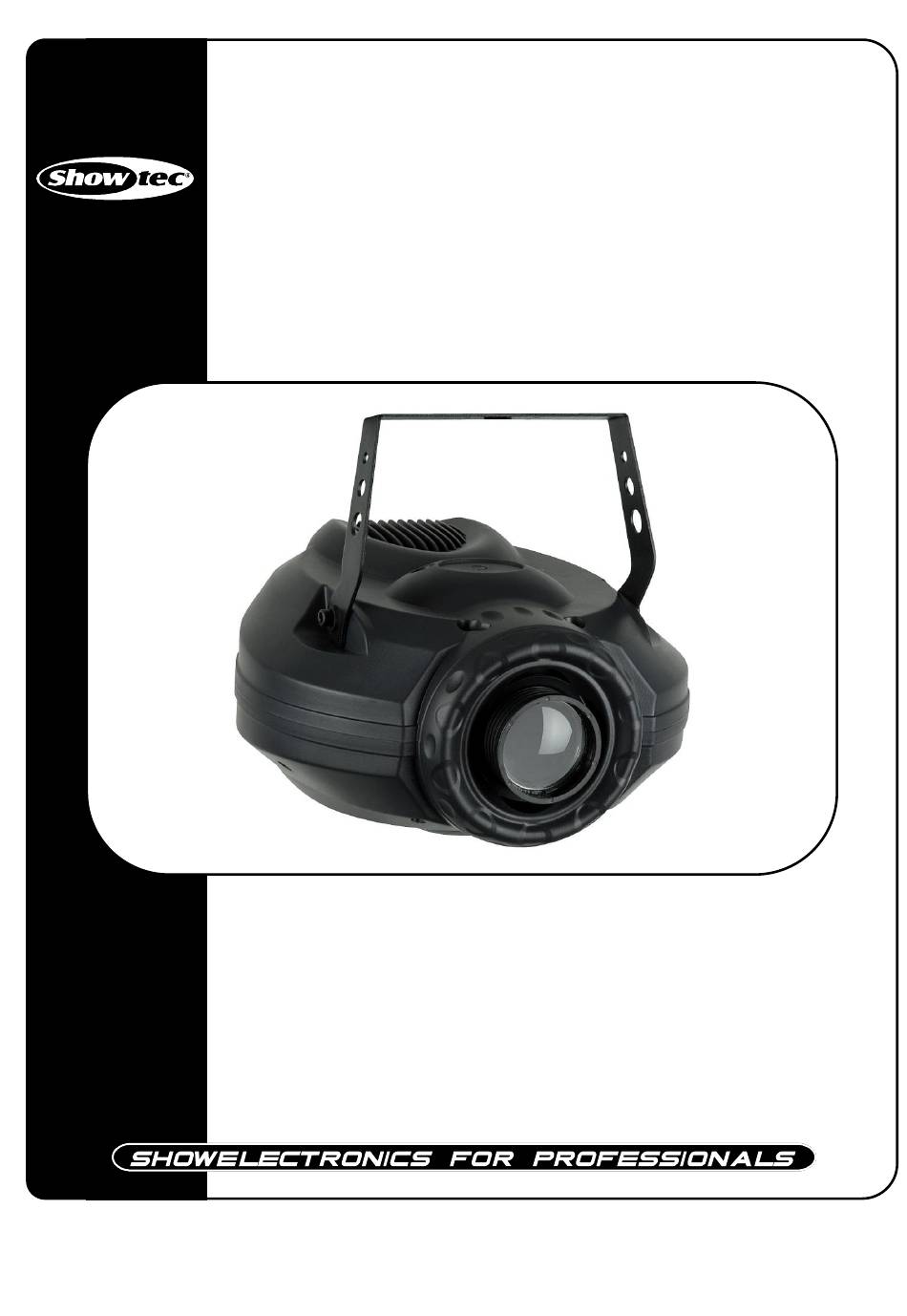

- Page 1 Starzone Gobo Quake DMX ORDERCODE 31322...
- Page 2 For more information: iwant@showtec.info You can get some of the best quality, best priced products on the market from Showtec. So next time, turn to Showtec for more great lighting equipment. Always get the best -- with Showtec ! Thank you!
-
Page 3: Table Of Contents
Showtec Showtec Gobo Quake Product Guide ™ Warning.................…...……………..…………………………….………..….. Safety-instructions………………………………………………………………………………………………………… Operating Determinations.……………………………………………………………………………………………… Rigging.……………………………………………………………………………………………………………………… Description................…...………………………………………….………..…. Features and Overview ………………………………...….……………….………….……….……….……………… Backside…………………………………………………...…...….……………….…………………...……………….…. Installation................…...…………………………………………………..….. Installing the Lamp ............…………………………………………………….………… Set Up and Operation............................One City Painter..............................Multiple City Painters............................DMX-Protocol................................DMX Channels..............................Control Mode..............................DMX Addressing.............................. -
Page 4: Warning
WARNING CAUTION! Keep this device away from rain and moisture! Unplug mains lead before opening the housing! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this device has to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations. -
Page 5: Operating Determinations
If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service. -
Page 6: Rigging
Rigging Please follow the European and national guidelines concerning rigging, trussing and all other safety issues. Do not attempt the installation yourself ! Always let the installation be carried out by an authorized dealer ! Procedure: If the projector is lowered from the ceiling or high joists, professional trussing systems have to be used. -
Page 7: Description
Description of the device Features The Showtec Gobo Quake is a lighteffect with high output and great effects. • Standalone mode: Music/Auto/master-slave • DMX-512 • 3 channels • 2 colour wheels: 16 colours + 13 colour mix • 1 gobo wheel •... -
Page 8: Backside
Backside Fig. 2 4) DMX signal connector (OUT) 5) DMX signal connector (IN) Microphone IEC Power connector + Fuse... -
Page 9: Installation
Installation Installing the Lamp The Showtec Gobo Quake uses the ELC 24V 250W (ordercode 80809O / 80809G / 80809P / 80809S) reflectorbulb as manufactured by all popular manufacturers. Use only the appropriate lamp for your unit. Note that, product versions that use other lamps, may be offered in the future. Check your product specification label for information. -
Page 10: One City Painter
One Gobo Quake 1. Fasten the Gobo Quake onto firm trussing. Leave at least 1 meter on all sides for air circulation. 2. Plug one end of the electric mains power cord into the IEC socket on the unit. Then plug the other end of the cord into a proper electric power supply socket. Turn on the music. -
Page 11: Dmx-Protocol
DMX Protocol The Gobo Quake can be operated with a controller in control mode or without the controller in stand- alone mode. DMX Channels Channel 1 - Dimmer / Shutter Blackout 1-99 DMX Mode 100-155 Automatic Program 156-255 Sound Activity Mode Channel 2 –... -
Page 12: Control Mode
Control Panel When the indicator light is on, means the Gobo Quake is working Fig. 5 A. Power LED D. [MENU] Button G. [ENTER] Button B. Display E. Up Button H. Sound LED C. DMX LED F. Down Button DMX Control Mode The fixtures are individually addressed on a data-link and connected to the controller. -
Page 13: Control Board
For synchronous operation of multiple fixtures the fixtures must all be connected on a data-link and one of them is set as a master (master mode) and the rest as slaves (slave mode). The DMX address of all the slaves are assigned to and on that particular slave address only one fixture can be connected. -
Page 14: Gobowheel
3. Mechanically moving parts like axles, eyes and others may not show any traces of wearing. 4. The electric power supply cables must not show any damages or material fatigue. The Showtec Gobo Quake requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. -
Page 15: Changing The Lamp
Changing the Lamp 1. Disconnect mains power supply. Loosen the 6 screws on the cover. Remove the cover and gently pull out the lamp socket. 2. With one hand holding the lamp socket, pull the lamp out of the lamp socket with the other. 3. -
Page 16: Product Specifications
Product Specification Model: Showtec Gobo Quake Voltage: 240V-50Hz (CE) Fuse: 3,15A / 250V Dimensions: 340x310x335mm (LxWxH) Weight: 4 kg Lamp Allowed lamp models*: Osram ELC 24V 250W (50 hr) ordercode 80809O GE ELC 24V 250W (50 hr) ordercode 80809G Philips ELC 24V 250W (3400°K, 35 hr) ordercode 80809P Sylvania ELC 24V 250W (3400°K, 50 hr) ordercode 80809S...
