2.2

Panel Mount Installation

Note
The controller can be mounted to the display DIN rail or mounted remotely up to 250 ft away from display.
Use the pattern and dimensions shown in Figure 2-2 to lay out the panel cutout for the stainless steel panel mount
enclosure. See Figure for enclosure dimensions.
1. Mark panel for installation using the DIN rail backer plate and cut the five holes required for mounting.
Use DIN Rail Mount
Plate as a pattern for
placing mounting
2. Install the gasket on the display assembly. It must be seated correctly on display before mounting to ensure
tight seal.
3. Align the display assembly to the front and the DIN rail mounting plate to the back of the panel with the
holes cut in step 1.
4. Secure the display and mounting plate to the panel using the four 6-32 Kep nuts (PN 14621) provided.
10 880 Installation Manual
5.0 "

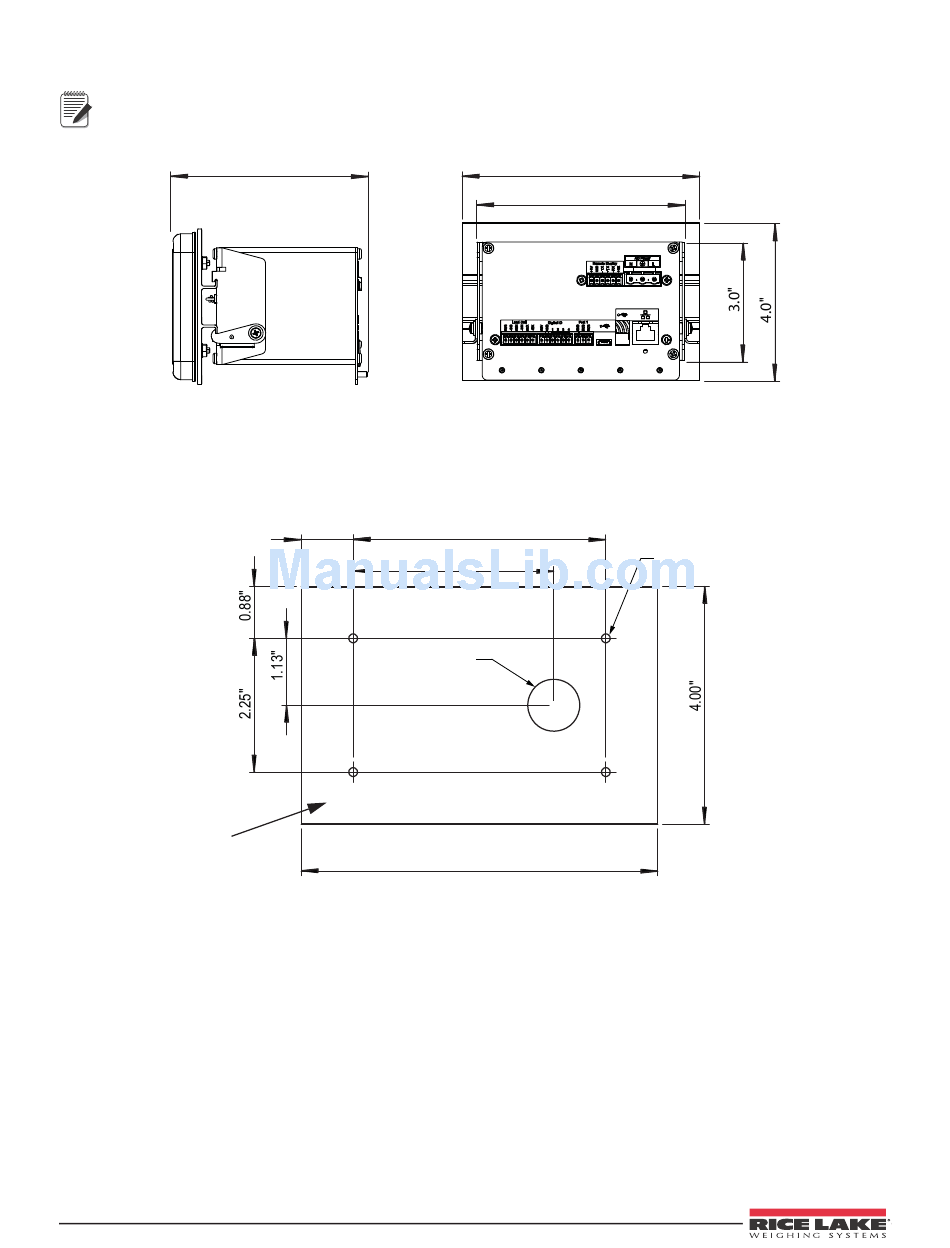

Figure 2-1. 880 Panel Mount Dimensions
0.88 "
3.38 "
7/8 " Ø
Figure 2-2. Pattern for Cutting Holes
6.0 "
5.3 "
4.25 "
6.00 "
5/32 " Ø
