DORSODURO 1200 ABS - ATC

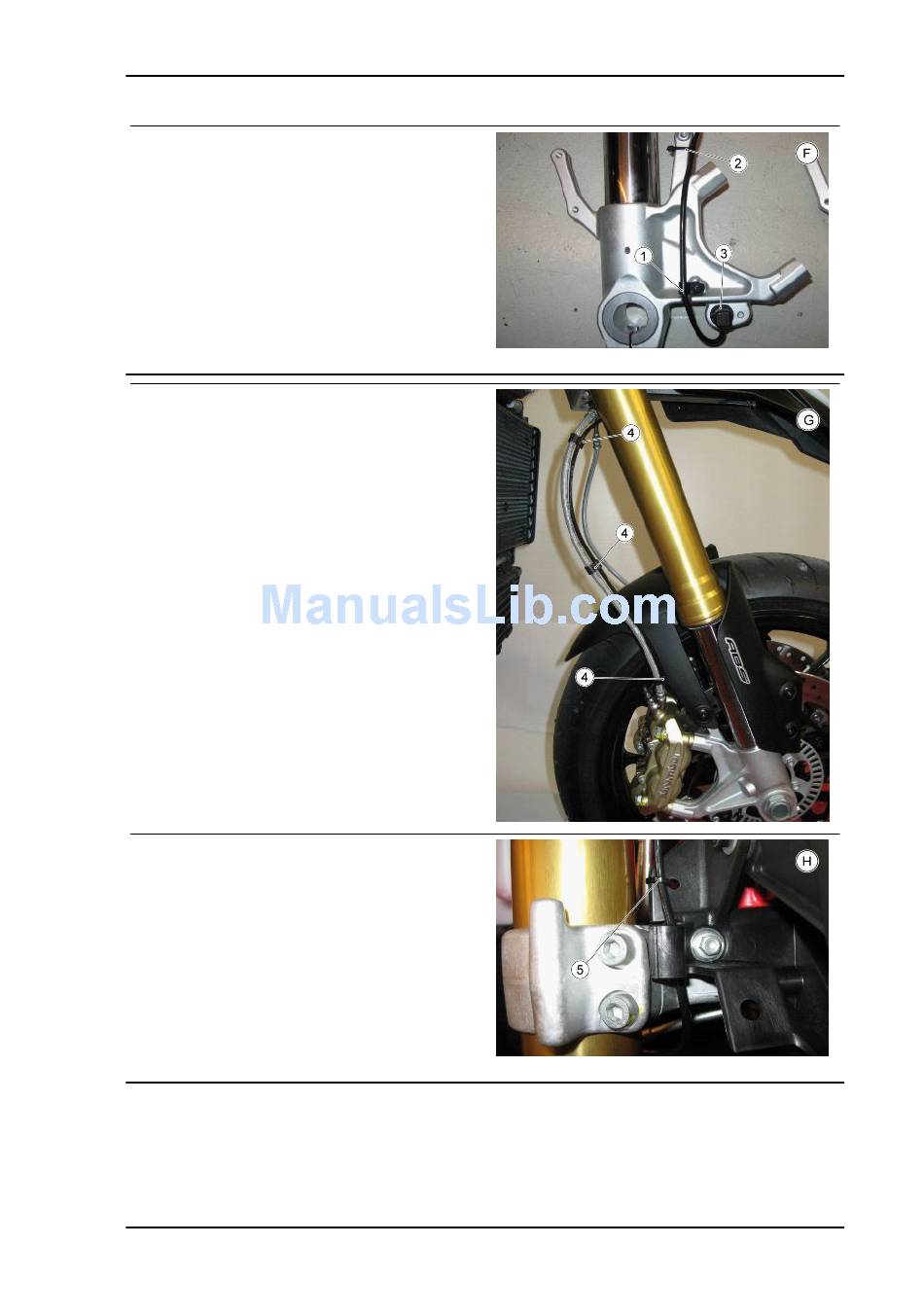

TABLE F - Front speed / ABS sensor cable
1. Hose clamps
2. 2.5x160 mm (0.01x6.30 in) Clamps
3. M4x6 TCB screw
TABLE G - Front speed / ABS sensor cable
4. Cable grommet
TABLE H - Front speed / ABS sensor cable
5. 2.5x160 mm (0.01x6.30 in) Clamps
email: info@motomatrix.co.uk
Electrical system
ELE SYS - 95
