Adding a drive enclosure

Installing the rail kits

Procedure
1. Identify the rack locations for the enclosures.

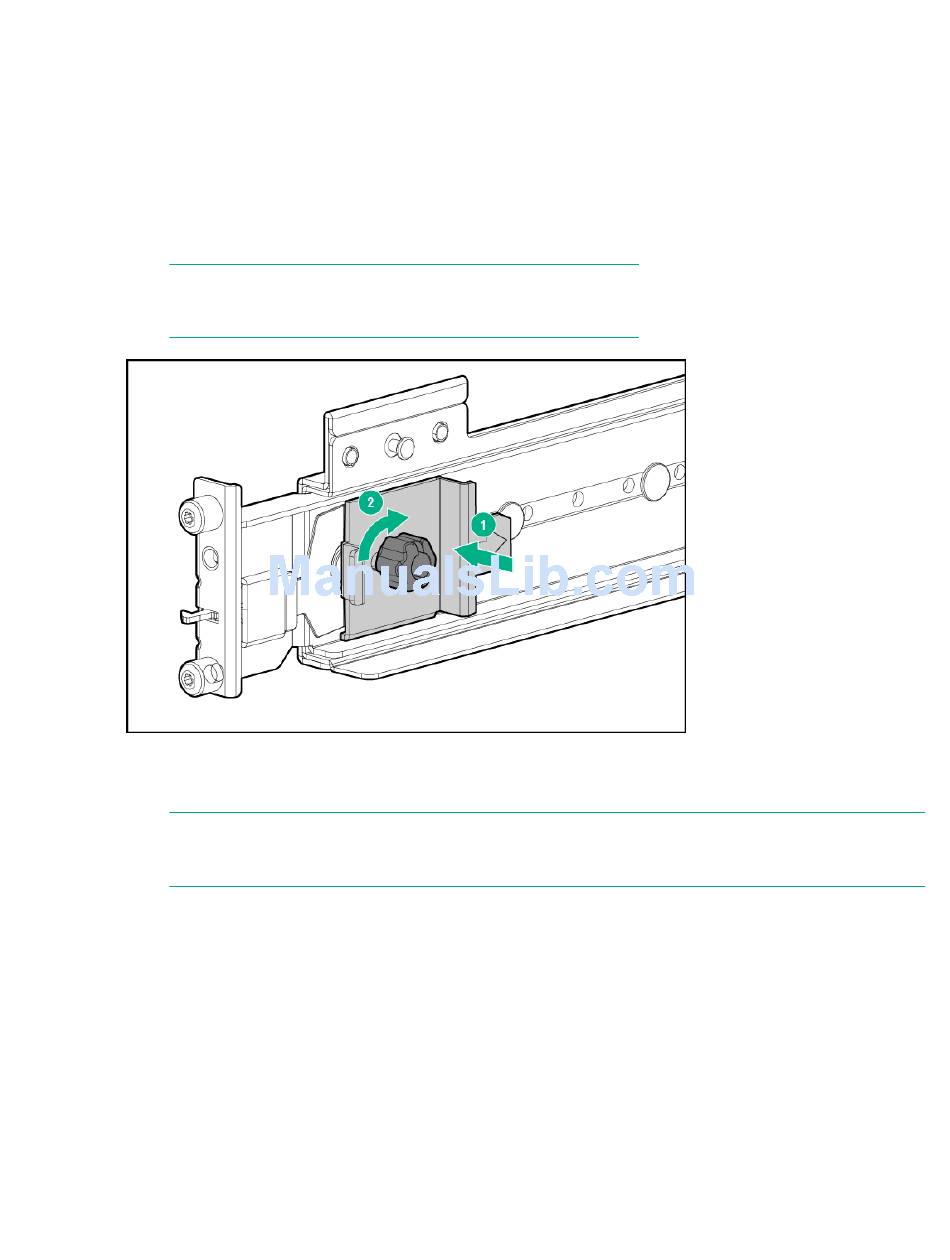

2. Loosen the back bracket on the standard rail kit to accommodate the enclosure. Attach the rear hold down
brackets by sliding the tab with the arrow pointed forward (1) into the corresponding slot on the left and
right side of the rear of the chassis. Use the black headed thumb screw to loosely secure the rail in the
second hole from the rear (2).
NOTE:
It is easier to make this adjustment prior to mounting the rails.
3. Position the left and right rack rails at the desired 'U' position in the rack, adjusting the rails to fit the rack,
as needed. The front and rear bottom edges of the rails must align with the bottom of the EIA boundary in
the lowermost 'U'.
NOTE:
Rails are marked L and R with an arrow indicating the direction in which the rail should be installed.
4. Use guide pins to align the shelf mount kit to the EIA column holes.
5. To engage the rail to the rear of the rack, push the rail toward the back of the rack until the spring hook
snaps into place.
Adding a drive enclosure 25
