1

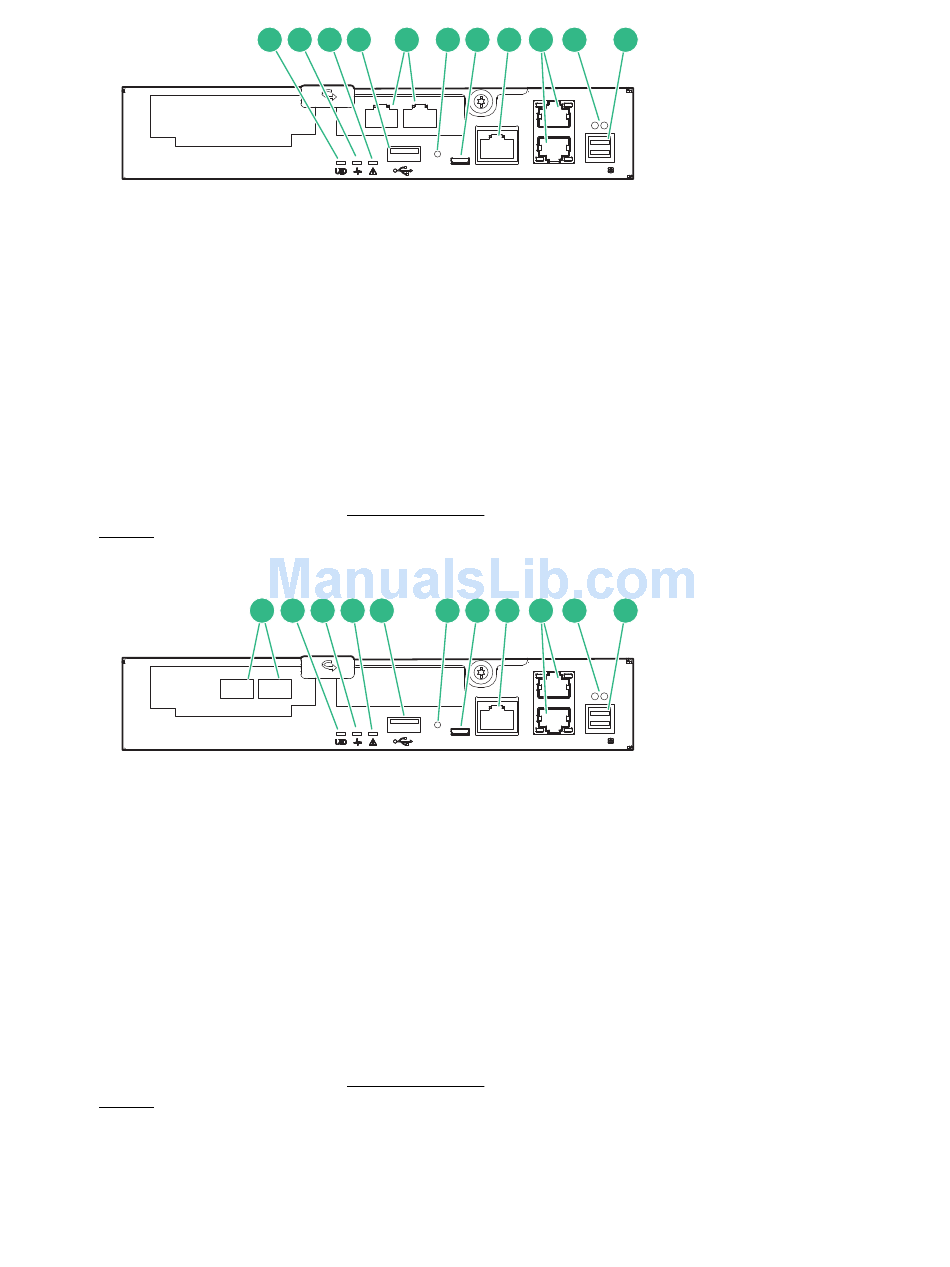

Figure 7: HPE StoreVirtual 3200 Storage 10GBase-T controller module (2 port)
1. Controller locate UID
2. Controller status LED
3. Controller fault LED
4. USB type A port
5. 10GBase-T ports
6. Recovery/power button (See Recovery/Power
button on page 12).
1
Figure 8: HPE StoreVirtual 3200 Storage 8Gb/16 Gb Fibre Channel controller module (2 port)
1. 8 Gb/16 Gb Fibre Channel ports
2. Controller locate UID
3. Controller status LED
4. Controller fault LED
5. USB type A port
6. Recovery/power button (See Recovery/Power
button on page 12).
2
3
4
5
6
2
3
4
5
6
7
8
9
10
11
7. Service port (Micro-B USB)
8. Management port (MGMT)
9. 1 GbE ports
10. Data port status LEDs
11. SAS data port to optional drive enclosure (DP-1)
7
8
9
10
11
7. Service port (Micro-B USB)
8. Management port (MGMT)
9. 1 GbE ports
10. Data port status LEDs
11. SAS data port to optional drive enclosure (DP-1)
Product overview
11
