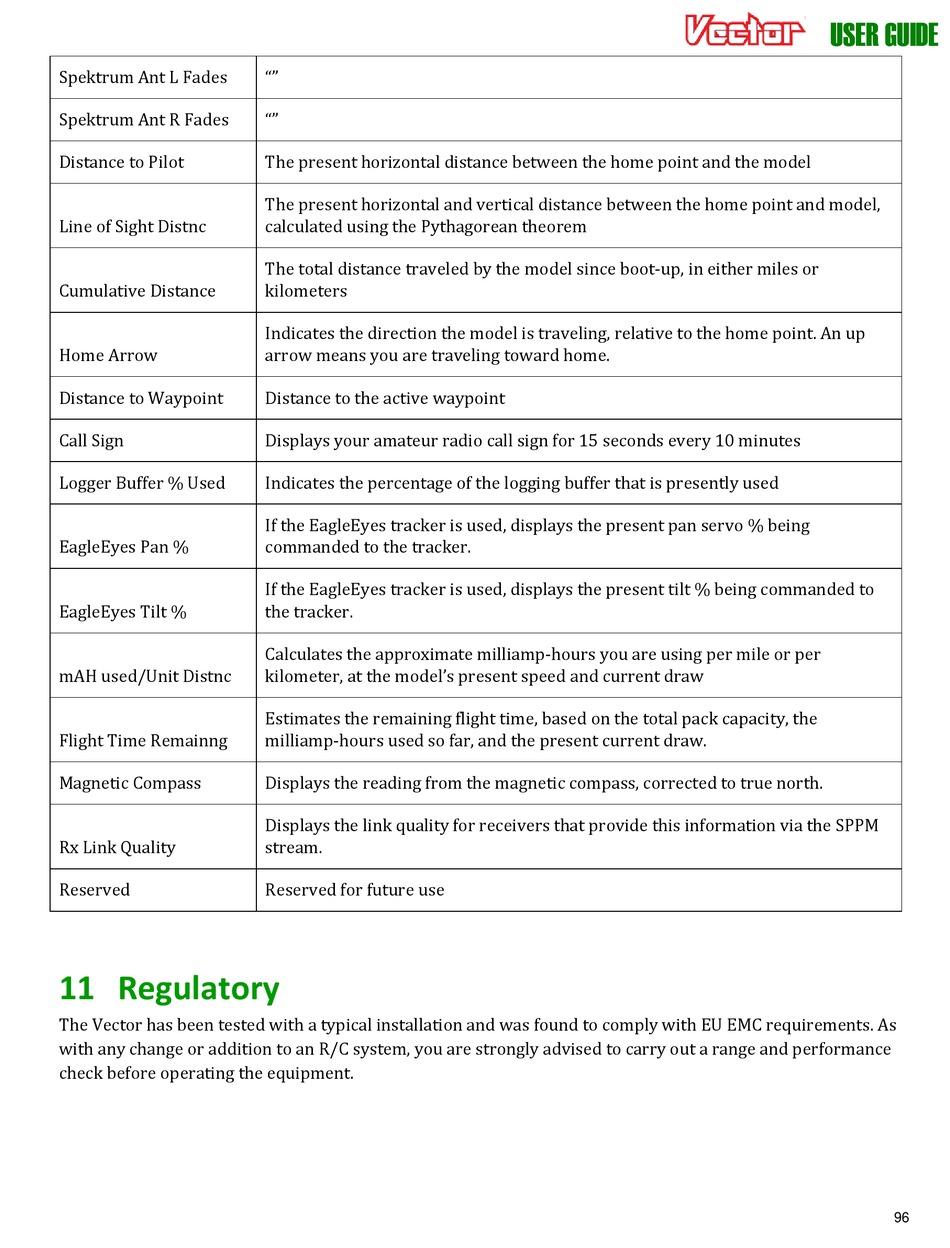

Spektrum Ant L Fades
Spektrum Ant R Fades
Distance to Pilot
Line of Sight Distnc
Cumulative Distance
Home Arrow
Distance to Waypoint
Call Sign
Logger Buffer % Used
EagleEyes Pan %
EagleEyes Tilt %
mAH used/Unit Distnc
Flight Time Remainng
Magnetic Compass
Rx Link Quality
Reserved

11 Regulatory

The Vector has been tested with a typical installation and was found to comply with EU EMC requirements. As
with any change or addition to an R/C system, you are strongly advised to carry out a range and performance
check before operating the equipment.
""
""
The present horizontal distance between the home point and the model
The present horizontal and vertical distance between the home point and model,
calculated using the Pythagorean theorem
The total distance traveled by the model since boot-up, in either miles or
kilometers
Indicates the direction the model is traveling, relative to the home point. An up
arrow means you are traveling toward home.
Distance to the active waypoint
Displays your amateur radio call sign for 15 seconds every 10 minutes
Indicates the percentage of the logging buffer that is presently used
If the EagleEyes tracker is used, displays the present pan servo % being
commanded to the tracker.
If the EagleEyes tracker is used, displays the present tilt % being commanded to
the tracker.
Calculates the approximate milliamp-hours you are using per mile or per
kilometer, at the model's present speed and current draw
Estimates the remaining flight time, based on the total pack capacity, the
milliamp-hours used so far, and the present current draw.
Displays the reading from the magnetic compass, corrected to true north.
Displays the link quality for receivers that provide this information via the SPPM
stream.
Reserved for future use
USER GUIDE
96
