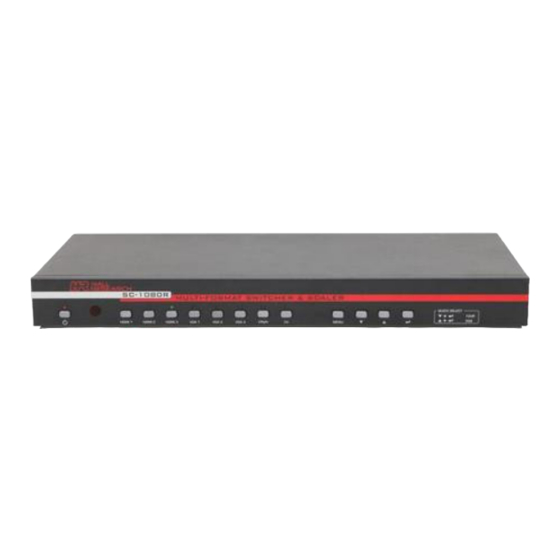

Hall Research Technologies SC-1080R User Manual

Multi-format switcher & scaler
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

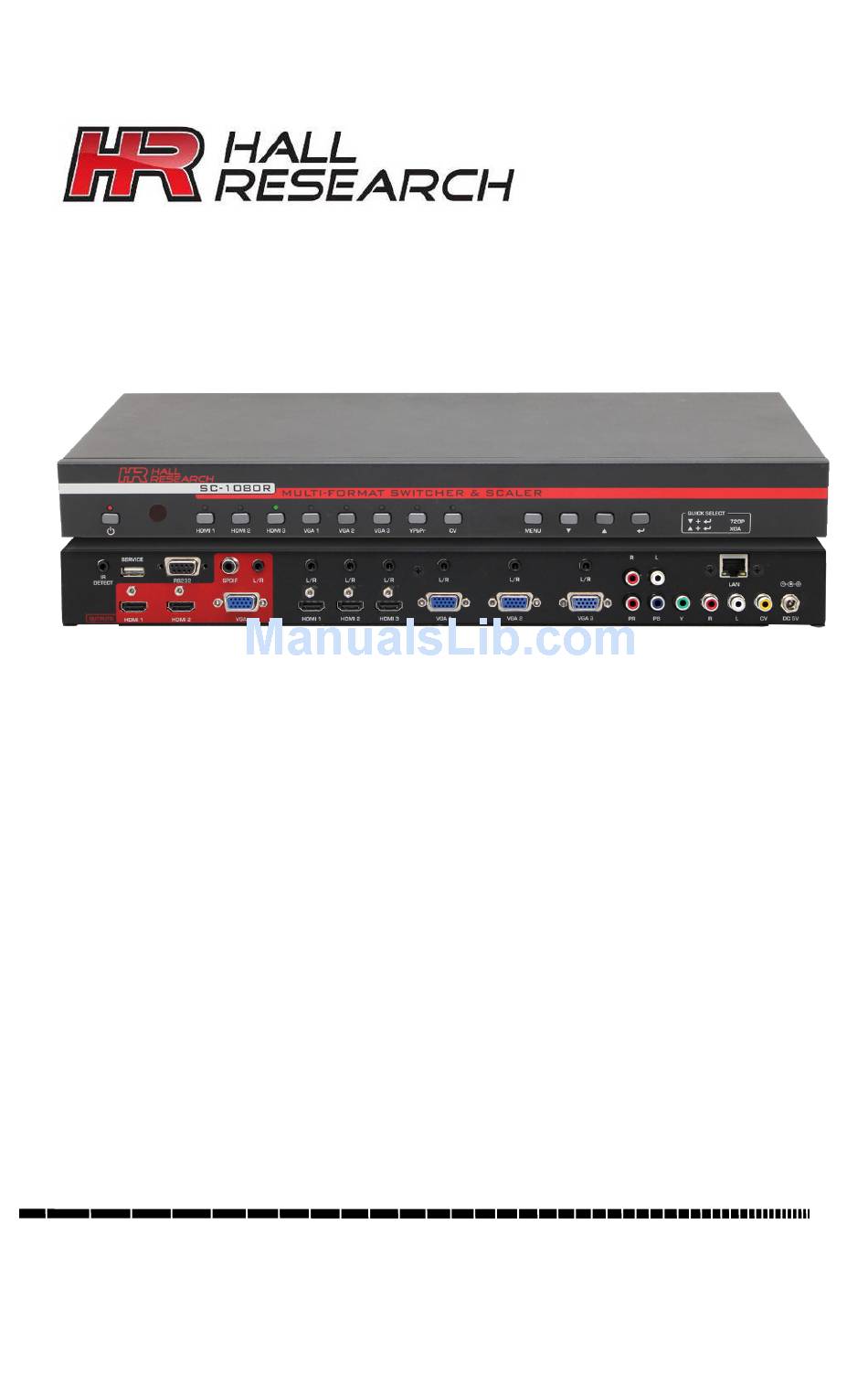

Multi-Format Switcher & Scaler
Switch and Scale among 8 AV inputs to 3 Simultaneous Outputs
Control via Front Panel, IR Remote, RS-232, and IP (WebGUI & Telnet)
CUSTOMER
SUPPORT
INFORMATION
SC-1080R
Order toll-free in the U.S. 800-959-6439
FREE technical support, Call 714-641-6607 or fax 714-641-6698
Mail order: Hall Research, 1163 Warner Ave. Tustin, CA 92780
Web site: www.hallresearch.com E-mail: info@hallresearch.com
User's Manual
UMA1247 Rev A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SC-1080R and is the answer not in the manual?

Questions and answers

Related Manuals for Hall Research Technologies SC-1080R

Summary of Contents for Hall Research Technologies SC-1080R

  • Page 1 User’s Manual SC-1080R Multi-Format Switcher & Scaler Switch and Scale among 8 AV inputs to 3 Simultaneous Outputs Control via Front Panel, IR Remote, RS-232, and IP (WebGUI & Telnet) UMA1247 Rev A CUSTOMER Order toll-free in the U.S. 800-959-6439...

  • Page 3: Table Of Contents

    Model SC-1080R Contents 1.0 Introduction .................... 2 1.1 General ....................2 1.2 Features ....................2 2.0 Installation ....................2 2.1 Connection Block Diagram ..............3 2.2 Package Contents ................... 3 3.0 Configuration & Operation ..............4 3.1 Front Panel ....................4 3.2 Rear Panel ....................

  • Page 4: Introduction

    1.0 Introduction 1.1 General Thank you for purchasing Hall Research’s SC-1080R. The SC-1080R can switch and scale among 8 AV inputs (3 HDMI, 3 VGA, 1 YPbPr, and 1 Composite Video). It provides 3 simultaneous outputs (2 HDMI, 1 VGA). All outputs show the selected input.

  • Page 5: Installation

    Model SC-1080R 2.0 Installation 2.1 Connection Block Diagram The output of the SC-1080R can be connected to any HDMI™ and VGA compatible LCD, Projector, or Plasma display by using the appropriate cable. 2.2 Package Contents (1) Model SC-1080R (1) 5V 3A DC Universal Power Supply (Do Not Substitute)

  • Page 6: Configuration & Operation

    Multi-Format Switcher & Scaler 3.0 Configuration & Operation The video scaler accepts both TV and PC inputs and scales them to your desired high resolution format output. The TV inputs are composite video (CV), YPbPr input (3 RCA connectors), PC (HD15) and HDMI™. 3.1 Front Panel Power Button: Press to switch the device ON.
  • Page 7 Model SC-1080R DC 5V: Use only the 5V 3A DC power input (center positive 2.1 mm jack) supplied with the unit to power ON the device. INPUTS Video (CV): Use a Composite video cable to connect the composite video output of the source equipment to the connector labeled “CV”...

  • Page 8: Osd Menu

    Multi-Format Switcher & Scaler OUTPUTS HDMI™ 1&2: Connect to an HDMI™ display or an AV receiver. VGA: Connect to a monitor for video output. For HD output resolutions from 480p~1080p, use the supplied HD15 to 3- RCA Cable. SPDIF: Connect to an amplifier or speakers for digital audio output.
  • Page 9 Model SC-1080R Top Menu Sub-Menu Menu Menu DISPLAY 640x480@60, 800x600@60, 1024x768@60, 1280x768@60 1360x768@60, 1280x720@60, 1280x800@60, 1280x1024@60, 1440x900@60, 1400x1050@60, 1680x1050@60, 1600x1200@60, OUTPUT 1920x1080@60, 1920x1200@60, 1280x720p@60, 1920x1080i@60, 1920x1080p@60, 640x480p@60 720x576p@50, 1280x720p@50, 1920x1080i@50, 1920x1080p@50 OVER SCAN, FULL, FOLLOW SIZE INPUT, PAN SCAN, LETTER...

  • Page 10: Ir Remote

    Multi-Format Switcher & Scaler Top Menu Sub-Menu Menu Menu SOURCE(HDMI AUTO, EXT. ONLY) SETUP FACTORY RESET KEY LOCK OFF, ON OFF, ON POWER SAVE DHCP, STATIC IP MODE SET STATIC IP IP ADDRESS 0.0.0.0~255.255.255.255 SUBNET MASK 0.0.0.0~255.255.255.255 DEF. GATEWAY 0.0.0.0~255.255.255.255 BLACK, BLUE FREERUN COLOR INFORMATION...

  • Page 11: Setting The Output Resolution

    Model SC-1080R 8. CV: Select the composite input. 9. COMP: Select the YPbPr input. 10. EXIT: Select to exit OSD menu. 11. MENU: Select to show OSD. 12. OK: Select to confirm a selection. 13. UP/DOWN/LEFT/RIGHT: Move in menu or change selection.

  • Page 12: Serial And Telnet Control

    4. Factory reset can be done via Web GUI, IR remote, RS232 or Telnet command. 4.0 Serial and Telnet Control The video input selection and signal parameter settings for the SC-1080R can be controlled via an external control system by using the Telnet (Port 23) or RS-232 port on the unit.
  • Page 13 Model SC-1080R Command Response Description S OUTPUT 0~21 S OUTPUT 0~21 SET OUTPUT RESOLUTION 0=640x480@60 11= 1600x1200@60 1= 800x600@60 12= 1920x1080@60 2=1024x768@60 13= 1920x1200@60 3=1280x768@60 14= 640x480p@60 4= 1360x768@60 15= 1280x720p@60 5= 1280x720@60 16= 1920x1080i@60 6= 1280x800@60 17= 1920x1080p@60 7= 1280x1024@60 18= 720x576p@50...

  • Page 14: Web Gui Operation

    Commands may be entered as uppercase or lowercase. • 5.0 Web GUI Operation As shipped from the factory (or after factory default reset), the SC-1080R IP address is set for DHCP, meaning that it does not have an assigned static...

  • Page 15: Troubleshooting

    6.1 Contacting Hall Research If you determine that your SC-1080R is malfunctioning, do not attempt to repair the unit. Instead, contact Hall Research Technical Support at 714- 641-6607. To return the unit to Hall Research you must first get a Return Authorization (RMA) number.

  • Page 16: Specifications

    Multi-Format Switcher & Scaler 7.0 Specifications Input Ports 3 x HDMI, 3 x VGA, 1 x Component, 1 x Composite, 6 x 3.5mm audio, 2 x RCA (Analog stereo L/R , 1 x IR IN, 1 x RJ45, 1 x USB (Service only) Output Ports 2 x HDMI, 1 x VGA or YPbPr(compatible HD15 to 3-RCA cable), 1 x SPDIF, 1 x 3.5mm audio...

  • Page 17: Supported Input Resolutions

    Model SC-1080R 8.0 Supported Input Resolutions Input Resolution Component HDMI  NTSC/PAL 640x480 (VGA) @60/72/75/85   800x600 (SVGA)@50/60/72/75   1024x768 (XGA)@60/70/75   1280x800 (WXGA)@60   1440x900 (WXGA+)@60   1600X900@60   1280x1024 (SXGA)@60/75  ...

  • Page 18: Supported Output Resolutions

    Multi-Format Switcher & Scaler 9.0 Supported Output Resolutions Output Resolution HDMI 640x480 (VGA) @60   800x600 (SVGA)@60   1024x768 (XGA)@60   1280x768@60   1280x800 (WXGA)@60   1360x768@60   1440x900 (WXGA+)@60   1600X900@60  ...
  • Page 20 © Copyright 2016. Hall Research, Inc. All rights reserved. 1163 Warner Ave., Tustin, CA 92780 Ph: (714)641-6607...
