USB 2.0 and 4K Video Support
CUSTOMER
SUPPORT
INFORMATION
KVM-HDU-4

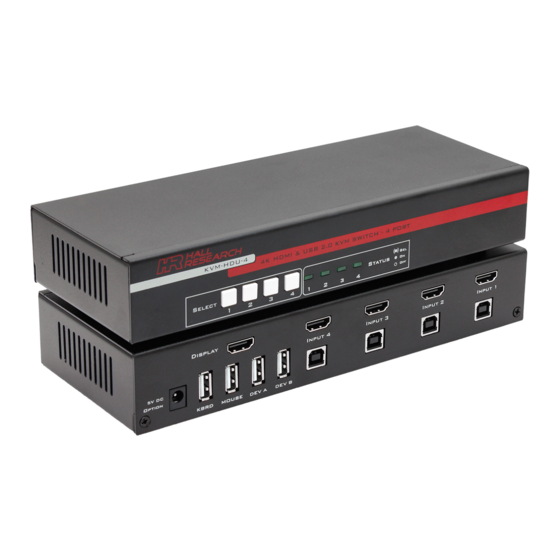

4-Port HDMI KVM Switch
Order toll-free in the U.S. 800-959-6439
FREE technical support: 714-641-6607 or support@hallresearch.com
Hall Research, 1163 Warner Ave. Tustin, CA 92780
www.hallresearch.com
User's Manual
with
UMA1273 Rev NC
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hall Research Technologies KVM-HDU-4
Summary of Contents for Hall Research Technologies KVM-HDU-4

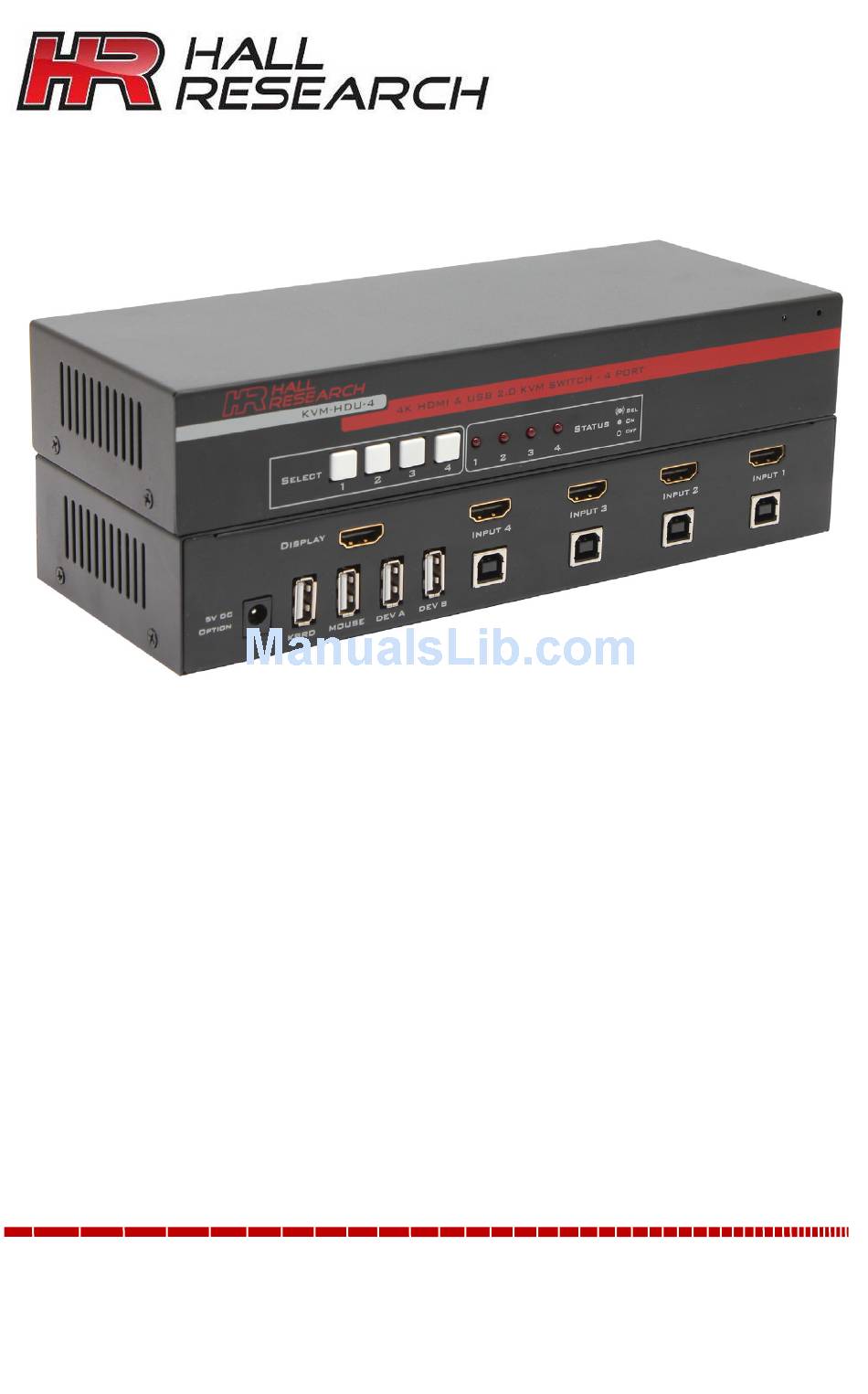

- Page 1 User’s Manual KVM-HDU-4 4-Port HDMI KVM Switch with USB 2.0 and 4K Video Support UMA1273 Rev NC Order toll-free in the U.S. 800-959-6439 FREE technical support: 714-641-6607 or support@hallresearch.com CUSTOMER Hall Research, 1163 Warner Ave. Tustin, CA 92780 SUPPORT www.hallresearch.com...
- Page 2 Table of Contents KVM-HDU-4 1.0 Introduction 2.0 Features 3.1 HotKey Sequences 3.0 Setup and Operation 4.0 Troubleshooting 5.0 Specifications TRADEMARKS USED IN THIS MANUAL Hall Research and its logo are trademarks of Hall Research. Any other trademarks mentioned in this manual are acknowledged as the property of the trademark owners.
-
Page 3: Setup And Operation
4-Port KVM Switch with 4K HDMI & USB 2.0 The KVM-HDU-4 is a compact 4 port HDMI KVM Switch with USB 2.0. The 1.0 Introduction switch offers advanced features such as ultra high resolution video support (2560x1440, 2560x1600, and 3840x2160). The switch provides keyboard and mouse emulation for all 4 PC inputs. - Page 4 KVM-HDU-4 Front and Rear Panels 1. Press to select inputs 2. Status of inputs: Off = No input detected (or connected PC is off) Solid On = Input detected (or connected PC is on) • Blinking = Current selection •...
-
Page 5: Troubleshooting
4-Port KVM Switch with 4K HDMI & USB 2.0 If you are experiencing problems getting the switch to work properly, 4.0 Troubleshooting please use the following troubleshooting suggestions. Make sure that all of the connections are solid. Check the LED’s on the front panel. ... -
Page 6: Specifications
KVM-HDU-4 5.0 Specifications Standard HDMI Video Number of inputs Bandwidth 300 MHz pixel clock or 10.2 Gbps video data rate Max Resolution 3840 x 2160 @ 60Hz (with 4:2:0 YUV color sampling) 3840 x 2160 @ 30Hz (with 4:4:4 YUV color sampling) Standard Version 2.0... - Page 8 © Copyright 2018. Hall Research, Inc. All rights reserved. 1163 Warner Ave., Tustin, CA 92780 Ph: (714)641-6607...
