  • Page 1 ’ ’ Model MC1208 8-channel KVM switch with OSD & 1RU Kit Control 8 PC's from one Monitor, keyboard and mouse UMA 1104 Rev B © Copyright 2010 Hall Research Inc. All rights reserved. 1163 Warner Ave Tustin, CA 92780, Ph: (714)641-6607, Fax -6698...
  • Page 2 Table of Contents INTRODUCTION......................1 FIGURE 1 C ............1 ONNECTOR UNCTIONS ON ANEL ........................... 1 ENERAL ................. 1 UPPORTED YSTEMS AND ERIPHERALS .......................... 1 EATURES SETUP..........................1 2 CW-1208-10 C PC ......... 1 IGURE ABLE FOR CONNECTION TO EACH OPERATION ........................

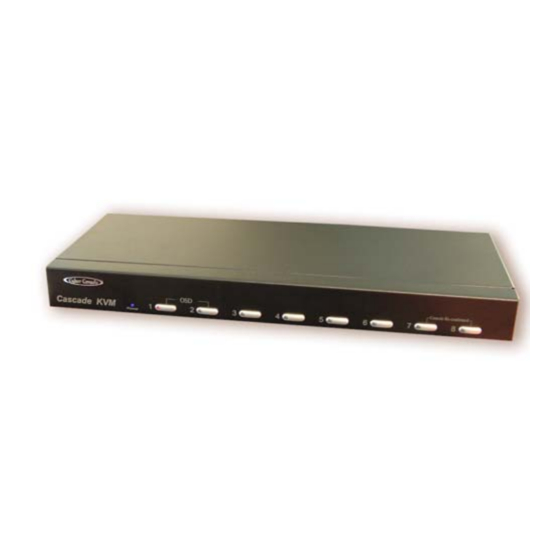

  • Page 3 8 CHANNEL KVM SWITCH WITH OSD & 1 RU KIT Introduction MC1208 allows 1 monitor, 1 keyboard, and 1 mouse to control 8 different PC’s or servers. By chaining more of these units up to 128 PCs can be controlled from one user station.
  • Page 4 There are two ways to switch to among PCs. The first way is to simply press the button for the desired PC on the front panel of the MC1208. You can not switch to a PC that is not connected or turned off.
  • Page 5 8 CHANNEL KVM SWITCH WITH OSD & 1 RU KIT On Screen Display • Activation Press the Numlock twice or the Port Selection Switches 1 and 2 on the front panel to enter the OSD. Note: If you have modified the Hot Key for starting the OSD and are unable to enter the OSD by pressing Numlock, then you can start the OSD by using the Port Selection Switch first, and then press F9 to enter into the System Setting to modify the options of the OSD Entry Hot Key.
  • Page 6 MODEL MC1208 This field provides the information of the currently connected PC. As shown in the figure above 03, refers to the Port Number or the Master; 04 refers the Port Number of the Slave; and Mail Ser 4 is the name of this PC defined by the user.
  • Page 7 8 CHANNEL KVM SWITCH WITH OSD & 1 RU KIT F1: Information; provides the model name and F/W version information F4 : OSD Position;You can enter the OSD position to make adjustments; We recommend you to use the same the resolution for all computer displays, and use this function again to adjust the OSD position , You Can use the Up, Down ,Left or Right keys on the keyboard or a mouse to move.
  • Page 8 © Copyright 2010. Hall Research Inc. All rights reserved 1163 Warner Ave Tustin, CA 92780, Ph: (714)641-6607, Fax -6698...
