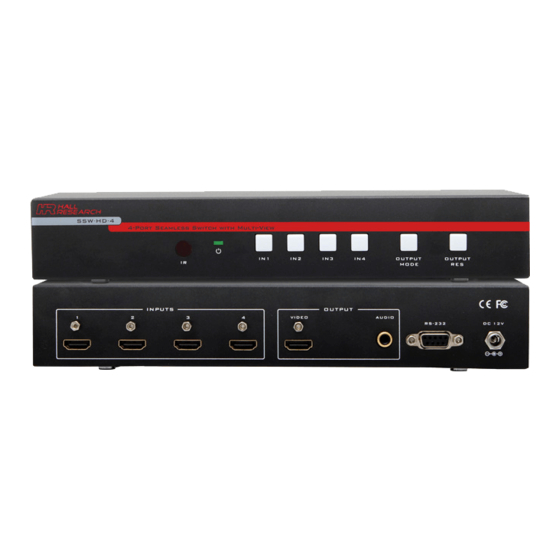

4 input hdmi seamless switcher

Advertisement

Quick Links

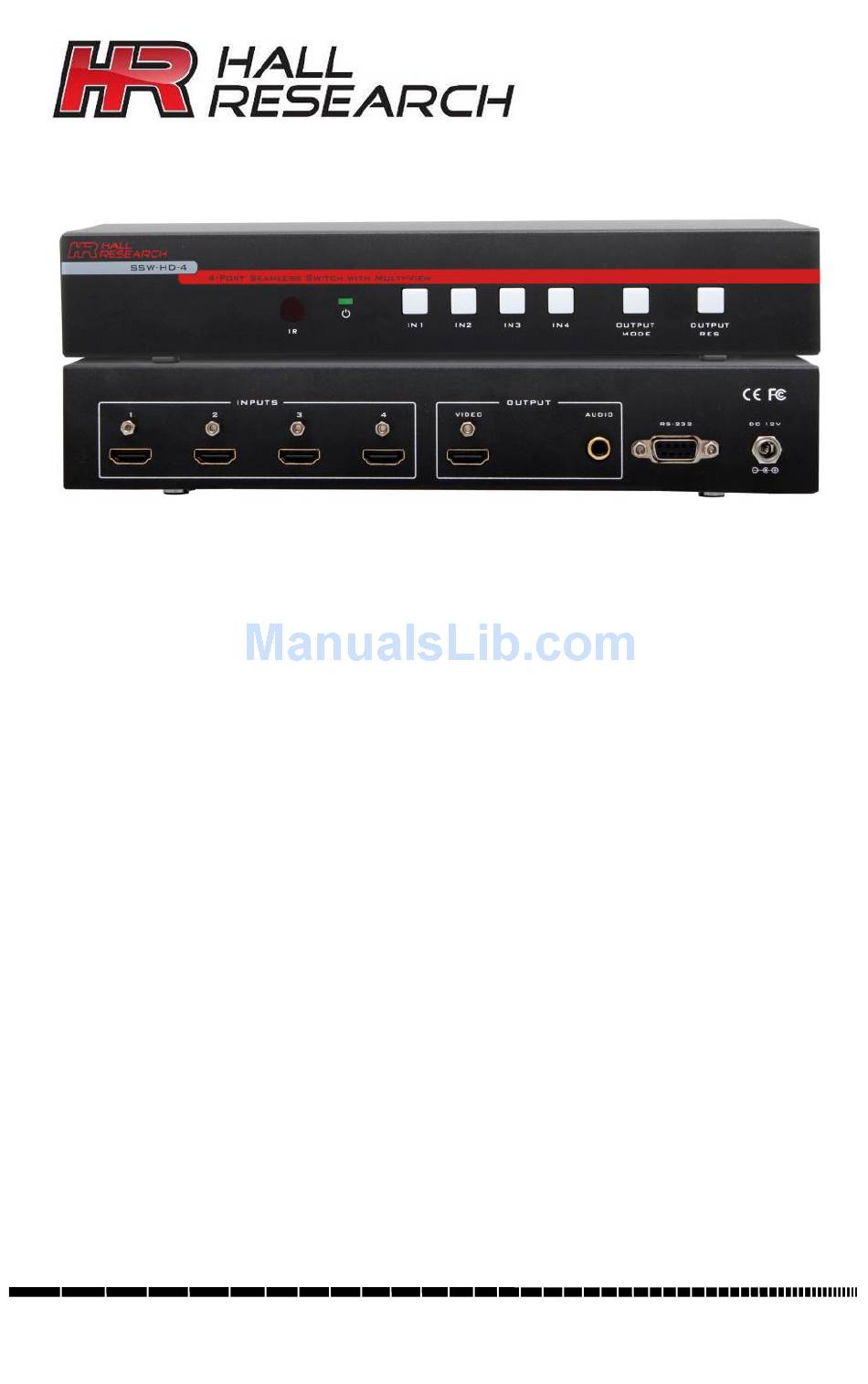

User's Manual
SSW-HD-4
4 input HDMI Seamless Switcher
with
Real-time Multi-view Modes
Front Panel, RS-232 and IR Control
SPDIF Audio Output
Free Windows® GUI
UMA1252 Rev 2
© Copyright 2017. Hall Research, Inc. All rights reserved.
1163 Warner Ave Tustin, CA 92780, Ph: (714)641-6607, Fax (714)641-6698

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SSW-HD-4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Hall Research Technologies SSW-HD-4

  • Page 1 User’s Manual SSW-HD-4 4 input HDMI Seamless Switcher with Real-time Multi-view Modes Front Panel, RS-232 and IR Control SPDIF Audio Output Free Windows® GUI UMA1252 Rev 2 © Copyright 2017. Hall Research, Inc. All rights reserved. 1163 Warner Ave Tustin, CA 92780, Ph: (714)641-6607, Fax (714)641-6698...
  • Page 2: Table Of Contents

    4-port Seamless-Switch with Multi-view Table of Contents 1.0 INTRODUCTION ................... 3 2.0 FEATURES ...................... 4 2.1 Package Contents ....................4 3.0 PRODUCT DESCRIPTION ................4 3.1 Front Panel Layout ....................4 3.2 Rear Panel Layout ....................5 3.3 IR Remote Controller ..................... 5 3.4 Multi View Layouts ....................
  • Page 3: Introduction

    SSW-HD-4 1.0 Introduction The SSW-HD-4 is a 4x1 HDMI seamless video switch with multi-view capabilities where all inputs can be shown in real-time (60 frames per second) on the output in a variety of modes. When only one input is shown, switching between different inputs is completely seamless (with zero delay transition).
  • Page 4: Features

     De-embedded S/PDIF audio out with RCA Connector  Supports Locking HDMI Cables  Includes Universal Power Supply w/ Locking DC Connector 2.1 Package Contents Qty (1) SSW-HD-4 Seamless Switcher Qty (1) Locking 12V DC Universal Power Supply Qty (1) IR Remote Control Qty (1) User’s Manual Qty (1) Rack mount ears 3.0 Product Description...
  • Page 5: Rear Panel Layout

    SSW-HD-4 3.2 Rear Panel Layout HDMI Inputs Connect the HDMI video sources using HDMI cables. Use HR HDMI Locking cable for secure locking. HDMI Output Connect the HD Display using HDMI cable. Audio Output Use RCA connector to connect to audio devices.
  • Page 6: Multi View Layouts

    4-port Seamless-Switch with Multi-view If the SSW-HD-4 needs to be installed in a standard 19” rack, you can use the included rack ears. 3.4 Multi View Layouts SSW supports three different Multiview modes. The Output modes can be configured using Front panel, IR Remote Controller PC-GUI and RS-232. When an input is selected in Multiview mode it is considered as a primary input and the other inputs dynamically arrange themselves in the layout as shown below.
  • Page 7: Locking

    Output Resolution button for 7 seconds or hold until you see all the inputs buttons blink once. 3.8 PC-GUI The SSW-HD-4 can be controlled using a free PC GUI. The PC-GUI uses the RS- 232 port on the device. Windows® GUI is available on the product’s webpage. PC-GUI 4.0 Installation...
  • Page 8: Rs-232

    The Serial port on the SSW is always active. When the changes are made from the front panel or using IR controller the corresponding Serial commands are sent over RS-232 as a response. This allows easy integration of SSW-HD-4 with 3rd party controllers.
  • Page 9 SSW-HD-4 S OUTPUT Set the Output resolution. n = 1 -- (1080p) (Default) n = 2 --(720p) -No Response- n = 3 --(1080I) n = 4 --(1024x768) n = 5 -- (1360x768) E.g. S OUTPUT 1 Set the Output resolution to 1080p...
  • Page 10: Troubleshooting

    There are no field serviceable parts or circuits in the device. Opening the unit will void the warranty. 5.1 Contacting Hall Research If you determine that the SSW-HD-4 is malfunctioning, do not attempt to repair the unit instead, contact Hall Research Technical Support at 714-641-6607 or support@hallresearch.com.
  • Page 11: Specifications

    SSW-HD-4 6.0 Specifications Video Resolution Output: 1080p@60Hz, 1080i@60Hz, 720p@60Hz, 1024x768@60Hz, 1360x768@60Hz Input: 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@24/30/50/60Hz, 800x600@60Hz, 1024x768@60, 1280x720@60Hz, 1920x1080@60Hz Video Bandwidth Single-link to 165 MHz (4.95 Gbps) Audio Standards PCM [2/5.1/7.1]CH, Dolby Digital 2~5.1CH, DTS 2~5.1CH, Dolby...
  • Page 12 © Copyright 2017. Hall Research, Inc. All rights reserved. 1163 Warner Ave., Tustin, CA 92780 Ph: (714)641-6607...
