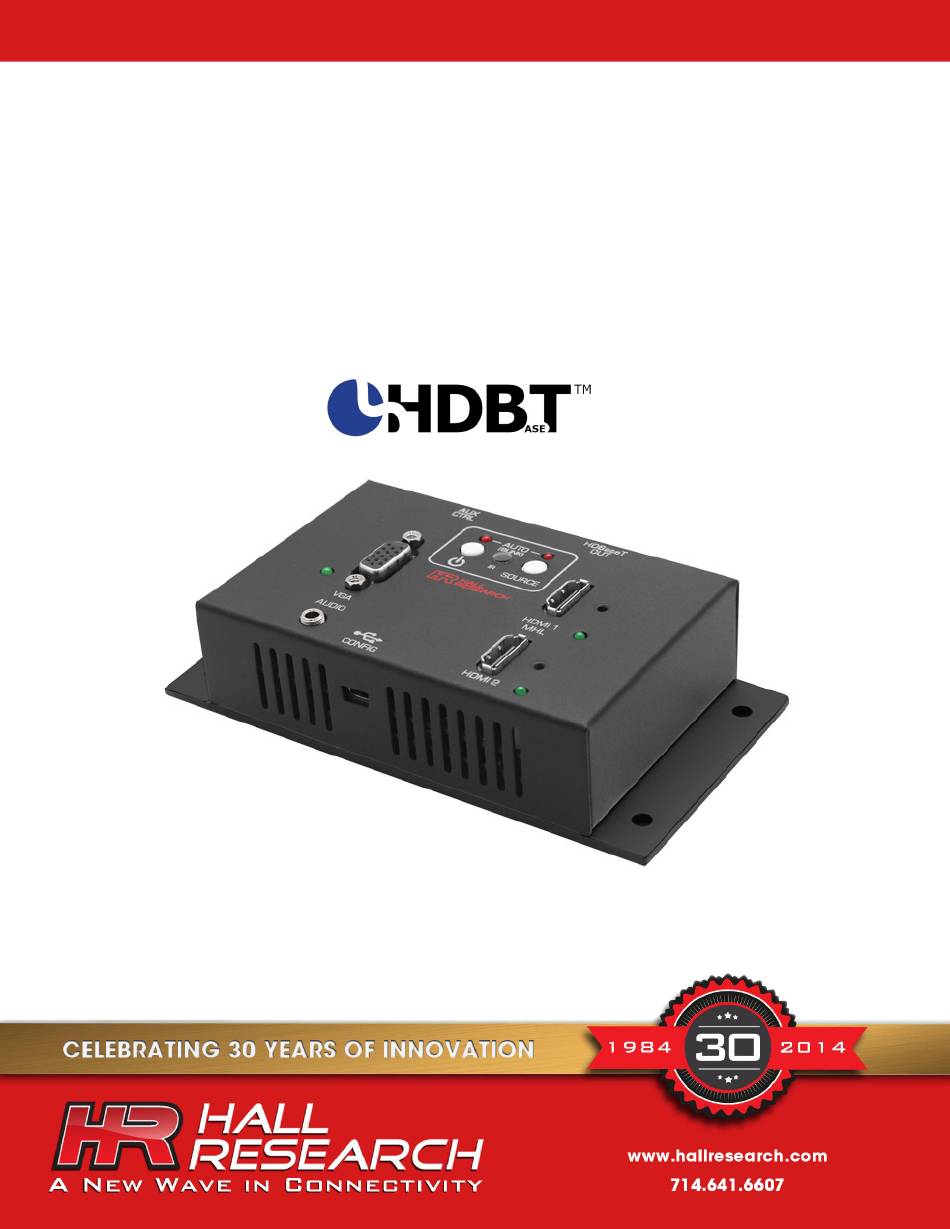

- Page 1 Quick Start Guide VGA / HDMI / MHL Auto-Switching Sender With Output UHBX-SW3-S QSG1239 Rev 1.0...

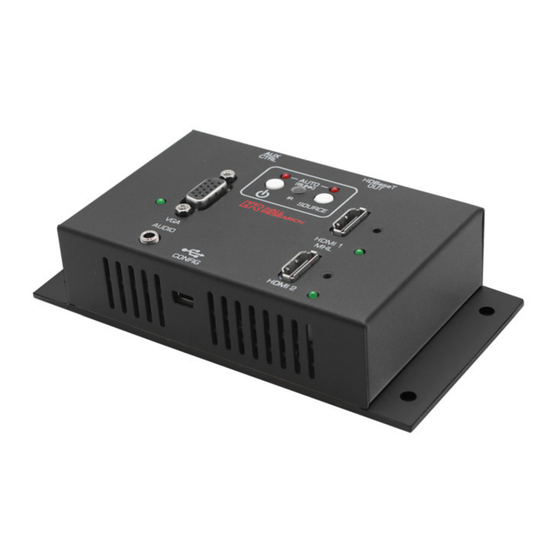

- Page 2 The Model UHBX-SW3-S is a video extender with 3 video inputs in a compact surface mountable form factor. The video inputs are: • Input 1 – HDMI or MHL (Mobile High-Definition Link ) • Input 2 – HDMI • Input 3 – VGA or YPbPr with separate audio...
- Page 3 First ensure that the Receiver power is off by unplugging the power supply from the Receiver. Then connect a Cat6 from the RJ45 HDBaseT Output of the extender to the Receiver. There are two RJ45's on the extender, so make sure to use the one labeled as HDBaseT Output. The Extender can be directly plugged in to displays or projectors with HDBaseT inputs.
- Page 4 The extender can be used to control the display on/off function (Power Command). The extender can store and send RS232 control commands to displays or projectors with RS232 control capability. The extender can extend IR signals, by pointing IR remote to the extender and connecting an IR emitter to the Receiver, however the extender also has limited capability to generate user defined IR commands and some popular IR protocols are supported.
- Page 5 As shipped from the factory the extender is in full manual mode. This means that you have to manually turn on the extender and also manually select the input source you want displayed. If you have defined a display Power On command, then the extender will issue that command at the same time it turns on.
- Page 6 The extender has the ability to detect video connections on its inputs and automatically switch to the connected input. Change the mode to "Auto Source" either from the button on the extender or using PC software thru the USB port. From the GUI software you can also lock the Auto Source mode (so it will stay in that mode permanently).
- Page 7 The extender can send power on/off commands to the display “ ” “ ” automatically based on sensing video on its selected input. In Auto Power Command mode when the extender detects video on the selected input it will issue an ON command to the screen, and if there is no video being detected, an OFF command will be issued after a user specified delay (default delay = 5 minutes).
- Page 8 The UHBX-SW3-S scales the VGA input to 720p or 1080p in order to eliminate compatibility issues with the myriad of VGA resolutions that may not be supported on most TV’s HDMI input. Scaling the VGA to 1080p (default) which is a standard HDTV resolution assures that there will be a perfect display regardless of the VGA signal source timing.
- Page 9 HDMI 1 input & selection indicator Auto Input Selection Indicator Supports MHL signal When lit (with a slow blink), the extender scans for active input HDMI 2 input & selection indicator Power button. Will turn panel on and off and issue corresponding commands to display.
- Page 10 HDBaseT Output. The extender requires PoH (power over HDBaseT), so the receiver has to be a PSE (power sourcing equipment) type, or a power inserter is needed. Mini-USB port for connection to a PC. A free GUI is available that can be used to configure the extender.
- Page 11 SW3-UI and SW3-UI- ® VOL. These keypads plug to the UHBX-SW3-S using a Cat5 cable and can be located up to 200 ft away at a convenient location. The SW3-UI duplicates all the controls and indicators that are on the extender. It is perfect for monitoring and controlling the system from a convenient spot instead of using the buttons on the UHBX-SW3-S extender.
- Page 12 © Copyright 2015 Hall Research, Inc. All rights reserved. 1163 Warner Ave., Tustin, CA 92780 Ph: (714)641-6607 Hall Research 714.641.6607 Page 12...
