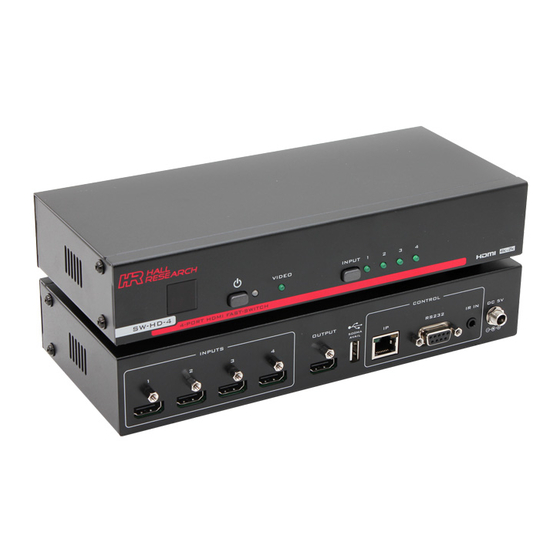

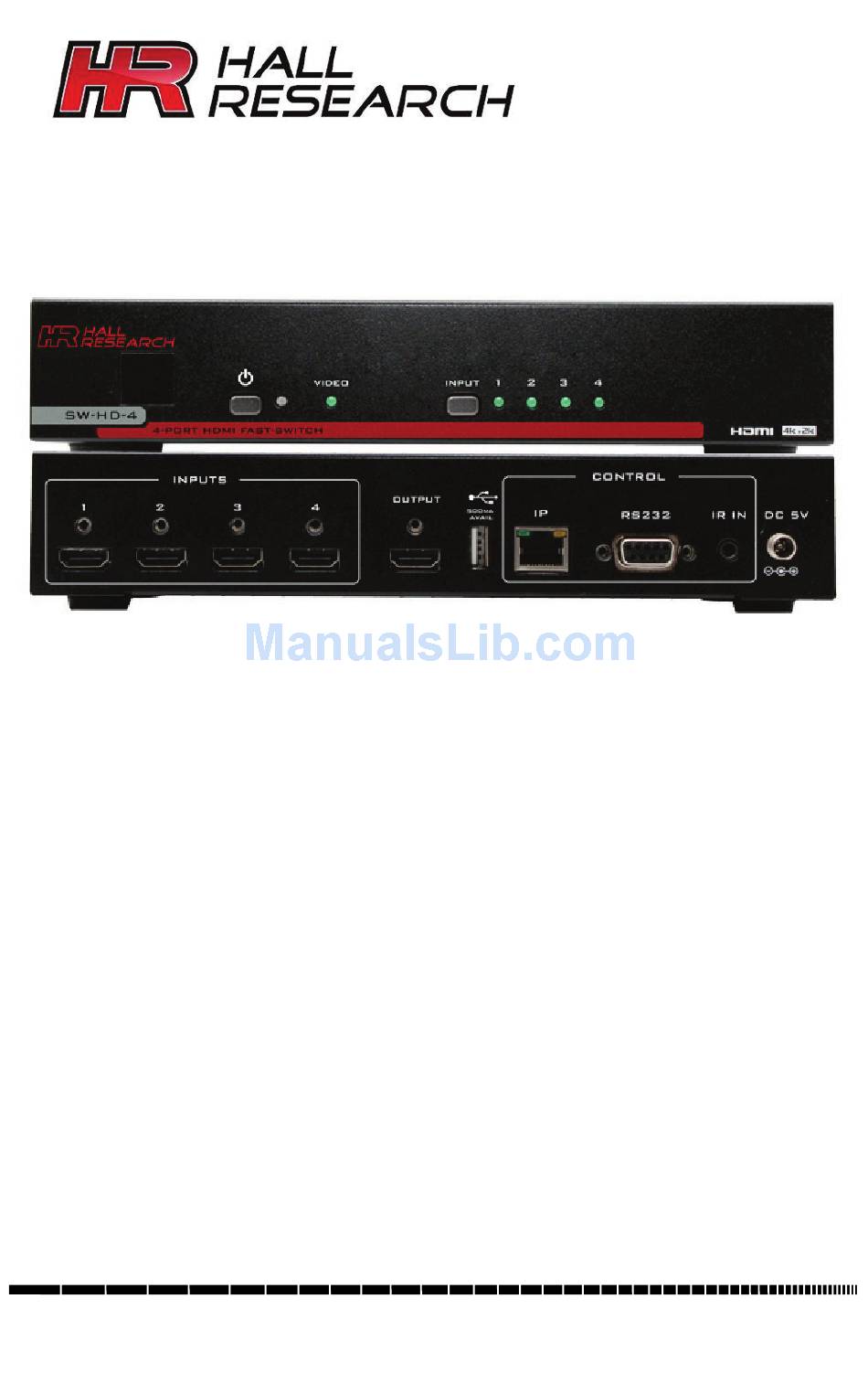

  • Page 1 User’s Manual SW-HD-4 HDMI Fast Switch with IP, RS-232 and IR Control Supports 4Kx2K UMA1232 Rev n/c © Copyright 2015. Hall Research, Inc. All rights reserved. 1163 Warner Ave Tustin, CA 92780, Ph: (714)641-6607, Fax (714)641-6698...
  • Page 2: Table Of Contents

    4-port HDMI Fast-Switch with IP Control Table of Contents 1.0 Introduction ....................4 2.0 Features ......................4 2.1 Package Contents ..................4 3.0 Installation ....................5 3.1 Configuration ..................6 4.0 Operation ...................... 6 4.1 RS232 and Telnet Commands .............. 6 4.2 WebGUI Operation ................
  • Page 3: Fcc Radio Frequency Interference Statement

    SW-HD-4 TRADEMARKS USED IN THIS MANUAL Hall Research and its logo are trademarks of Hall Research. Any other trademarks mentioned in this manual are acknowledged as the property of the trademark owners. FCC RADIO FREQUENCY INTERFERENCE STATEMENT This equipment generates, uses, and can radiate radio frequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer’s instructions, may cause interference to radio...
  • Page 4: Introduction

    This can be done using the web GUI or by sending RS-232 commands. The SW-HD-4 provides a USB type A port on the back for connection of USB flash devices for firmware upgrade. This USB connector provides 500 ma of power and can be used to power external devices such as Google’s Chromecast or Amazon’s...
  • Page 5: Installation

    POWER INPUTS RS232 Control Port INPUT LAN Control Port If the SW-HD-4 needs to be installed in a standard 19” rack, Hall Research offers a rack mount kit specifically for this purpose (part number F10511-Kit) F10511-Kit (required for rack mounting)
  • Page 6: Configuration

    4-port HDMI Fast-Switch with IP Control 3.1 Configuration • Connect all the video sources to the INPUT connectors on the back • Connect the display device to the OUTPUT connector on the back • Connect the Power Supply to the power input on the back •...
  • Page 7 SW-HD-4 Command Response Function FR<CR> Response= FR Unit settings are reset to factory default Power is ON Output is routed to Input 1 FRETH<CR> MAC: Reset LAN parameters to factory default XX-XX-XX-XX-XX-XX XX-XX-XX-XX-XX-XX AD: DD MAC ADR DD = DHCP XXX.XXX.XXX.XXX...
  • Page 8 4-port HDMI Fast-Switch with IP Control Command Response Function 3 = 8/2d/PCM/AC3/720p 8 = 8/2d/PCM/Y420 4 = 8/2d/PCM/1080p 9 = 8/2d/PCM/Y420 5 = 8/2d/PCM/AC3/1080p EDAn<CR> EDI1,n Set EDID Setting for ALL Inputs EDI2,n EDI3,n (DEFAULT = 1 for SINK EDID) EDI4,n Where n = 1 through 9 1 = SINK EDID...
  • Page 9: Webgui Operation

    Where n = 1 means Auto Switching is ENABLED 4.2 WebGUI Operation As shipped from the factory (or after factory default reset), the SW-HD-4 IP address is set for DHCP, meaning that it does not have an assigned static IP address and when connected to a router on a LAN, the router will assign an IP address to the device.
  • Page 10  SW-HD-4 internal Web pages (WebGUI) o Access the SW-HD-4 Webpage with any compatible browser at the IP address found above. The browser will open with the devices STATUS tab displayed. Click the tabs at the bottom of the screen to access the other tabs.
  • Page 11: Auto Switching

    SW-HD-4 o Settings  This tab shows the current HDCP Control settings, WEBGUI Input and Output names as well as buttons for Reboot, Factory Reset, Panel Lock and Auto Switching. If the Panel Lock is enabled, the button is highlighted and the AUTO SWITCH button is disabled.
  • Page 12: Factory Default

    4.4 Front Panel and IR Remote Lock Front panel buttons of SW-HD-4 can be locked via WebGUI, RS232, or Telnet to prevent users from switching or changing modes. When enabled, attempts to change the auto mode, input selection, or power status will be ignored. The only way to re- enable the IR Remote and the front panel buttons is to send an unlock command from WebGUI, RS232, or Telnet (factory default also unlocks the front panel).
  • Page 13: Edid Settings

    There are no field serviceable parts or circuits in the device. Opening the unit will void the warranty. 5.1 Contacting Hall Research If you determine that the SW-HD-4 is malfunctioning, do not attempt to repair the unit instead, contact Hall Research Technical Support at 714-641-6607 or support@hallresearch.com.
  • Page 14: Specifications

    4-port HDMI Fast-Switch with IP Control 6.0 Specifications Video Resolution 480i to 1080p@50/60, 1080p@24, 4K2K per following: 3840x2160@24/25/30, (or 50/60 with YUV 4:2:0) 4096x2160@24, (or 50/60 with YUV 4:2:0) Video Bandwidth Up to 3.00 Gbps (Single Link) Audio Standards LPCM 2/5.1/7.1CH, Dolby Digital 2~5.1CH, DTS 2~5.1CH, Dolby TrueHD and DTS-HD Master Audio Input Ports 4 x HDMI Female with Locking Capability...
  • Page 15 SW-HD-4 Appendix 1 – Complete list of Supported Video Resolutions DVI and HDMI Supported Resolutions 640x480@60 640x480@72 640x480@75 720x480@60 720x576p@50 800x600@60 800x600@72 800x600@75 1024x768@60 1024x768@70 1024x768@75 1280x720@50 1280x720@60 1280x720p@60 1280x768@60 1280x800@60 1280x1024@60 1360x768@60 1600x1200@60 1920x1080i@50 1920x1080i@60 1920x1080p@24 1920x1080p@25 1920x1080p@30 1920x1080p@50...
  • Page 16 © Copyright 2015. Hall Research, Inc. All rights reserved. 1163 Warner Ave., Tustin, CA 92780 Ph: (714)641-6607...
