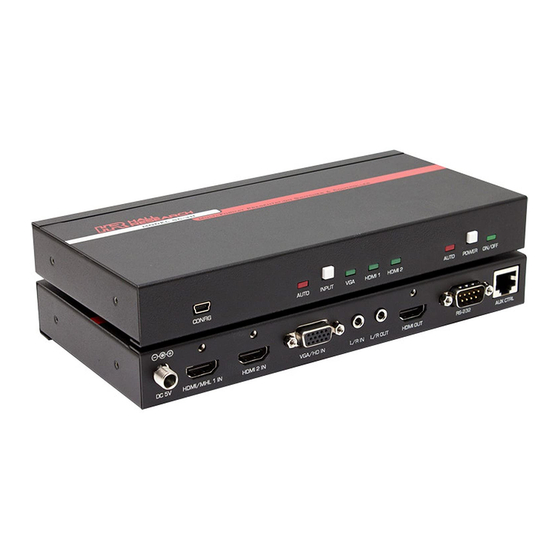

PRESENTATION SWITCHER & RS-232 CONTROLLER
CUSTOMER
SUPPORT
INFORMATION
SC-3H
MULTI-FORMAT
Order toll-free in the U.S. 800-959-6439
FREE technical support, Call 714-641-6607 or fax 714-641-6698
Address: Hall Research, 1163 Warner Ave. Tustin, CA 92780
Web site: www.hallresearch.com E-mail: info@hallresearch.com
Software User's Guide
UMA1256 Rev 2 GUI Insert
1
Advertisement
Table of Contents
Related Manuals for Hall Research Technologies SC-3H
Summary of Contents for Hall Research Technologies SC-3H

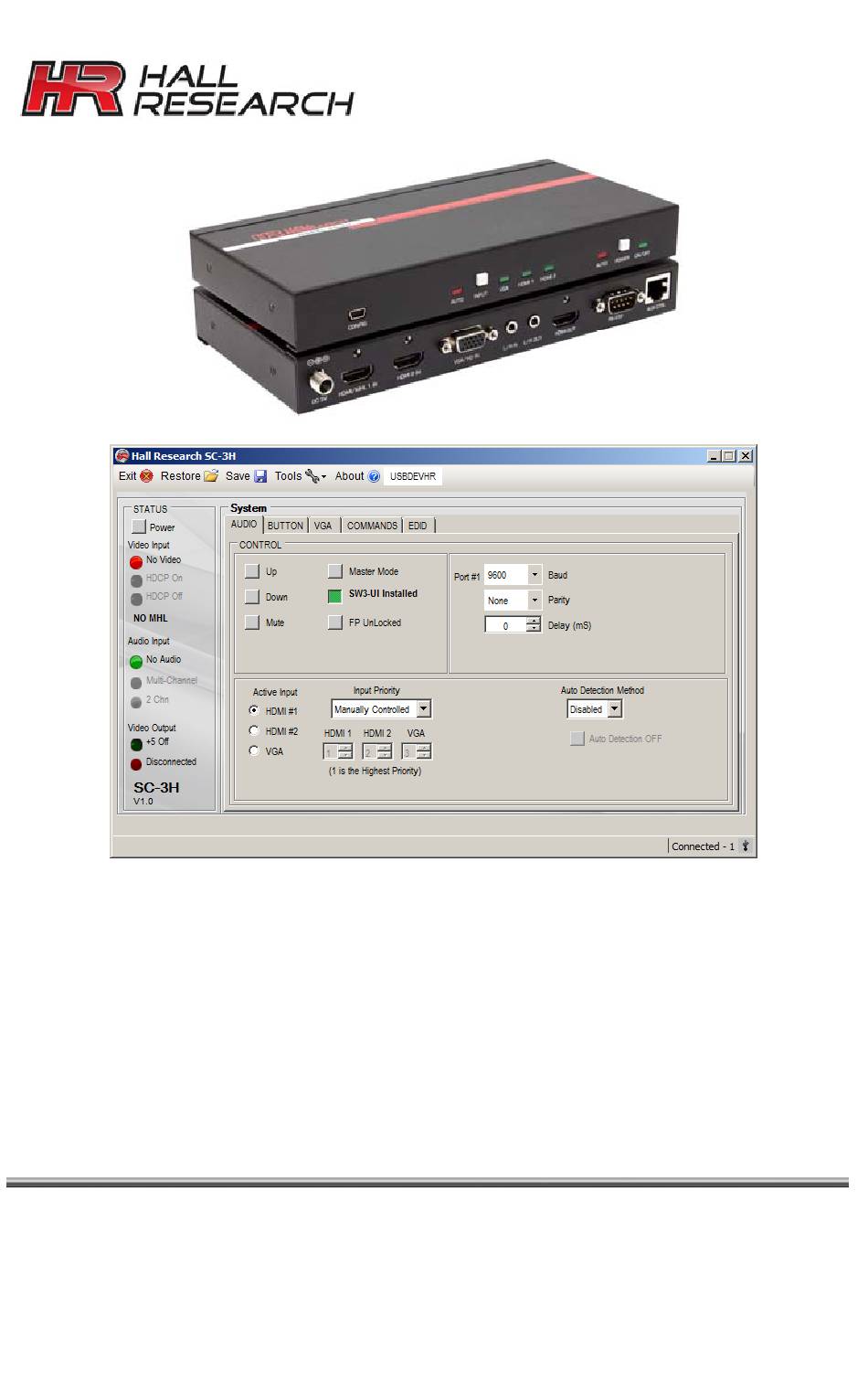

- Page 1 Software User’s Guide SC-3H MULTI-FORMAT PRESENTATION SWITCHER & RS-232 CONTROLLER Order toll-free in the U.S. 800-959-6439 CUSTOMER FREE technical support, Call 714-641-6607 or fax 714-641-6698 SUPPORT Address: Hall Research, 1163 Warner Ave. Tustin, CA 92780 INFORMATION Web site: www.hallresearch.com E-mail: info@hallresearch.com...
-
Page 2: Table Of Contents
User’s Manual Contents 1. SC-3H WINDOWS™ SOFTWARE INSTALLATION ......3 1.1. General ......................3 1.2. Software Installation Prerequisites..............3 1.3. Software Installation ..................3 2. USING THE SOFTWARE ............3 2.1. General ......................3 2.2. USB Device Detection..................4 2.3. Tool Bar Menu....................4 2.4. Device Name....................6 2.5. -
Page 3: Sc-3H Windows™ Software Installation
For most installations the use of the software GUI is not required as most functions can be performed using the front panel buttons on the product. The software GUI allows the user to customize many of the SC-3H features to help with installation issues and usage. -
Page 4: Usb Device Detection
User’s Manual It is possible to connect more than one SC-3H to the PC (using several USB ports of the PC). The same software GUI detects all connected devices and allows control from the same application. 2.2. USB Device Detection The SC-3H software uses standard Windows®... - Page 5 This file can be edited using third party software and reloaded using the ‘Import EDID’ tool selection. Firmware Update Allows users to field upgrade the device application firmware. Only valid firmware files can upload into the SC-3H. VP Update Allows users to field upgrade the device VP firmware. 2.3.5. ABOUT Displays screen with software versions, website link, legal disclaimer and copyright information.
-
Page 6: Device Name
User’s Manual 2.4. Device Name Assigns a descriptive name to be given to the SC-3H device that is a maximum of 8 characters long. The user is not allowed to change the device name with multiple devices connected. The FACTORY DEFAULT name is USBDEVHR. -
Page 7: Audio Tab
Connected or Disconnected Indicates the state of the device connected to the SC-3H HDMI OUTPUT. When a HPD signal is detected, the button will be green and the word Connected will be shown next to it. - Page 8 User’s Manual The FP Unlocked/Locked control shows the device front panels lock status. Factory default is Unlocked. When UNLOCKED, the front panel buttons are active. When LOCKED, the front panel buttons are NOT active. PC GUI and RS- 232 commands are always active even when the FP is in the LOCKED state.
- Page 9 MODEL SC-3H Auto Detection Method The Auto Detection Method control field shows whether Auto Detection is active or not and the detection method to be used. Factory Default is DISABLED. Disabled o Auto Detection is disabled o The Off Delay control is disabled in this mode.
-
Page 10: Buttons Tab
2.8. Buttons Tab These controls configure eight programmable virtual buttons Function The SC-3H system function associated with the button. When pressed, buttons will execute the assigned function. The functions available are POWER, MUTE, VOLUP, VOLDN, IS0 thru IS3 and AUTO. -
Page 11: Vga Tab
MODEL SC-3H 2.9. VGA Tab This tab controls the setting for the VGA Input. Horizontal Flip The VGA source can have its image displayed normally or flipped (left and right). Vertical Flip The VGA source can have its image displayed normally or flipped (up and down). -
Page 12: Commands Tab
User’s Manual Auto Adjust Used to perform an Auto Adjust of the VGA Input (will try to best fit the video on the output screen). Zoom The VGA source can adjust the output zoom level. This is useful if the VGA image’s edges are cut off by the bezel of the TV. Brightness Adjusts the VGA source brightness level between 0 and 100%. - Page 13 MODEL SC-3H Command (when Function is set for Serial or Serial (UI)) The Command control field is where the user enters the desired RS232 string. The RS232 values can be entered as ASCII text and/or hex byte values formatted in a &hXX format.
-
Page 14: Edid Tab
Clicking these controls selects to either PASS-THRU or EMULATE the EDID. PASS-THRU uses the SINK EDID while EMULATE uses the internal EDID saved in the SC-3H. PASS-THRU is the FACTORY DEFAULT setting. Learn EDID Clicking this control will extract the EDID from device connected to the output connector and save it in the unit. - Page 15 MODEL SC-3H...
- Page 16 © Copyright 2017 Hall Research, Inc. All rights reserved. CUSTOMER Order toll-free in the U.S. 800-959-6439 FREE technical support, Call 714-641-6607 or fax 714-641-6698 SUPPORT Mail order: Hall Research, 1163 Warner Ave. Tustin, CA 92780 INFORMATION Web site: www.hallresearch.com E-mail: info@hallresearch.com...
