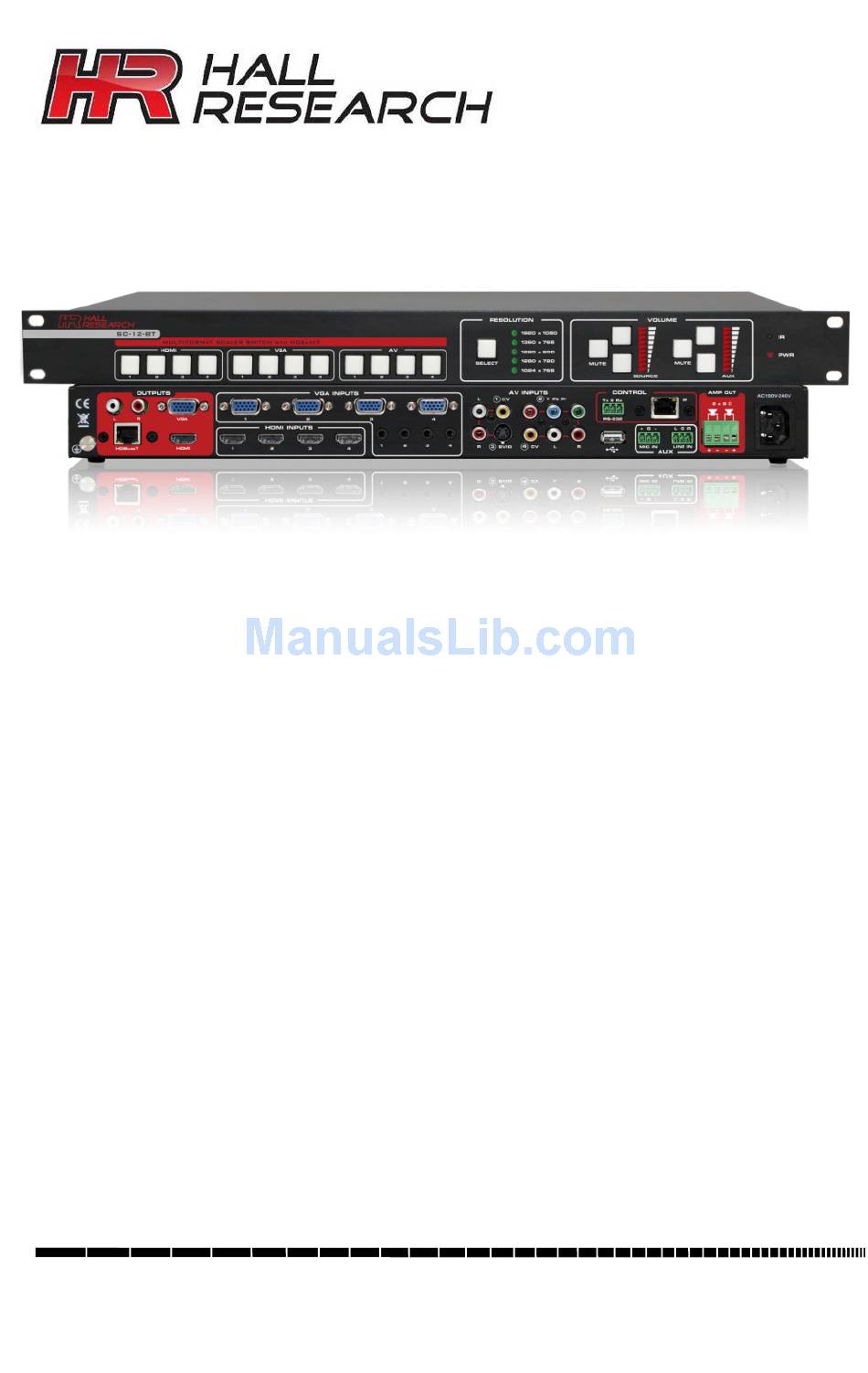

User's Manual

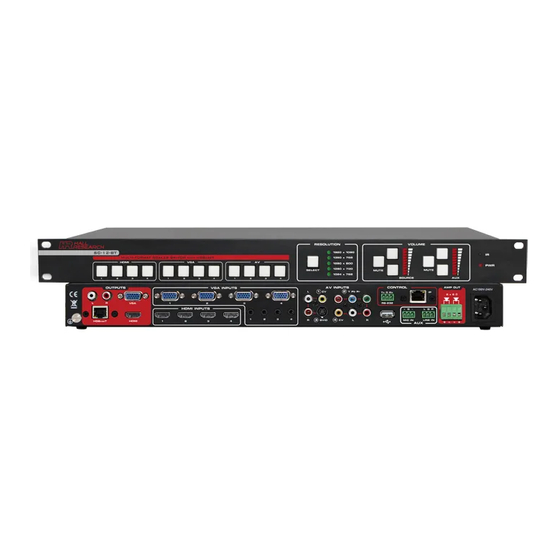

SC-12BT
12-Input Scaler Switch with
HDBaseT Output, RS-232, and IP Control
Variety of inputs: 4x HDMI, 4x VGA, and 4x AV
3 outputs: VGA, HDMI, HDBaseT
Advanced audio with HDMI audio extraction
Built-in audio power amp for connection to speakers
Control via Front Panel, IR, RS-232 and IP port
User friendly and intuitive design
UMA1228 Rev 1.0
© Copyright 2015 Hall Research, Inc. All rights reserved.
1163 Warner Ave Tustin, CA 92780, Ph: (714)641-6607, Fax (714)641-6698
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hall Research Technologies SC-12BT
Summary of Contents for Hall Research Technologies SC-12BT
- Page 1 User’s Manual SC-12BT 12-Input Scaler Switch with HDBaseT Output, RS-232, and IP Control Variety of inputs: 4x HDMI, 4x VGA, and 4x AV 3 outputs: VGA, HDMI, HDBaseT Advanced audio with HDMI audio extraction Built-in audio power amp for connection to speakers...
-
Page 2: Table Of Contents
Multi-Format Scaler Switch with HDBaseT Table of Contents 1.0 Introduction ____________________________________________________________ 3 2.0 Features _________________________________________________________________ 3 3.0 Installation ______________________________________________________________ 5 2.1 Package Contents _______________________________________ 4 3.1 Connecting the Video Inputs ______________________________ 5 3.2 Connecting the Scaled Outputs ____________________________ 6 4.0 Operation _______________________________________________________________ 8 3.4 Audio Subsystem and Amplifier Connections _________________ 7 5.0 RS-232 and IP Control Commands ____________________________________ 10 6.0 Troubleshooting ________________________________________________________ 12... -
Page 3: Introduction
SC-12BT 1.0 Introduction The SC-12BT is a 12 input HD scaler that accommodates 4 HDMI, 4 VGA, and 4 AV inputs. Select any of the inputs by using the front panel push-buttons, IR, RS-232, or IP commands. The selected source is scaled to a fixed user definable... -
Page 4: Package Contents
Multi-Format Scaler Switch with HDBaseT 2.1 Package Contents 1x SC-12BT 1x Power Cord 1x IR Remote (batteries included) 4x Captive screw connectors (pluggable terminal blocks) - one attached to the RS-232 cable, the rest may be plugged in the back of the scaler as shown here. -
Page 5: Installation
For convenience, output connectors on the rear panel have background. 3.1 Connecting the Video Inputs The SC-12BT supports connection to a variety of different input sources, making it a versatile addition to any AV installation. This unit supports four HDMI inputs, four VGA inputs(four 3.5mm VGA corresponding audio inputs), one YPbPr (Component) input, two Composite Video inputs, and one S-Video input. -
Page 6: Connecting The Scaled Outputs
The video output area on the rear panel also has left and right line level analog audio outputs. 3.3 HDBaseT UTP (Twisted Pair Catx) Connection The SC-12BT Scaler Switch provides an HDBaseT output for connection to any HDBaseT compliant receiver including those built-in some displays and projecctors. -
Page 7: Audio Subsystem And Amplifier Connections
SC-12BT 3.4 Audio Subsystem and Amplifier Connections It is important to understand the audio routing and mixing behavior of the scaler. Please refer to the block diagram below. The front panel has two separate audio volume/mute controls, one that affects the selected video input source, and one that affects the Auxiliary audio input. -
Page 8: Operation
Audio adjustments are also on the front panel (see section 3.4). Note that through the RS-232/Telnet commands all or parts of the front panel functions can be locked. This is useful if the SC-12BT is being controlled using an external controller and inadvertent control from the front panel is to be avoided. - Page 9 VGA settings, and other advanced output adjustments (H/V position adjustment). 4.3 Infra-Red Remote Control Below is an image of the infrared remote control included with the SC-12BT. Please be advised that some of the functions are only available in MENU mode.
-
Page 10: Rs-232 And Ip Control Commands
Multi-Format Scaler Switch with HDBaseT 5.0 RS-232 and IP Control Commands The SC-12BT can be controlled via the RS232 port with the provided cable, or through Telnet Protocol via the TCP/IP terminal port # 8080. Use a DB9 Male-to-Female cable shipped with the scaler to connect it to the computer or external control device. - Page 11 SC-12BT Command Response Notes S Colortemp X S Colortemp X X = [ 1 - Normal, 2 - Warm, 3 - Cool ] S Aspect X S Aspect X X = [ 1 - Wide Screen, 2 - Subtitle, 3 - 4:3, 4 - No Scale, 5 - Full ]...
-
Page 12: Troubleshooting
Multi-Format Scaler Switch with HDBaseT Command Response Notes R Keylock R Keylock X Get Current Keylock Status X = 0,1,2,3 S IP X S IP X X = VALID IP address. S SB X S SB X X = VALID Subnet Address S GW X S GW X X = VALID Gateway Address... -
Page 13: Specifications
SC-12BT 7.0 Specifications Video Inputs 4x HDMI, 4x VGA, 4xAV (1s YPbPr, 1x S-Video, 2x Composite Video) Outputs 1x HDMI, 1x VGA, 1x HDBaseT (for extension to 70m or 230 ft max.) Connectors HDMI female, HD15 Female for VGA, RCA for Composite and YPbPr, Mini- Din for S-Video, RJ45 for HDBaseT Input Standards HDMI 1.3, RGBHV, RGBs, RGsB, RsBsGs, NTSC 3.58, NTSC 4.42, PAL,... - Page 14 Multi-Format Scaler Switch with HDBaseT 7.1 Supported Input Video Formats Input Resolution HDMI YPbPr Video 640 x 480 @ 60 Hz (VGA) ☑ ☑ 640 x 480 @ 72 Hz (VGA) ☑ ☑ 640 x 480 @ 75 Hz (VGA) ☑...
- Page 16 © Copyright 2015 Hall Research, Inc. All rights reserved. 1163 Warner Ave., Tustin, CA 92780 Ph: (714)641-6607...
