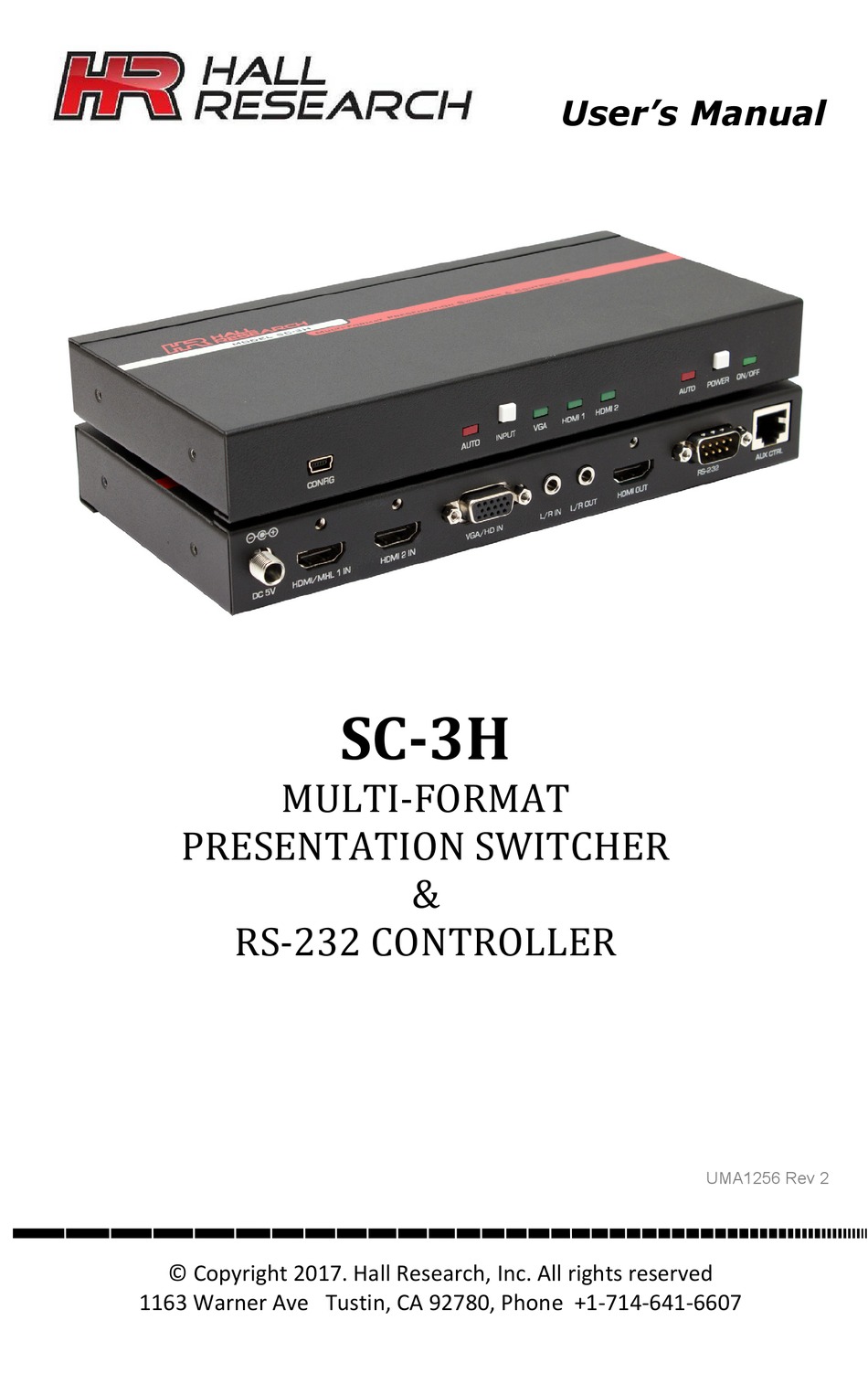

- Page 1 User’s Manual MULTI-FORMAT SC-3H PRESENTATION SWITCHER & RS-232 CONTROLLER UMA1256 Rev 2 © Copyright 2017. Hall Research, Inc. All rights reserved 1163 Warner Ave Tustin, CA 92780, Phone +1-714-641-6607...
-
Page 2: Table Of Contents
MULT-FORMAT PRESENTATION SWITCHER & CONTROLLER Table of Contents 1.0 INTRODUCTION ....................3 2.0 FEATURES ...................... 4 2.1 P ..................4 ACKAGE ONTENTS 3.0 SETUP ......................4 3.1 I ....................4 NSTALLATION 4.0 OPERATION ....................5 4.1 F ....................5 RONT ANEL 4.2 R .................... -
Page 3: Introduction
Users can upload power control commands for their display and when the SC-3H is turned on, it will send the “on command” to the display and upon turning the device off, an off command will be issued. The power commands can also function automatically. -
Page 4: Features
Locking power supply input connector • Compact, Rugged, Reliable, and Economical • 2.1 Package Contents Qty (1) SC-3H Qty (1) 5V DC Universal DC Power Adapter Qty (1) User’s Manual Qty (1) Type A to Mini-B USB cable 3.0 Setup Figure 2 - Typical Installation Diagram 3.1 Installation... -
Page 5: Operation
SC-3H Connect the HDMI display device to the HDMI OUT connector. • Optionally, connect a compatible line-level audio output device to the L/R OUT • connector. (e.g., headphones, amps, assistive listening devices). Optionally, connect a compatible RS-232 device to be controlled to the RS-232 •... -
Page 6: Rear Panel
MULT-FORMAT PRESENTATION SWITCHER & CONTROLLER INPUT AUTO LED This LED shows whether the unit will automatically select an input based on the priorities configured. CONFIG Connect the supplied USB cable to a compatible Windows™ PC running the free software GUI available for download from the product’s webpage. 4.2 Rear Panel Figure 4 –... -
Page 7: Factory Default
If the preamp does not provide a balanced (differential) output, you should not tie the return of your source to the ground of the SC-3H. Doing so would create a ground loop that will most likely cause audio hum. -
Page 8: Using The Rs-232 Serial Port
RS-232 port will be ignored. To control the SC-3H from the serial port, you must first put the unit in slave mode. In slave mode the SC-3H will not send out power on/off commands, instead it will listen for the commands described in section 5.1 and respond accordingly. - Page 9 SC-3H Response Command Function and Example FPx<CR> Controls the Front Panel Lock Status FP?<CR> – Query current Front Panel Lock Setting FP1<CR> – Turn on Front Panel Lock FP0<CR> – Turn off Front Panel Lock (Factory Default) System status Queries system status ST<CR>...
-
Page 10: Auto Power Video Detection Methods
AP2<CR> – Last Plugged 5.2 Auto Power Video Detection Methods As mentioned earlier, when the power mode is in Auto Command, the SC-3H can send the user programmed ON/OFF RS-232 strings based on sensing different parameters of the currently selected input source. -
Page 11: Troubleshooting
SC-3H 6.0 Troubleshooting If you are experiencing problems getting the switcher to work properly, please use the following troubleshooting suggestions. Ensure that all connections are solid. • Try resetting the system by unplugging the power supply, waiting 5 seconds •... -
Page 12: Specifications
(32mm H x 229mm W x 109mm D) Depth excludes connectors Product weight Model Only 1.3 lb Kit (shipping) 3.0 lb includes: SC-3H, power supply, power cord, USB cable, manual, and packaging Vibration ISTA 1A in carton (International Safe Transit Association) Safety... - Page 13 SC-3H...
- Page 16 © Copyright 2017. Hall Research, Inc. All rights reserved. CUSTOMER Toll-free in the U.S. 800-959-6439 Email: support@hallresearch.com SUPPORT Hall Research, 1163 Warner Ave. Tustin, CA 92780 INFORMATION www.hallresearch.com...
