HDMI/VGA Auto-Switching Wall-Plate
with USB, IR, & RS-232 over HDBaseT™ Kit
Part Number
UHB-SW2-WP
UHB-R
CUSTOMER
SUPPORT
INFORMATION
UHB-SW2
Function
2-Gang Decora Wall-Plate Transmitter
Receiver with HDMI, USB, IR, and RS-232 out
Order toll-free in the U.S. 800-959-6439
FREE technical support: 714-641-6607 or support@hallresearch.com
Hall Research, 1163 Warner Ave. Tustin, CA 92780
www.hallresearch.com
User's Manual
UMA1284 REV N/C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UHB-SW2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Hall Research Technologies UHB-SW2

  • Page 1 User’s Manual UHB-SW2 HDMI/VGA Auto-Switching Wall-Plate with USB, IR, & RS-232 over HDBaseT™ Kit Part Number Function UHB-SW2-WP 2-Gang Decora Wall-Plate Transmitter UHB-R Receiver with HDMI, USB, IR, and RS-232 out UMA1284 REV N/C Order toll-free in the U.S. 800-959-6439 CUSTOMER FREE technical support: 714-641-6607 or support@hallresearch.com...
  • Page 2: Table Of Contents

    2.0 Package Contents ................ 4 3.0 Setup ....................5 Installation ..................... 5 4.0 Connector and Indicator Functions ......... 6 Model UHB-SW2-WP FRONT ............6 Model UHB-SW2-WP REAR ............... 7 Model UHB-R FRONT ................. 8 Model UHB-R REAR ................8 5.0 Troubleshooting ................9 Contacting Hall Research ..............
  • Page 3: Introduction

    HDMI/VGA Auto-Switching Wall Plate with USB 1.0 Introduction The UHB-SW2 is a kit comprised of a 2-Gang Decora style wallplate transmitter (UHB-SW2-WP) and a receiver (UHB-R). The transmitter accepts an HDMI input with resolutions up to 4K UHD, or a VGA input up to 1920x1080 with analog audio that is converted to HDMI.
  • Page 4: Features

    HDCP 2.2 compliant Supports 7.1 channels HD audio format 3 Year warranty 2.0 Package Contents Model UHB-SW2-WP (x1) 2-Gang HDBaseT™ transmitter (UHB-SW2-WP) (x1) Phoenix connector (2-pin) (x1) Phoenix connector (3-pin) (x1) IR detector (wideband) (x1) IR emitter (wideband) Model UHB-R (x1) HDBaseT™...
  • Page 5: Setup

    HDMI/VGA Auto-Switching Wall Plate with USB 3.0 Setup Installation  Connect the video source(s) to the UHB-SW2-WP transmitter.  Connect the USB Host (PC) to the transmitter using a USB A/B cable.  Connect the display to the UHB-R receiver.
  • Page 6: Connector And Indicator Functions

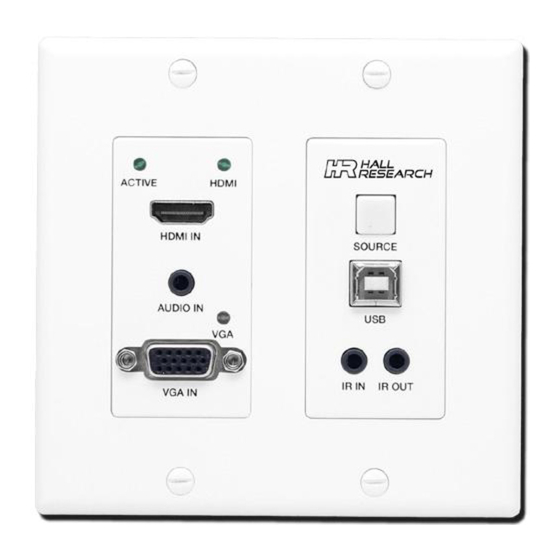

    UHB-SW2 4.0 Connector and Indicator Functions Model UHB-SW2-WP FRONT HDMI IN: Connect to HDMI source, such as a PC or media player. VGA IN / AUDIO IN: Legacy input. Connect to VGA and line level analog audio source. USB: Connect to a USB Host, such as a PC.
  • Page 7: Model Uhb-Sw2-Wp Rear

    HDMI/VGA Auto-Switching Wall Plate with USB Model UHB-SW2-WP REAR HDBaseT OUT: Connect to UHB-R receiver using CAT6 cable. RS-232: Use supplied terminal block to extend RS-232 control signals between Transmitter and Receiver. DC 24V: Optional power connection, if power is unavailable at UHB-R receiver side.
  • Page 8: Model Uhb-R Front

    DC 24V: Power input. Use the included power supply with the locking connector. The transmitter receives power via PoC from the receiver. HDBaseT IN: Connect to UHB-SW2-WP using CAT6 cable. IR IN / IR OUT: Connect the IR detector to the IR IN, or the IR Emitter to the IR OUT, to extend IR (you must use corresponding IR cable at Transmitter.)
  • Page 9: Troubleshooting

    Contacting Hall Research If you determine that your UHB-SW2 is malfunctioning, do not attempt to repair the unit. Instead, contact Hall Research Technical Support at 714-641-6607. To return the unit to Hall Research you must first get a Return Authorization (RMA) number.
  • Page 10: Specifications

    Dimensions UHB-SW2-WP - 4.13" H x 3.61" W x 1.57" D (105 mm H x 91.8 mm W x 40 mm D) EX-HDU-R - 0.97" H x 6.77" W x 3.84" D (20 mm H x 172 mm W x 97.5 mm D) Product weight Model Only UHB-SW2-WP - 0.47 lb...
  • Page 11 HDMI/VGA Auto-Switching Wall Plate with USB © Copyright 2019 Hall Research, LLC.
  • Page 12 © Copyright 2019. Hall Research, LLC. All rights reserved. 1163 Warner Ave., Tustin, CA 92780 Ph: (714)641-6607...
