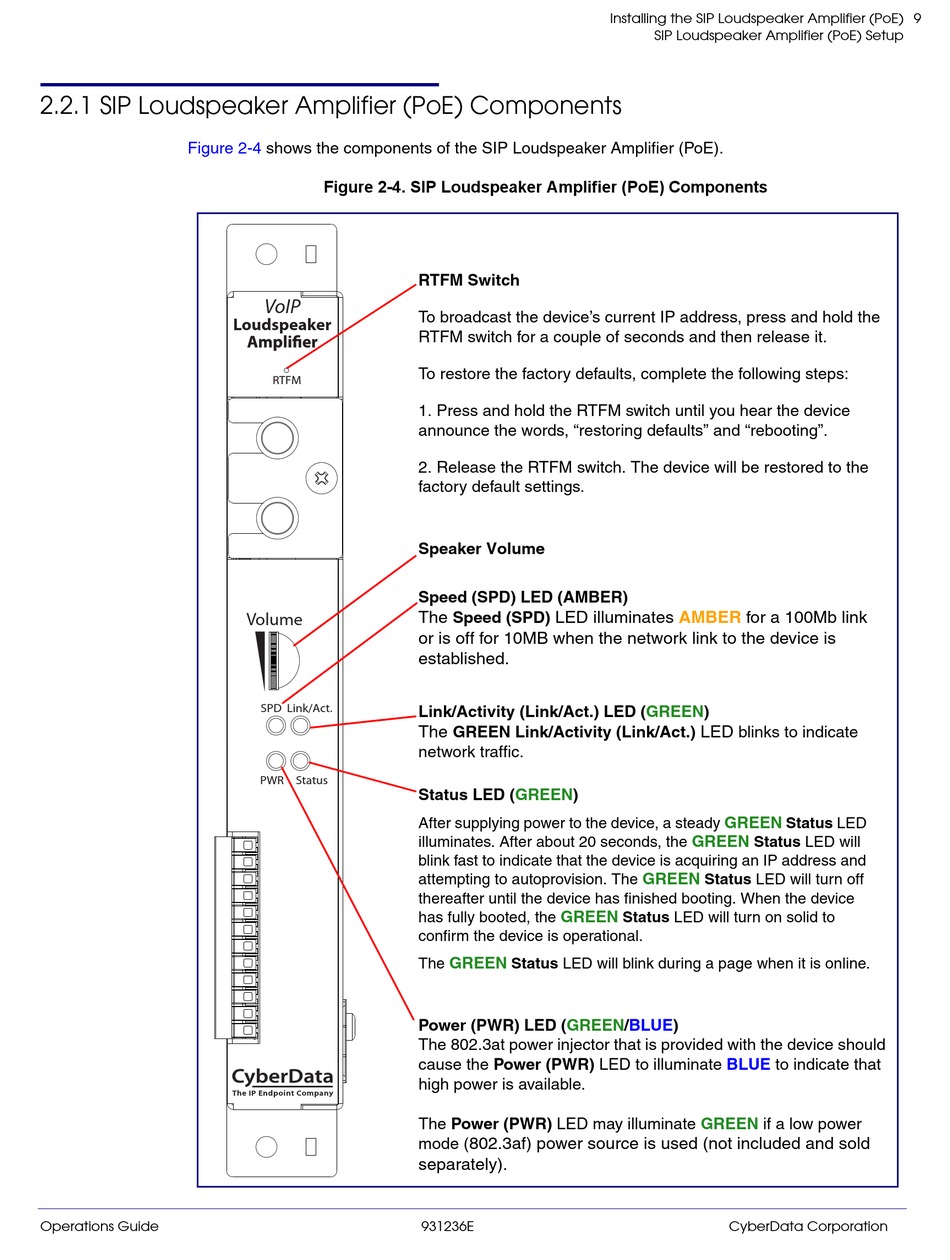

2.2.1 SIP Loudspeaker Amplifier (PoE) Components

Figure 2-4
Operations Guide
shows the components of the SIP Loudspeaker Amplifier (PoE).
Figure 2-4. SIP Loudspeaker Amplifier (PoE) Components
Loudspeaker
RTFM
Volume
SPD Link/Act.
PWR Status
The IP Endpoint Company
RTFM Switch
To broadcast the device's current IP address, press and hold the
RTFM switch for a couple of seconds and then release it.
To restore the factory defaults, complete the following steps:
1. Press and hold the RTFM switch until you hear the device
announce the words, "restoring defaults" and "rebooting".
2. Release the RTFM switch. The device will be restored to the
factory default settings.
Speaker Volume
Speed (SPD) LED (AMBER)
The Speed (SPD) LED illuminates
or is off for 10MB when the network link to the device is 
established.
Link/Activity (Link/Act.) LED (GREEN) 
The GREEN Link/Activity (Link/Act.) LED blinks to indicate
network traffic.
Status LED (GREEN)
After supplying power to the device, a steady
illuminates. After about 20 seconds, the
blink fast to indicate that the device is acquiring an IP address and
attempting to autoprovision. The
thereafter until the device has finished booting. When the device
has fully booted, the GREEN
confirm the device is operational.
GREEN
The Status LED will blink during a page when it is online.
Power (PWR) LED (GREEN/BLUE)
The 802.3at power injector that is provided with the device should
cause the Power (PWR) LED to illuminate
high power is available.
The Power (PWR) LED may illuminate
mode ( 802.3af) power source is used (not included and sold
separately).
