CyberData 011458 Installation Quick Reference

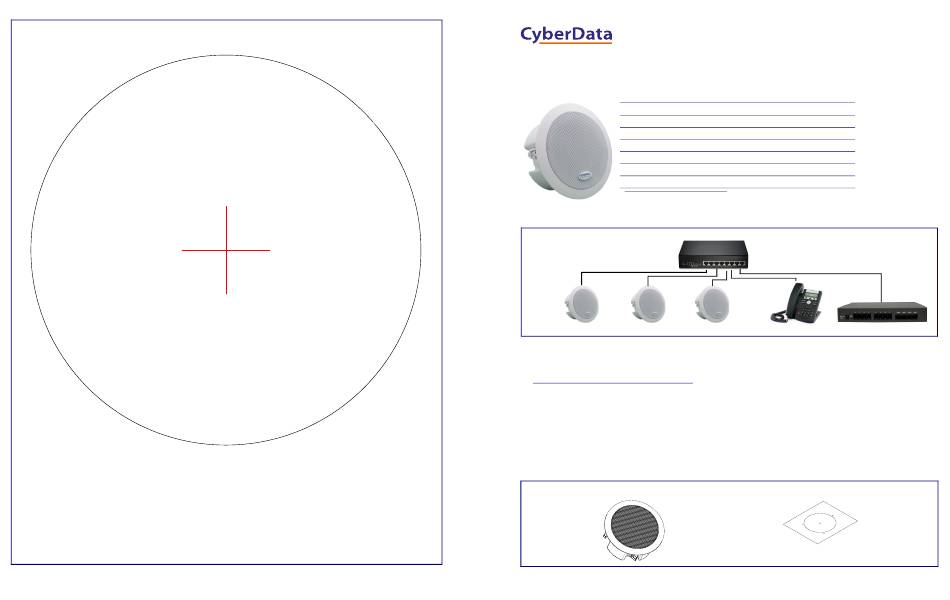

Mounting Template
Dimensions are in Inches [Millimeter]
Dimensions are in Inches [Millimeter]
Wall Cutout Diameter: Ø6.7 in. [Ø170 mm]
The wall thickness must not exceed 1.0 in. [25 mm]
© 2022, CyberData Corporation, ALL RIGHTS RESERVED
Ceiling Hole
931530D
The IP Endpoint Company
Typical System Installation
*More installation options are
illustrated in the Operations Guide.
Getting Started
• Download the Operations Guide PDF file, from the Downloads tab at the following webpage:
https://www.cyberdata.net/products/011458/
• Create a plan for the locations of your speakers.
• WARNING: This product should be installed by a licensed electrician according to all local electrical and building codes.
• WARNING: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation
instructions.
• WARNING: The PoE connector is intended for intra-building connections only and does not route to the outside plant.
• WARNING: This enclosure is not rated for any AC voltages!
Parts
Quick Reference Quick Reference
Installation Quick Reference
Multicast Ceiling Speaker
SIP Compliant
011458
Parameter Factory Default Setting
IP Addressing DHCP
a
IP Address IPv4 Link Local
Web Access Username admin
Web Access Password admin
a
Subnet Mask IPv4 Link Local
a
Default Gateway IPv4 Link Local
a. Default if there is not a DHCP server present.
802.3af/at Compliant Ethernet Switch
Speaker Speaker Speaker

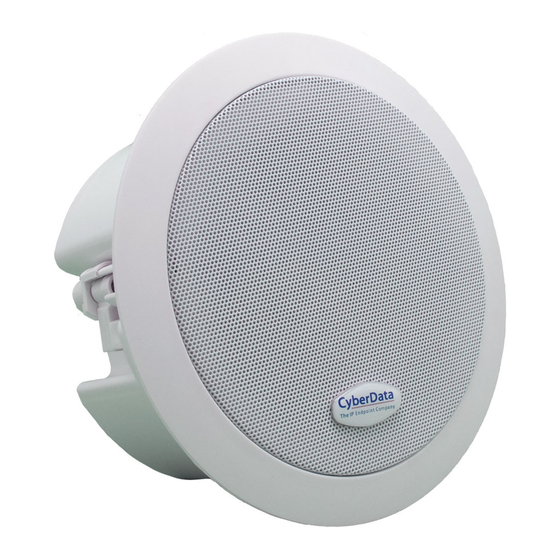

(1) Speaker Assembly
931530D
IP Phone IP PBX Server
(1) Template for Speaker*
* See the last page of this document
