CyberData 011487 Quick Start Manual

The IP Endpoint Company

1.0 Out-of-Box and Prior to Final Installation

1.1. Verify that you have received all of the parts listed on the Installation Quick
Reference placemat.
1.2. Download the current manual, otherwise known as an Operation Guide,
which is available in the Downloads tab at the following webpage:
http://www.cyberdata.net/products/011487/
Note You can also navigate to the Downloads tab by going to
www.CyberData.net
the following figures:
1
OUR PRODUCTS
A
VOIP PRODUCTS
B
SIP ENABLED
C

2.0 Select Power Source

IEEE 802.3af or 802.3at PoE Switch
Set PoE power type to Class 0 = 15.4W
Spanning Tree Protocol (STP) must be disabled or Portfast enabled
Quick Start Guide

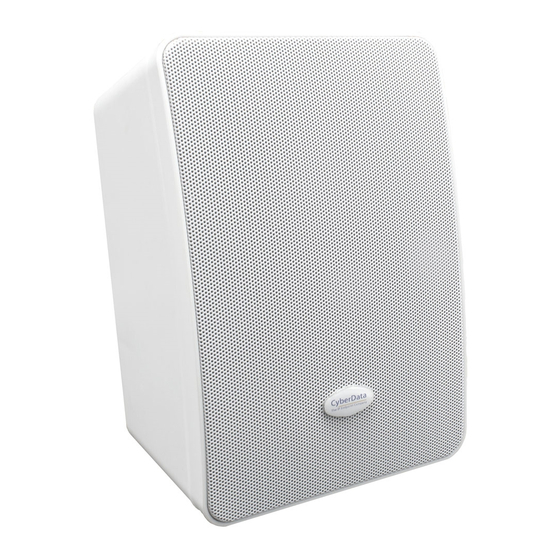

Multicast Wall Mount Speaker
Quick Start Guide
and following the steps that are indicated by
Make sure port is not in trunk mode
Set port to full duplex/ 100mbps
2
011487 MULTICAST WALL
3
IEEE 802.3af or 802.3at PoE Injector
CAT6 cable recommended—
for longer distances
Be sure you are using a non-PoE switch or port
MOUNT SPEAKER
