The IP Endpoint Company

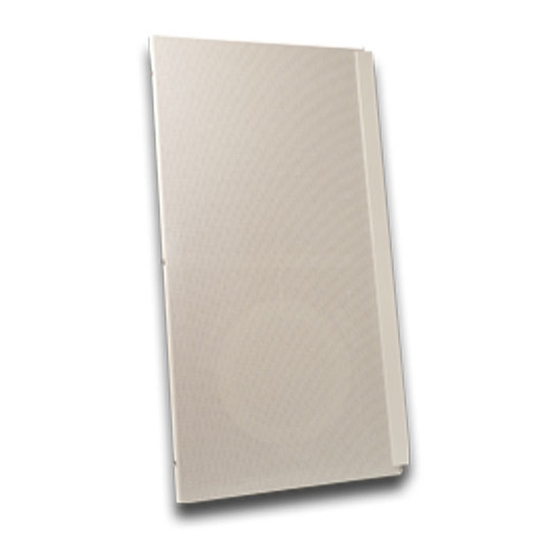

The Singlewire/SIP Ceiling Tile Drop-In Speaker is an adapter that is built for a CyberData SIP Speaker.
Parts
(1) Perforated Faceplate (24" [610mm] L x 12" [305mm] W)
FIts 12-inches x 24-inches and 24-inches x 48-inches ceiling tile
Dimensions
DIMENSIONS ARE IN
INCHES [MILLIMETERS]
with screws, dimensions
are approximate
Quick Reference

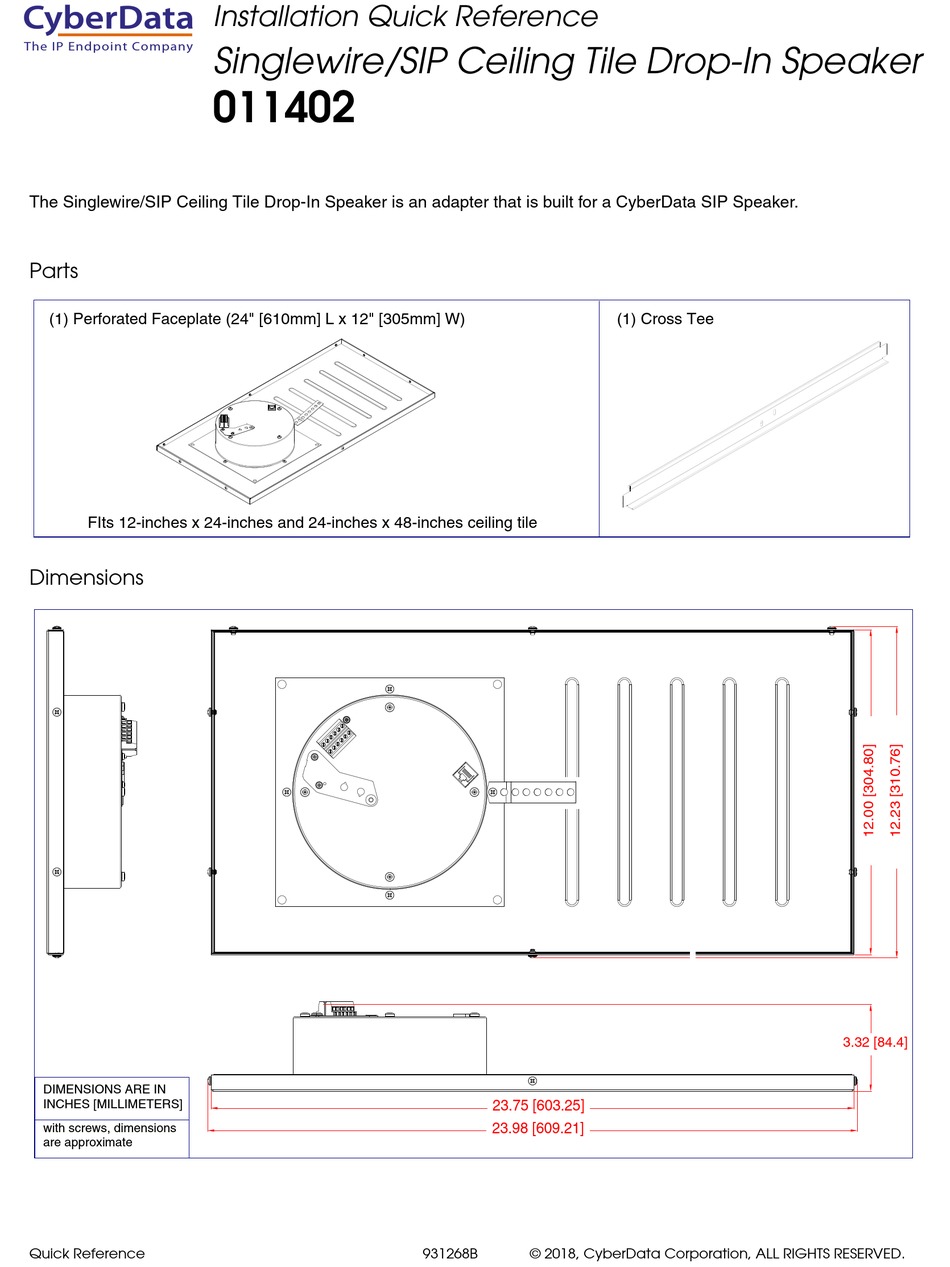

Installation Quick Reference
Singlewire/SIP Ceiling Tile Drop-In Speaker
011402
23.75 [603.25]
23.75 [603.25]
23.98 [609.21]
23.98 [609.21]
931268B
© 2018, CyberData Corporation, ALL RIGHTS RESERVED.
(1) Cross Tee
3.32 [84.4]
3.32 [84.4]
