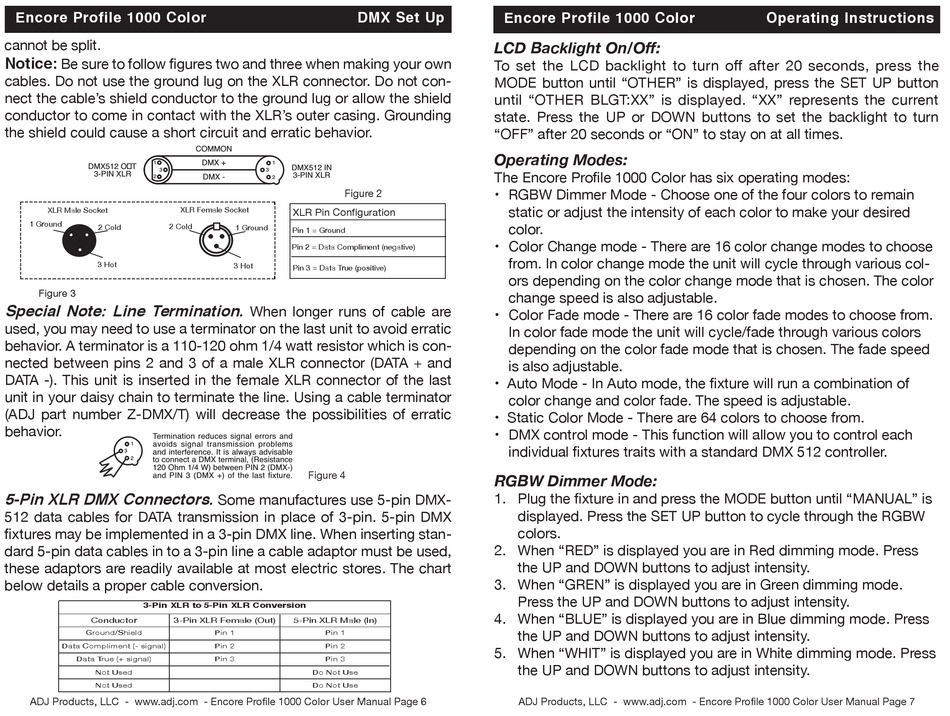

Encore Profile 1000 Color
cannot be split.
DMX512
Notice:
Be sure to follow figures two and three when making your own
DMX+,DMX-,COMMON
cables. Do not use the ground lug on the XLR connector. Do not con-
nect the cable's shield conductor to the ground lug or allow the shield
conductor to come in contact with the XLR's outer casing. Grounding
the shield could cause a short circuit and erratic behavior.
1
DMX512 O T
3
3-PIN XLR
2
REMOTE
INPUT OUTPUT
CONTROL
INPUT
XLR Male Socket
1 Ground
2 Cold
3 Hot
Figure 3
POWER
Special Note: Line Termination.
used, you may need to use a terminator on the last unit to avoid erratic
behavior. A terminator is a 110-120 ohm 1/4 watt resistor which is con-
nected between pins 2 and 3 of a male XLR connector (DATA + and
DATA -). This unit is inserted in the female XLR connector of the last
unit in your daisy chain to terminate the line. Using a cable terminator
(ADJ part number Z-DMX/T) will decrease the possibilities of erratic
behavior.
Termination reduces signal errors and
avoids signal transmission problems
1 1
DMX512 IN
and interference. It is always advisable
3
3-PIN XLR
to connect a DMX terminal, (Resistance
2 2
120 Ohm 1/4 W) between PIN 2 (DMX-)
and PIN 3 (DMX +) of the last fixture.
5-Pin XLR DMX Connectors.
512 data cables for DATA transmission in place of 3-pin. 5-pin DMX
fixtures may be implemented in a 3-pin DMX line. When inserting stan-
dard 5-pin data cables in to a 3-pin line a cable adaptor must be used,
these adaptors are readily available at most electric stores. The chart
below details a proper cable conversion.
3-Pin XLR to 5-Pin XLR Conversion
Conductor
Ground/Shield
Data Compliment (- signal)
Data True (+ signal)
Not Used
Not Used
ADJ Products, LLC - www.adj.com - Encore Profile 1000 Color User Manual Page 6
POWER
COMMON
DMX +
1
DMX512 IN
3
3-PIN XLR
DMX -
2
Figure 2
REMOTE
INPUT OUTPUT
SOUND CONTROL
INPUT
XLR Female Socket
XLR Pin Configuration
2 Cold
1 Ground
Pin 1 = Ground
Pin 2 = Data Compliment (negative)
3 Hot
Pin 3 = Data True (positive)
When longer runs of cable are
Figure 4
Some manufactures use 5-pin DMX-
3-Pin XLR Female (Out) 5-Pin XLR Male (In)
Pin 1 Pin 1
Pin 2 Pin 2
Pin 3 Pin 3
Do Not Use
Do Not Use
DMX Set Up Encore Profile 1000 Color
POWER
LCD Backlight On/Off:
To set the LCD backlight to turn off after 20 seconds, press the
MODE button until "OTHER" is displayed, press the SET UP button
until "OTHER BLGT:XX" is displayed. "XX" represents the current
state. Press the UP or DOWN buttons to set the backlight to turn
"OFF" after 20 seconds or "ON" to stay on at all times.

Operating Modes:

Termination reduces signal errors and
avoids signal transmission problems
1
and interference. It is always advisable
3
The Encore Profile 1000 Color has six operating modes:
to connect a DMX terminal, (Resistance
2
120 Ohm 1/4 W) between PIN 2 (DMX-)
• RGBW Dimmer Mode - Choose one of the four colors to remain
and PIN 3 (DMX +) of the last fixture.
static or adjust the intensity of each color to make your desired
color.
• Color Change mode - There are 16 color change modes to choose
from. In color change mode the unit will cycle through various col-
ors depending on the color change mode that is chosen. The color
change speed is also adjustable.
POWER
• Color Fade mode - There are 16 color fade modes to choose from.
In color fade mode the unit will cycle/fade through various colors
depending on the color fade mode that is chosen. The fade speed
is also adjustable.
• Auto Mode - In Auto mode, the fixture will run a combination of
color change and color fade. The speed is adjustable.
• Static Color Mode - There are 64 colors to choose from.
• DMX control mode - This function will allow you to control each
individual fixtures traits with a standard DMX 512 controller.
RGBW Dimmer Mode:
1. Plug the fixture in and press the MODE button until "MANUAL" is
displayed. Press the SET UP button to cycle through the RGBW
colors.
2. When "RED" is displayed you are in Red dimming mode. Press
the UP and DOWN buttons to adjust intensity.
3. When "GREN" is displayed you are in Green dimming mode.
Press the UP and DOWN buttons to adjust intensity.
4. When "BLUE" is displayed you are in Blue dimming mode. Press
the UP and DOWN buttons to adjust intensity.
5. When "WHIT" is displayed you are in White dimming mode. Press
the UP and DOWN buttons to adjust intensity.
ADJ Products, LLC - www.adj.com - Encore Profile 1000 Color User Manual Page 7
