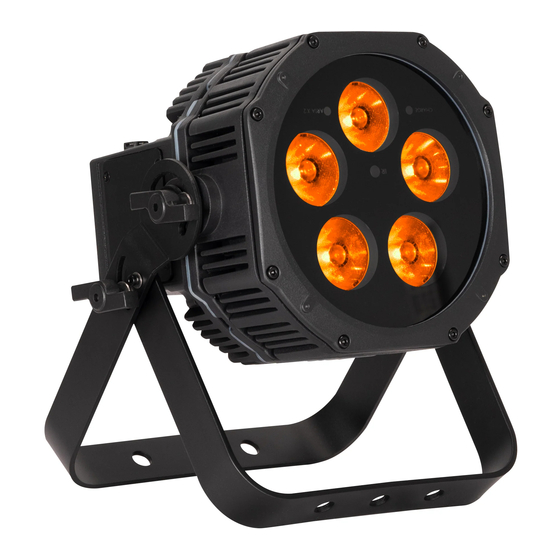

Summary of Contents for ADJ MIRAGE PAR H IP

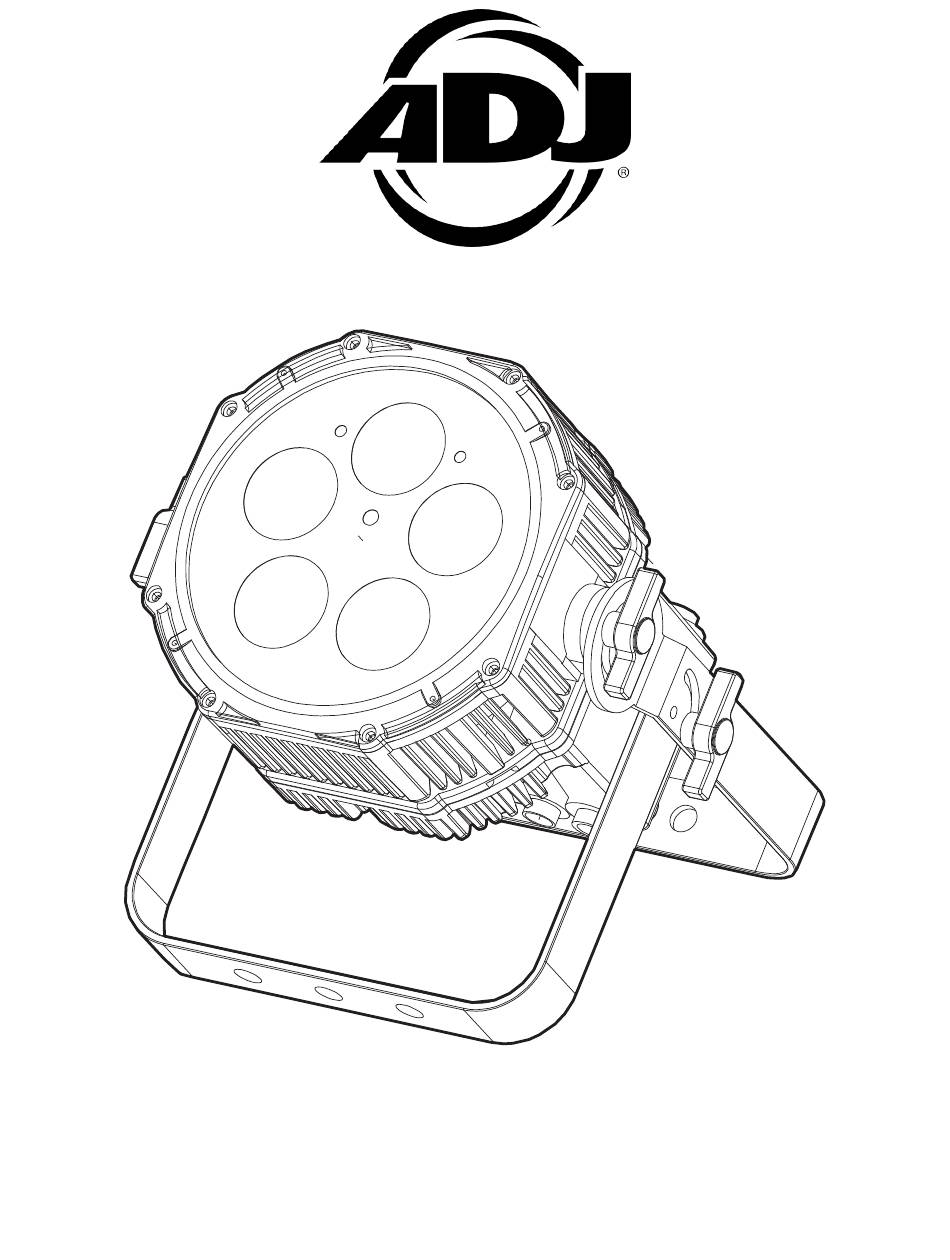

  • Page 1 MIRAGE PAR H IP User Manual...

  • Page 2: Document Version

    ©2024 ADJ Products, LLC all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying product names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.

  • Page 3: Table Of Contents

    C O N T E N T S General Information Limited Warranty (USA Only) Warranty Registration | Features IP65 Rated Safety Guidelines Battery Warnings Overview Installation Guidelines Aria Setup Remote Device Management (RDM) System Menu DMX Setup DMX Addressing DMX Traits Color Macros Chart Dimmer Curve Color Temperatures...

  • Page 4: General Information

    Voice: 800-322-6337 | Fax: 323-582-2941 | support@adj.com ADJ SERVICE EUROPE - Monday - Friday 08:30 to 17:00 CET Voice: +31 45 546 85 60 | Fax: +31 45 546 85 96 | support@adj.eu ADJ PRODUCTS LLC USA 6122 S. Eastern Ave. Los Angeles, CA. 90040 323-582-2650 | Fax 323-532-2941 | www.adj.com...

  • Page 5: Limited Warranty (Usa Only)

    All shipping charges must be pre-paid. If the requested repairs or service (including parts replacement) are within the terms of this warranty, ADJ Products, LLC will pay return shipping charges only to a designated point within the United States. If the entire instrument is sent, it must be shipped in its original package. No accessories should be shipped with the product.

  • Page 6: Key Features

    WA R R A N T Y R E G I S T R AT I O N This device carries a 2 year limited warranty. Please fill out the enclosed warranty card to validate your purchase. All returned service items, whether under warranty or not, must be freight pre-paid and accompanied by a return authorization (R.A.) number.

  • Page 7: Ip65 Rated

    10,000-hours. This is a prophylactic measure intended to keep the unit running as cool as possible, insuring proper function of all internal components. A complete service breakdown is available, please contact service@adj.com for any needed parts or manuals.

  • Page 8: Safety Guidelines

    S A F E T Y G U I D E L I N E S RISK GROUP 3 - RISK OF EXPOSURE TO ULTRAVIOLET UV RADIATION! FIXTURE EMITS HIGH INTENSITY WAVELENGTH OF ULTRAVIOLET UV LIGHT FROM THE UV COLOR FILTER. WEAR PROPER EYE AND SKIN PROTECTION.
  • Page 9 To guarantee a smooth operation, it is important to follow all instructions and guidelines in this manual. ADJ Products, LLC is not responsible for injury and/or damages resulting from the misuse of this fixture due to the disregard of the information printed in this manual. Only qualified and/or certified personnel should perform installation of this fixture and only the original rigging parts included with this fixture should be used for installation.
  • Page 10 S A F E T Y G U I D E L I N E S DO NOT TOUCH the fixture housing during operation. Turn OFF the power and allow approximately • 15 minutes for the fixture to cool down before servicing. DO NOT shake fixture, and avoid brute force when installing and/or operating fixture.

  • Page 11: Battery Warnings

    B AT T E R Y WA R N I N G S HANDLING PRECAUTIONS Do not short circuit the battery. Avoid subjecting the battery to a short circuit, as doing so generates a very high current, resulting in overheating, electrolyte gel leakage, harmful fumes, explosion risk, or other damage to the battery.

  • Page 12: Overview

    O V E R V I E W Bracket Adjustment Knob Display Bracket Screen Adjustment Knob Mounting Bracket Mode Setup Down Button Button Button Button Power Power Power Button Valve...

  • Page 13: Installation Guidelines

    I N S TA L L AT I O N G U I D E L I N E S FLAMMABLE MATERIAL WARNING Keep fixture at least 3.2 ft (1m) away from any flammable materials, decorations, pyrotechnics, etc. ELECTRICAL CONNECTIONS A qualified electrician should be used for all electrical connections and/or installations.

  • Page 14: Fixture Installation

    I N S TA L L AT I O N G U I D E L I N E S FIXTURE INSTALLATION The fixture is fully operational in three different mounting positions, hanging upside-down, mounted sideways on trussing, or set on a flat level surface. Always use and install the supplied safety cable as a safety measure to prevent accidental damage and/or injury in the event the clamp fails.
  • Page 15 LEDs. This issue is not specific only to ADJ lighting fixtures, it is a common issue with lighting fixtures from all manufacturers. Although there is no true way to fully prevent this issue from happening, the guidelines below can prevent any potential damage from occurring if followed.

  • Page 16: Clamp Installation

    I N S TA L L AT I O N G U I D E L I N E S CLAMP INSTALLATION This fixture features an attachment point for a mounting clamp at the top of the mounting bracket. Align the hole in the mounting clamp with the hole in the mounting bracket, insert a bolt of the proper size through bolt the clamp and bracket, and secure in place with a matching nut and washer.

  • Page 17: Stand Mounting

    I N S TA L L AT I O N G U I D E L I N E S STAND MOUNTING This unit can also be installed atop a tripod stand. Simply secure the Omega bracket to the bottom face of the device, then insert the threaded bolt on the top of the tripod stand through the hole in the Omega bracket.

  • Page 18: Aria Setup

    A R I A S E T U P 2GHZ Versus Sub-Gig (GHz) Frequencies: Sub-GHz frequencies provide superior reliability and range compared to higher frequencies, making them perfect for consistent communication across vast distances or in difficult conditions. Devices operating in the sub-GHz range, which refers to frequencies below 1 GHz, can transmit signals over significant distances and can penetrate physical barriers such as walls and buildings more effectively.

  • Page 19: Remote Device Management (Rdm)

    R E M O T E D E V I C E M A N A G E M E N T ( R D M ) NOTE: In order for RDM to work properly, RDM enabled equipment must be used throughout the entire system, including DMX data splitters and wireless systems.

  • Page 20: System Menu

    ADJ SERVICE USA - Monday - Friday 8:00am to 4:30pm PST Voice: 800-322-6337 | Fax: 323-582-2941 | support@adj.com ADJ SERVICE EUROPE - Monday - Friday 08:30 to 17:00 CET Voice: +31 45 546 85 60 | Fax: +31 45 546 85 96 | support@adj.eu...
  • Page 21 S Y S T E M M E N U Address 001 - 512 9ch A CH Mode 9ch B 15ch DMX SET 17ch Hold Last Blackout No DMX Manual Int Progs Prim / Sec Primary / Secondry DMX or Aria Signal ArIndOut On / Off...
  • Page 22 S Y S T E M M E N U 000 - 255 Green 000 - 255 Blue 000 - 255 Button 0 Amber 000 - 255 Lime 000 - 255 000 - 255 000 - 255 Green 000 - 255 Blue 000 - 255 Button 1...
  • Page 23 S Y S T E M M E N U C Temp Prs Off, 2300K, 2400K...9900K Shutter 000 - 255 Dimmer 000 - 255 MANUAL (continued) Int Progs Off, Prog 0, Prog 1...Prog 13 Int Pr Spd 000 - 255 Int Pr Fad 000 - 255 Speed...

  • Page 24: Dmx Setup

    2 and 3 of a male XLR connector (DATA + and DATA -). This unit is inserted in the female XLR connector of the last unit in your daisy chain to terminate the line. Using a cable terminator (ADJ part number Z-DMX/T) will decrease the possibilities of erratic behavior.

  • Page 25: Dmx Addressing

    D M X S E T U P DMX ADDRESSING All fixtures should be given a DMX starting address when using a DMX controller, so the correct fixture responds to the correct control signal. This digital starting address is the channel number from which the fixture starts to “listen”...

  • Page 26: Dmx Traits

    D M X T R A I T S CHANNEL FUNCTION VALUES 9Ch A 9Ch B 15 Ch 17 Ch 0 - 255 0 - 100% Green 0 - 255 0 - 100% Blue 0 - 255 0 - 100% Amber 0 - 255 0 - 100%...
  • Page 27 D M X T R A I T S CHANNEL FUNCTION VALUES 9Ch A 9Ch B 15 Ch 17 Ch Internal Programs 0 - 10 11 - 26 Auto Program 1 27 - 43 Auto Program 2 44 - 60 Auto Program 3 61 - 76 Auto Program 4...
  • Page 28 D M X T R A I T S CHANNEL FUNCTION VALUES 9Ch A 9Ch B 15 Ch 17 Ch Dim Speed (continued) 3.0 s 4.0 s 5.0 s 6.0 s 7.0 s 8.0 s 9.0 s 10.0 s 161 - 255 Default to unit setting Dim Curves 0 - 20 Square...

  • Page 29: Color Macros Chart

    C O L O R M A C R O C H A R T COLOR GREEN BLUE AMBER LIME MACRO NO. VALUES 1 - 4 5 - 8 9 - 12 13 - 16 17 - 20 21 - 24 25 - 28 29 - 32 33 - 36...
  • Page 30 C O L O R M A C R O C H A R T COLOR GREEN BLUE AMBER LIME MACRO NO. VALUES 161 - 164 165 - 168 169 - 172 173 - 176 177 - 180 181 - 184 185 - 188 189 - 192 193 - 196...

  • Page 31: Dimmer Curve

    D I M M E R C U R V E DIMMER 100% Time (ms) 0 Sec Rise Time Down Time 0 sec Fade Time 1 sec Fade Time Dimming Curve Ramp Effect Rise Time (ms) Down Time (ms) Rise Time (ms) Down Time (ms) Standard (default) Stage...

  • Page 32: Color Temperatures

    C O L O R T E M P E R AT U R E Colors shown are an approximate representation. DMX VALUE COLOR TEMPERATURE (K) DMX VALUE COLOR TEMPERATURE (K) 2300 6200 2400 6300 2500 6400 2600 6500 2700 6600 2800 6700...

  • Page 33: Remote Control Guidelines

    R E M O T E C O N T R O L G U I D E L I N E S REMOTE FUNCTIONS The functions available on the ADJ UC IR24 remote unit are detailed below: ON: Activates the fixture.

  • Page 34: Power Linking

    P R I M A R Y- S E C O N D A R Y S E T U P This function allows you to link units together to run in a Primary-Secondary set-up, in which one unit will act as the controlling unit and the others will react to the controlling unit’s built-in programs. Any unit can be configured to act as a Primary or as a Secondary, but only one unit in a given system can be programmed to act as the Primary.

  • Page 35: Torque Settings For Screws

    T O R Q U E S E T T I N G S F O R S C R E W S IN ORDER TO MAINTAIN THE IP65 RATING ON THE LIGHTING FIXTURES, ALL SCREWS MUST BE TIGHTENED TO THE FOLLOWING TORQUE SPECIFICATION USING A TORQUE DRIVER. Refer to the table and diagram below for torque specifications.

  • Page 36: Ip Test Parameters

    Hydro IP Tester to confirm the IP integrity of the fixture. The air valve is located on the same side as the Power Out and DMX Out ports, as shown in the diagram below. Please contact ADJ Service for information regarding the ADJ Hydro IP Tester, or visit the product information page online at: https:// www.adj.com/hydro-ip-tester...

  • Page 37: Cleaning | Ordering Information

    O R D E R I N G I N F O R M AT I O N SKU (US) SKU (EU) ITEM MIR678 1226100431 ADJ Mirage Par H IP WIF901-POWER IP65 Chogori to Edison Locking Power Cable CABLE CHS5INDMX 20” Chogori locking output data connector to CHS366...

  • Page 38: Specifications

    S P E C I F I C AT I O N S Battery: Source: • Rechargeable Lithium ion • (5) 20W Hex Color RGBAL+UV LED’s • Battery Capacity: 6,600mAh • 50,000 Hour Average Life* • Battery Voltage: 22.2V • *May vary depending on several factors including •...

  • Page 39: Dimensional Drawings

    D I M E N S I O N A L D R AW I N G S 10.4 in (265mm) 7.5 in (191mm)

  • Page 40: Fcc Statement

    F C C S TAT E M E N T Please note that changes or modifications to this product that are not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
  • Page 41 This page intentionally left blank.
