Summary of Contents for ADJ Encore Profile 1000 Color

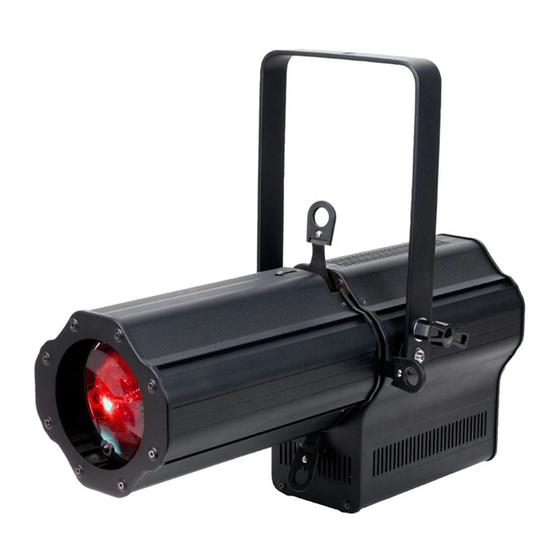

- Page 1 ENCORE PROFILE 1000 COLOR User Manual Rev. 02/21...
- Page 2 Products, LLC brands and product names are trademarks or registered trademarks of their respective companies. ADJ Products, LLC and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic...
-
Page 3: Table Of Contents
11 Channel Mode Color Macro Chart CAD Drawing Gobo Install | Dimmer Curve Chart Power Cord Daisy Chain | Fuse Replacement | Troubleshooting | Cleaning Warranty Specifications ADJ Products, LLC - www.adj.com - Encore Profile 1000 Color User Manual Page 3... - Page 4 Unpacking: Thank you for purchasing the Encore Profile 1000 Color by ADJ Products, LLC. Every Encore Profile 1000 Color has been thoroughly tested and has been shipped in perfect operating con- dition. Carefully check the shipping carton for damage that may have occurred during shipping. If the carton appears to be damaged, carefully inspect your fixture for any damage and be sure all accesso- ries necessary to operate the unit have arrived intact.
- Page 5 Encore Profile 1000 Color Warranty Registration The Encore Profile 1000 Color carries a 2 year limited warranty. Please fill out the enclosed warranty card to validate your purchase. All returned service items, whether under warranty or not, must be freight pre-paid and accompanied by a return authorization (R.A.) number. The R.A. number must be clearly written on the outside of the return package.
-
Page 6: Safety Precautions
C. The appliance has been exposed to rain or water. D. The appliance does not appear to operate normally or exhibits a marked change in perfor- mance. ADJ Products, LLC - www.adj.com - Encore Profile 1000 Color User Manual Page 6... - Page 7 Channel Mode sections of this manual for detailed descriptions of the different modes. The DMX address is set on the back panel of the Encore Profile 1000 Color. Your unit and your DMX con- troller require a standard 3-pin or 5-pin XLR connector for data input and data output (Figure 1). We recommend Accu-Cable DMX cables.
-
Page 8: Dmx Set Up
5-pin data cables in to a 3-pin line, a cable adaptor must be used. These adaptors are readily available at most electric stores. The chart below details a proper cable conversion. ADJ Products, LLC - www.adj.com - Encore Profile 1000 Color User Manual Page 8... -
Page 9: Operating Instructions
3. Press the SET UP button and “SPEED:XX” will be displayed. Use the UP and DOWN buttons to adjust the speed of the color change. The speed can be adjusted between “01” (slowest) to “16” (fastest). ADJ Products, LLC - www.adj.com - Encore Profile 1000 Color User Manual Page 9... - Page 10 Operating through a DMX controller gives the user the freedom to create their own programs tailored to their own individual needs. The Encore Profile 1000 Color has 5 DMX modes: 4 channel mode, 5 channel mode, 6 channel mode, 10 channel mode, and 11 channel mode. See the Channel Mode sections of this manual for detailed descriptions of DMX traits.
- Page 11 Airstream IR app. See the ADJ LED RC2 Operation and UC IR Remote & Airstream IR sections of this manual for details. To control the Encore Profile 1000 Color, plug the included IR receiver into the IR receiver input located on the rear of the controller. The remote control device must be aimed at the IR sensor, and maximum range is 30 feet.
- Page 12 1. Plug the fixture in and press the MODE button until “OTHER MODE” is displayed. 2. Press the SET UP button until “TEM:XXXX” is displayed. 3. Use the UP and DOWN buttons to switch between fahrenheit and celsius. ADJ Products, LLC - www.adj.com - Encore Profile 1000 Color User Manual Page 12...
- Page 13 For a wider beam, move the first/front knob towards the middle of the fixture, and move the second knob towards the middle as well. Adjust accordingly. ADJ Products, LLC - www.adj.com - Encore Profile 1000 Color User Manual Page 13...
-
Page 14: Adj Led Rc2 Operation
30-foot maximum operating range. To use the ADJ LED RC2 you must first activate the fixtures infrared sensor. See the Operat- ing Instructions section of this manual for detailed instructions. - Page 15 XLR connections to any standard DMX controller. Please refer to the Channel Mode sections of this manual for a detailed descriptions of the DMX modes, values, and traits. ADJ Products, LLC - www.adj.com - Encore Profile 1000 Color User Manual Page 15...
- Page 16 SHOW 0 - Press this button to activate show mode. Use buttons 1-9 to select shows 1-9. Press this button twice to run show 10, and press button 1 to run show 11. ADJ Products, LLC - www.adj.com - Encore Profile 1000 Color User Manual Page 16...
-
Page 17: Channel Mode
Encore Profile 1000 Color 4 Channel Mode Encore Profile 1000 Color 5 Channel Mode ADJ Products, LLC - www.adj.com - Encore Profile 1000 Color User Manual Page 17... -
Page 18: Channel Mode
Encore Profile 1000 Color 6 Channel Mode ADJ Products, LLC - www.adj.com - Encore Profile 1000 Color User Manual Page 18... - Page 19 Encore Profile 1000 Color 10 Channel Mode ADJ Products, LLC - www.adj.com - Encore Profile 1000 Color User Manual Page 19...
- Page 20 Encore Profile 1000 Color 10 Channel Mode ADJ Products, LLC - www.adj.com - Encore Profile 1000 Color User Manual Page 20...
- Page 21 Encore Profile 1000 Color 11 Channel Mode ADJ Products, LLC - www.adj.com - Encore Profile 1000 Color User Manual Page 21...
- Page 22 Encore Profile 1000 Color 11 Channel Mode ADJ Products, LLC - www.adj.com - Encore Profile 1000 Color User Manual Page 22...
- Page 23 When Channel 7 is between the values of 205-255, Channel 8 is in Auto Run Mode, and Channel 9 will control the Auto Run speed. ADJ Products, LLC - www.adj.com - Encore Profile 1000 Color User Manual Page 23...
- Page 24 Encore Profile 1000 Color Color Macro Chart DJ Products, LLC - www.adj.com - Encore Profile 1000 Color User Manual Page 24...
- Page 25 Encore Profile 1000 Color Color Macro Chart ADJ Products, LLC - www.adj.com - Encore Profile 1000 Color User Manual Page 25...
- Page 26 Encore Profile 1000 Color CAD Drawing ADJ Products, LLC - www.adj.com - Encore Profile 1000 Color User Manual Page 26...
- Page 27 Encore Profile 1000 Color Gobo Install The Encore Profile 1000 Color comes with 4 replaceable gobos. To install a gobo, unscrew and re- move the phillips screw located at the bottom of the gobo holder. Gently lift part of the gobo holder slide up and carefully slide the gobo into place.
- Page 28 Always be sure to dry all parts completely before plugging the unit back in. Cleaning frequency depends on the environment in which the fixture operates (i.e. smoke, fog resi- due, dust, dew). ADJ Products, LLC - www.adj.com - Encore Profile 1000 Color User Manual Page 28...
- Page 29 Warranty MANUFACTURER’S LIMITED WARRANTY A. ADJ Products, LLC hereby warrants, to the original purchaser, ADJ Products, LLC products to be free of manufacturing defects in material and workmanship for a prescribed period from the date of purchase (see specific warranty period on reverse). This warranty shall be valid only if the product is purchased within the United States of America, including possessions and territories.
-
Page 30: Warranty
A.D.J. Supply Europe B.V. Junostraat 2 6468 EW Kerkrade Netherlands service@adjgroup.eu / www.adj.eu Tel: +31 45 546 85 00 / Fax: +31 45 546 85 99 ADJ Products, LLC - www.adj.com - Encore Profile 1000 Color User Manual Page 30... - Page 31 ADJ Products, LLC - www.adj.com - Encore Profile 1000 Color User Manual Page 31...
