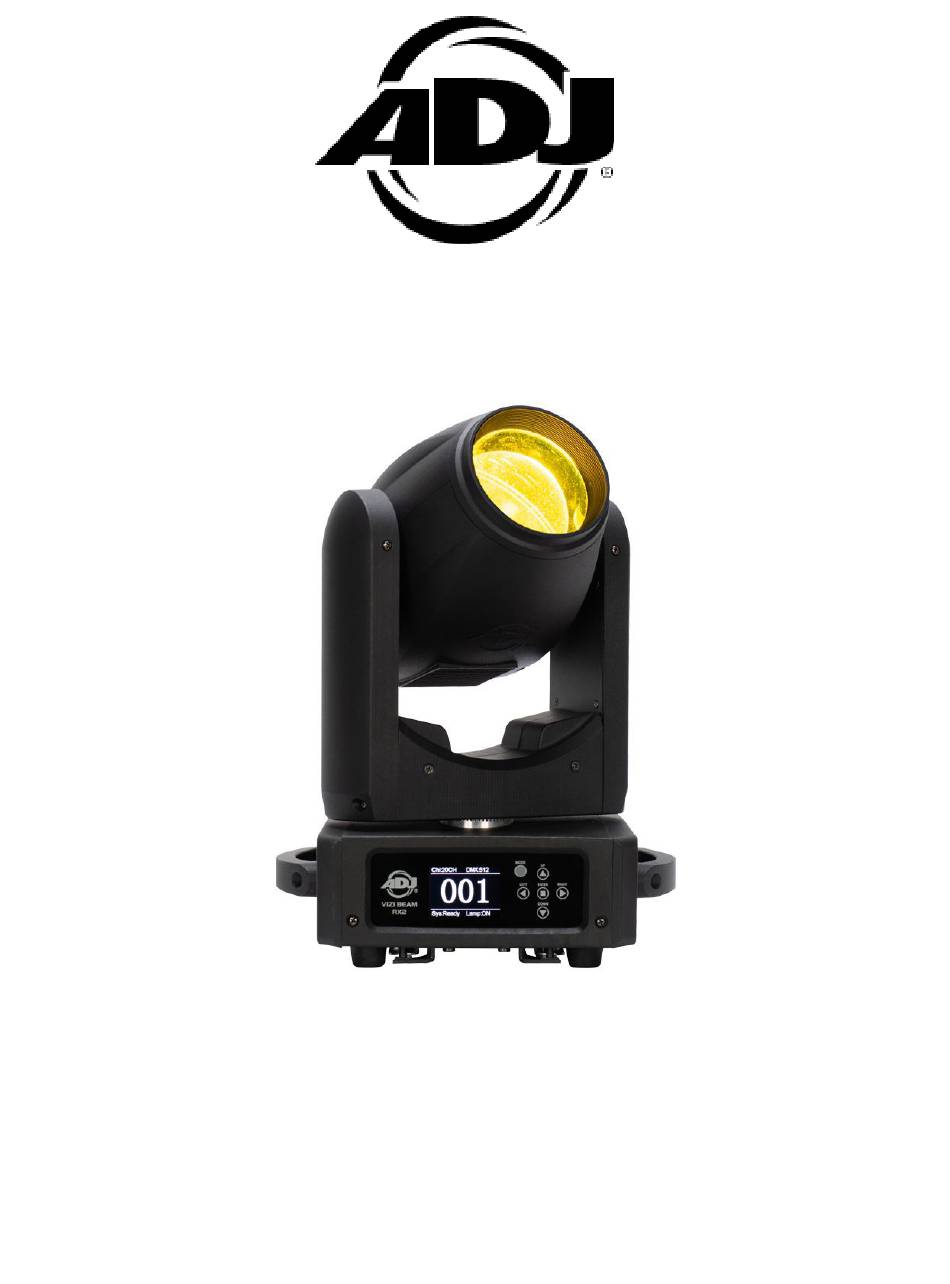

  • Page 1 VIZI BEAM RX2 User Manual...
  • Page 2 ©2024 ADJ Products, LLC all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying prod- uct names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.

  • Page 3: Table Of Contents

    C O N T E N T S Introduction Limited Warranty (USA Only) Warranty Registration | Features Safety Precautions Overview Lamp Warnings Lamp Replacement Color and Gobos Installation Remote Device Management (RDM) Control Panel System Menu DMX Set Up DMX Traits Primary-Secondary Set Up | Multi Unit Power Linking Maintenance Guidelines Error Codes...

  • Page 4: Introduction

    I N T R O D U C T I O N Unpacking: Thank you for purchasing the Vizi Beam RX2 by ADJ Products, LLC. Every device has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the ship- ping carton for damage that may have occurred during shipping.

  • Page 5: Limited Warranty (Usa Only)

    The sole responsibility of ADJ Products, LLC under this warranty shall be limited to the repair of the product, or replacement thereof, including parts, at the sole discretion of ADJ Products, LLC. All products covered by this warranty were manufactured after August 15, 2012, and bear identifying marks to that effect.

  • Page 6: Warranty Registration | Features

    W A R R A N T Y R E G I S T R A T I O N Please fill out the enclosed warranty card to validate your purchase. All returned service items, whether under warranty or not, must be freight pre-paid and accompanied by a return authorization (R.A.) number.

  • Page 7: Safety Precautions

    S A F E T Y P R E C A U T I O N S RISK GROUP 3 - RISK OF EXPOSURE TO ULTRAVIOLET UV RADIATION! FIXTURE EMITS HIGH INTENSITY WAVELENGTH OF ULTRAVIOLET UV LIGHT FROM THE UV COLOR FILTER.
  • Page 8 S A F E T Y P R E C A U T I O N S PROTECTION CLASS 1 - FIXTURE MUST BE PROPERLY GROUNDED. THERE ARE NO USER SERVICEABLE PARTS INSIDE THIS UNIT. DO NOT ATTEMPT ANY REPAIRS YOURSELF, AS DOING SO WILL VOID YOUR MANUFACTURER’S WARRANTY.

  • Page 9: Overview

    O V E R V I E W Mode Button Power Button Right Button Display Left Enter Down Fuse Screen Button Button Button Power Omega Safety Bracket Cable Mounting Slots Holes...

  • Page 10: Lamp Warnings

    L A M P W A R N I N G S This fixture is fitted with a discharge lamp which is highly susceptible to damage if improperly handled. NEVER touch the lamp with your bare fingers, as the oil from your hands will shorten lamp life.
  • Page 11 This is for your safety and the life length of the unit. The Osram® Sirius HRI Discharge lamp has lifetime of 6000 hours. ADJ recommends periodically checking the lamp running time (see the “Lamp Time” sub-section of the System Menu section of this manual). When the lamp approaches or reaches the 6000 hour mark, the lamp should be removed and replaced with a fresh unit.

  • Page 12: Lamp Replacement

    L A M P R E P L A C E M E N T Follow the steps below to replace the Osram Sirius HRI discharge lamp. 1. Power down the fixture and disconnect from the power source. Allow at least 15 minutes for the fixture to cool, and make sure all components are cool enough to handle before beginning this procedure.

  • Page 13: Color And Gobos

    C O L O R S A N D G O B O S COLORS Position 1 Position 4 Position 2 Position 3 Position 5 Lime Blue Green Orange Position 10 Position 6 Position 7 Position 8 Position 9 Amber Pink Lavender Medium Red...

  • Page 14: Installation

    I N S T A L L A T I O N DO NOT INSTALL THE FIXTURE IF YOU ARE NOT QUALIFIED TO DO SO! Fixture MUST be installed following all local, national, and country commercial electrical and construc- tion codes and regulations. When installing the unit, the trussing or area of installation must be able to hold 10 times the weight of the unit and any attached accessories without any deformation.
  • Page 15 I N S T A L L A T I O N CLAMP MOUNTING This fixture features mounting holes on the underside for the attachment of Omega clamps. When mounting the fixture to a truss or any other suspended structure, be sure to secure an appropriate rated clamp (not included) to each Omega bracket.
  • Page 16 I N S T A L L A T I O N The unit is fully operational in three different mounting positions: hanging upside-down from the ceil- ing or trussing, sideways on trussing, or set on a flat level surface. Be sure this fixture is kept at least 12m (40ft) away from any flammable materials (decorations, etc).
  • Page 17 LEDs. This issue is not specific only to ADJ lighting fixtures, it is a common issue with lighting fixtures from all manufacturers. Although there is no true way to fully prevent this issue from happening, the guidelines below can prevent any potential damage from occurring if followed.

  • Page 18: Remote Device Management (Rdm)

    R E M O T E D E V I C E M A N A G E M E N T ( R D M ) R E M O T E D E V I C E M A N A G E M E N T ( R D M ) NOTE: In order for RDM to work properly, RDM enabled equipment must be used throughout the entire system, including DMX data splitters and wireless systems.

  • Page 19: Control Panel

    C O N T R O L P A N E L This unit features a display screen with a 4-button control pad, which can be used to easily adjust any device settings. Pressing the MODE button will cycle through the various Main Menu options. When the desired Main Menu option is displayed on the screen, press the ENTER button to enter the sub-menu, then use the UP, DOWN, LEFT, and RIGHT buttons to navigate through sub-menu options.

  • Page 20: System Menu

    S Y S T E M M E N U MAIN MENU OPTIONS / VALUES 001 - 512 Address Set DMX starting address 16Ch / 20Ch DMX CH Mode Select DMX channel mode Unit holds last settings received if Hold Last DMX signal is lost or interrupted Unit takes all channels to 0 if DMX SETTINGS...
  • Page 21 S Y S T E M M E N U MAIN MENU OPTIONS / VALUES 1 - 10 Intensity Adjust display brightness Display automatically orients itself Auto to remain upright Display Invert Display Inverted display orientation Standard display orientation Screen Saver Screen goes into standby mode Off - 10min Delay...
  • Page 22 S Y S T E M M E N U MAIN MENU OPTIONS / VALUES On / Off Lamp On/Off Manual lamp on/off control Lamp On with Lamp automatically turns on when On / Off Power unit is powered on LAMP Lamp On via CONTROL...

  • Page 23: Dmx Set Up

    D M X S E T U P DMX-512: DMX is short for Digital Multiplex. This is a universal protocol used as a form of commu- nication between intelligent fixtures and controllers. A DMX controller sends DMX data instructions from the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture via the DATA “IN”...
  • Page 24 2 and 3 of a male XLR connector (DATA + and DATA -). This unit is inserted in the female XLR connector of the last unit in your daisy chain to terminate the line. Using a cable terminator (ADJ part number Z-DMX/T) will reduce the risk of erratic behavior. DMX ADDRESSING.

  • Page 25: Dmx Traits

    D M X T R A I T S CHANNEL FUNCTION VALUES 16Ch 20Ch 000 - 255 Pan Pan Fine 000 - 255 Pan Fine Tilt 000 - 255 Tilt Tilt Fine 000 - 255 Tilt Fine Color 000 - 003 White 004 - 007 Red 008 - 011 Blue 012 - 015 Green...
  • Page 26 D M X T R A I T S CHANNEL FUNCTION VALUES 20Ch Color (continued) 086 - 087 Pink to Lavender 088 - 089 Lavender 090 - 091 Lavender to Medium Red 092 - 093 Medium Red 094 - 095 Medium Red to Aqua 096 - 097 Aqua 098 - 099 Aqua to Amber 100 - 101 Amber...
  • Page 27 D M X T R A I T S CHANNEL FUNCTION VALUES 16Ch 20Ch Static Gobo (continued) 057 - 059 Gobo 15 060 - 063 Open Shake, slow to fast 064 - 067 Gobo 1 Shake, slow to fast 068 - 071 Gobo 2 Shake, slow to fast 072 - 075 Gobo 3 Shake, slow to fast 076 - 079 Gobo 4 Shake, slow to fast 080 - 083 Gobo 5 Shake, slow to fast...
  • Page 28 D M X T R A I T S CHANNEL FUNCTION VALUES 16Ch 20Ch Shutter 000 - 031 Close 032 - 063 Open 064 - 095 Strobe, slow to fast 096 - 127 Open 128 - 159 Pulse Effect in sequence 160 - 191 Open 192 - 223 Random Strobe, slow to fast 224 - 255 Open...
  • Page 29 D M X T R A I T S CHANNEL FUNCTION VALUES 16Ch 20Ch Pan/Tilt Macros (continued) 128 - 135 Macro 16 136 - 143 Macro 17 144 - 151 Macro 18 152 - 159 Macro 19 160 - 167 Macro 20 168 - 175 Macro 21 176 - 183 Macro 22 184 - 191 Macro 23...
  • Page 30 D M X T R A I T S CHANNEL FUNCTION VALUES 16Ch 20Ch Special Function (continued) 090 - 099 Enable blackout while color changing 100 - 109 Disable blackout while color changing 110 - 119 Enable blackout while gobo changing 120 - 129 Disable blackout while gobo changing 130 - 139 Lamp On 140 - 149 Reset XY...

  • Page 31: Primary-Secondary Set Up | Multi Unit Power Linking

    P R I M A R Y - S E C O N D A R Y S E T U P This function allows you to link units together to run in a Primary-Secondary set-up, in which one unit will act as the controlling unit and the others will react to the controlling unit’s built-in programs.

  • Page 32: Maintenance Guidelines

    Regular inspections are recommended to ensure proper function and extended life. There are no user serviceable parts inside this fixture. Please refer all other service issues to an authorized ADJ service technician. Should you need any spare parts, please order genuine parts from your local ADJ dealer.

  • Page 33: Error Codes

    E R R O R C O D E S ERROR GROUP ERROR CODE DESCRIPTION Pan Encoder Error Encoder Error: Pan Encoder Error Tilt Encoder Error Encoder Error: Tilt Pan Sensor Error Sensor Error: Pan Tilt Sensor Error Sensor Error: Tilt Color Sensor Error Sensor Error: Color Sensor Error...

  • Page 34: Dimensional Drawings

    D I M E N S I O N A L D R A W I N G S 9.4in (239.6mm) 9.6in (243.6mm) VIZI BEAM 9in (230mm) 6.7in ø3.9in (169.6mm) 3.4in (87.5mm) (ø100mm) 12.9in (327.8mm) 12in (304mm) 9in (230mm) 2in (50.8mm) ø10.9in (ø277mm) 4.2in...

  • Page 35: Specifications

    S P E C I F I C A T I O N S Light Source: Pan/Tilt: • OSRAM Sirius HRI 100W Discharge Lamp • Pan: 540 degrees (plus 16-bit fine pan) (6,000 hr.) • Tilt: 270 degrees (plus 16-bit fine tilt) •...
