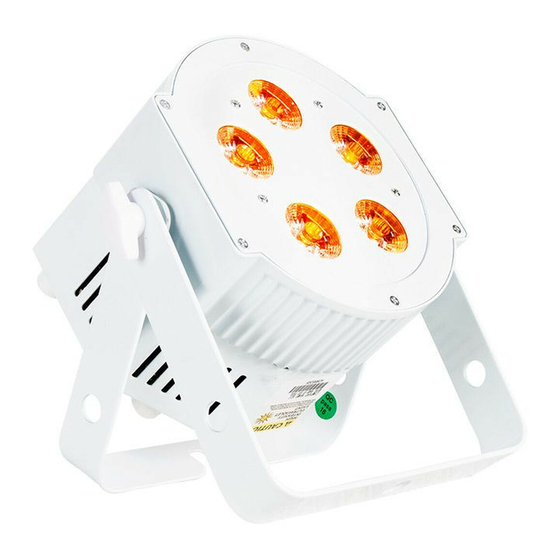

5PX HEX/5PX HEX PEARL
User Instructions
4 0 1 0 7 6 5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5PX HEX and is the answer not in the manual?

Questions and answers

Related Manuals for ADJ 5PX HEX

Summary of Contents for ADJ 5PX HEX

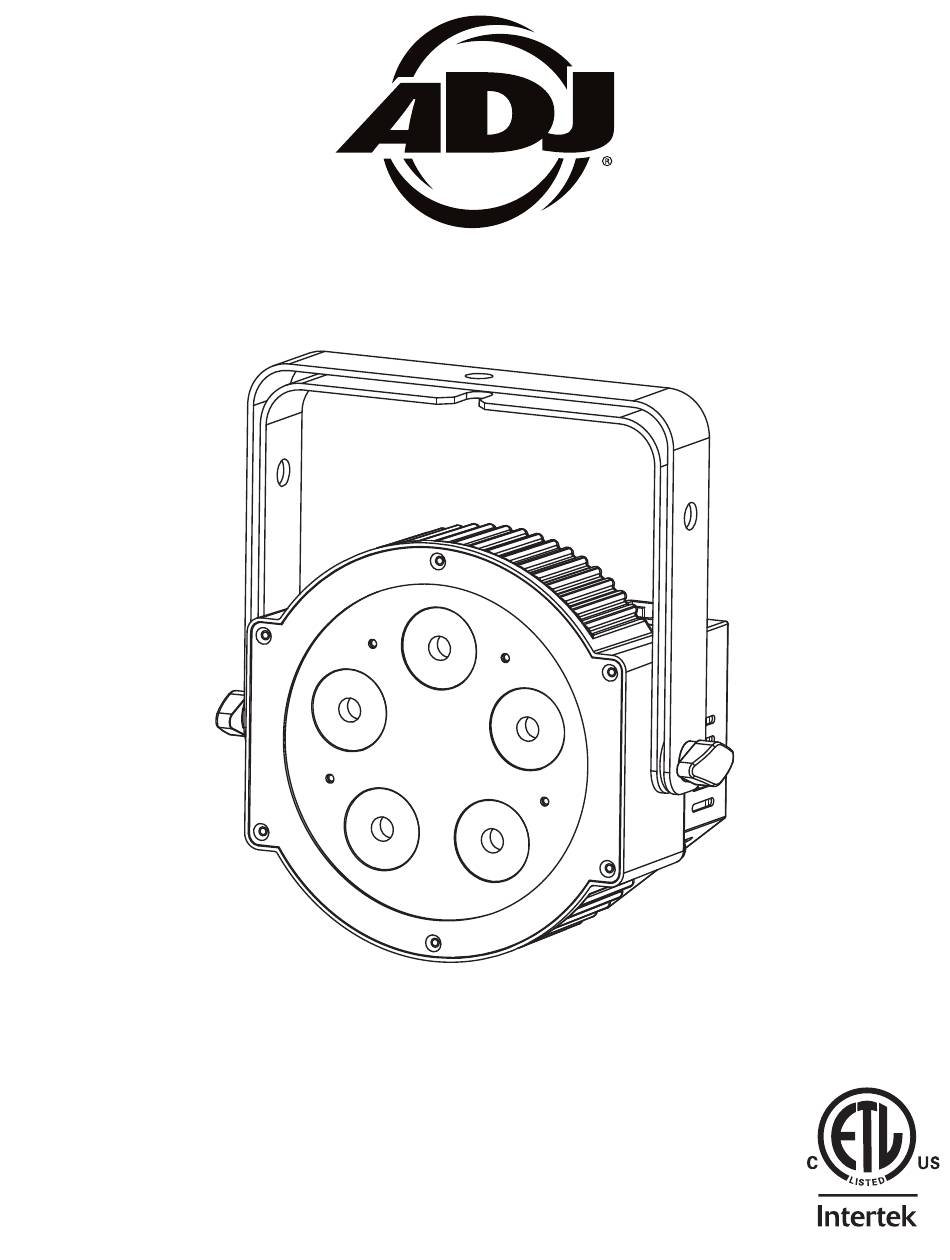

  • Page 1 5PX HEX/5PX HEX PEARL User Instructions 4 0 1 0 7 6 5...
  • Page 2 All non-ADJ Products, LLC brands and product names are trademarks or registered trademarks of their respective companies. ADJ Products, LLC and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic...

  • Page 3: Table Of Contents

    DMX Channel Modes Color Macro Chart System Menu Operating Instructions Master-Slave Configuration Dotz Par RF Operation Dimmer Curve Chart Dimensional Drawings Power Linking/Trouble Shooting/Cleaning Warranty Specifications ADJ Products, LLC - www.adj.com - 5PX Hex/5PX Hex Pearl User Manual Page 2...

  • Page 4: Introduction

    Sound Active mode, Program mode, RGBWA + UV dimmer mode, Static Color mode, and DMX control mode. The 5PX Hex/5PX Hex Pearl has 4 DMX channel modes; 6, 7, 8, & 12. Customer Support: ADJ Products, LLC provides a customer support line, to provide set up help and to answer any question should you encounter problems during your set up or initial operation.

  • Page 5: Features/Warranty Registration/Installation

    5PX Hex/5PX Hex Pearl Warranty Registration The 5PX Hex and 5PX Hex Pearl carry a 2 year limited warranty. Please fill out the enclosed warranty card to validate your purchase. All returned service items whether under warranty or not, must be freight pre-paid and accompany a return authorization (R.A.) number.

  • Page 6: Safety Precautions

    D. The fixture does not appear to operate normally or exhibits a marked change in performance. E. The fixture has fallen and/or subjected to extreme handling. ADJ Products, LLC - www.adj.com - 5PX Hex/5PX Hex Pearl User Manual Page 5...
  • Page 7 INDIVIDUALS SUFFERING FROM A RANGE OF EYE CONDITIONS, SUNLIGHT EXPOSURE DISORDERS, OR INDIVIDUALS USING PHOTOSENSITIVE MEDICATION, MAY RECEIVE DISCOMFORT IF EXPOSED TO THE ULTRAVIOLET (UV) LIGHT EMITTED FROM THIS FIXTURE. ADJ Products, LLC - www.adj.com - 5PX Hex/5PX Hex Pearl User Manual Page 6...

  • Page 8: Layout

    Down Button Enter Button Power In Port Power Out Port 3-Pin XLR Out Port 3-Pin XLR In Port 5-Pin XLR Out Port 5-Pin XLR In Port ADJ Products, LLC - www.adj.com - 5PX Hex/5PX Hex Pearl User Manual Page 7...

  • Page 9: Dmx Set Up

    Data Cable (DMX Cable) Requirements (For DMX Operation): The 5PX Hex/5PX Hex Pearl can be controlled via DMX-512 protocol. The 5PX Hex/5PX Hex Pearl have 4 DMX channel modes. The DMX address is set on the back panel of the 5PX Hex/5PX Hex Pearl. Your unit and your DMX controller REMOTE...
  • Page 10 Data Compliment (- signal) Pin 2 Pin 2 Data True (+ signal) Pin 3 Pin 3 Not Used Do Not Use Not Used Do Not Use ADJ Products, LLC - www.adj.com - 5PX Hex/5PX Hex Pearl User Manual Page 9...

  • Page 11: Dmx Addressing

    In the case of the 5PX Hex/5PX Hex Pearl, when in 12 channel mode you should set the starting DMX address of the first unit to 1, the second unit to 13 (12 + 1), the third unit to 25 (13 + 12), and so on.

  • Page 12: Dmx Channel Modes

    0 - 255 Dimmer Modes 0 - 20 Standard 21- 40 Stage 41- 60 61- 80 Architectural 81- 100 Theatre 101- 255 Default to unit setting ADJ Products, LLC - www.adj.com - 5PX Hex/5PX Hex Pearl User Manual Page 11...

  • Page 13: Color Macro Chart

    Color24 93-96 Color57 Color25 97-100 Color58 Color26 101-104 Color59 Color27 105-108 Color60 Color28 109-112 Color61 Color29 113-116 Color62 Color30 117-120 Color63 Color31 121-124 Color64 Color32 125-128 ADJ Products, LLC - www.adj.com - 5PX Hex/5PX Hex Pearl User Manual Page 12...
  • Page 14 Color52 205-208 Color53 209-212 Color54 213-216 Color55 217-220 Color56 221-224 Color57 225-228 Color58 229-232 Color59 233-236 Color60 237-240 Color61 241-244 Color62 245-248 Color63 249-252 Color64 253-255 ADJ Products, LLC - www.adj.com - 5PX Hex/5PX Hex Pearl User Manual Page 13...

  • Page 15: System Menu

    Dimmer Mode u ：000~255 A ：000~255 U ：000~255 So00~30 Sound Active Sound Active Mode Remote Remote Sensor rFon or rFoF Activation Activation Slave SLAV Slave Setting ADJ Products, LLC - www.adj.com - 5PX Hex/5PX Hex Pearl User Manual Page 14...

  • Page 16: Operating Instructions

    3. Press the ENTER button to adjust the fade speed, “00” being the slowest, “30” the fastest. 4. Press the ENTER button again to adjust the color change speed, “00” being the slowest, “30” the fastest. ADJ Products, LLC - www.adj.com - 5PX Hex/5PX Hex Pearl User Manual Page 15...
  • Page 17 Operating through a DMX controller gives the user the freedom to create their own programs tailored to their own individual needs. The 5PX Hex/5PX Hex Pearl have 4 DMX modes: 6 Channel mode, 7 Channel mode, 8 Channel mode, and a 12 Channel mode. See page 11 for each modes DMX traits.

  • Page 18: Master-Slave Configuration

    3. Connect the first “Slave” unit to the “Master.” 4. On the “Slave” unit press the MODE button until “SLAV” is displayed. The “Slave” unit will now follow the “Master”. ADJ Products, LLC - www.adj.com - 5PX Hex/5PX Hex Pearl User Manual Page 17...

  • Page 19: Dotz Par Rf Operation

    “+” and “-” - Use these buttons to adjust the speed of the built-in program, scroll through the built-in programs, and scroll through the static colors. ADJ Products, LLC - www.adj.com - 5PX Hex/5PX Hex Pearl User Manual Page 18...

  • Page 20: Dimmer Curve Chart

    Rise Time (ms) Down Time (ms) Standard (default) Stage 1100 1540 1660 1180 1520 1860 1940 Architectural 1380 1730 2040 2120 Theatre 1580 1940 2230 2280 ADJ Products, LLC - www.adj.com - 5PX Hex/5PX Hex Pearl User Manual Page 19...

  • Page 21: Dimensional Drawings

    5PX Hex/5PX Hex Pearl Dimensional Drawing 8.18”/207.9mm 4.48”/114mm ADJ Products, LLC - www.adj.com - 5PX Hex/5PX Hex Pearl User Manual Page 20...

  • Page 22: Power Linking/Trouble Shooting/Cleaning

    3. Always be sure to dry all parts completely before plugging the unit back in. Cleaning frequency depends on the environment in which the fixture operates (i.e. smoke, fog resi- due, dust, dew). ADJ Products, LLC - www.adj.com - 5PX Hex/5PX Hex Pearl User Manual Page 21...

  • Page 23: Warranty

    ADJ Products, LLC concludes, after inspection, affects the reliability of the product; if the product has been repaired or serviced by anyone other than the ADJ Products, LLC factory unless prior written authorization was issued to purchaser by ADJ Products, LLC; if the product is damaged because not properly maintained as set forth in the instruction manual.

  • Page 24: Specifications

    5PX Hex/5PX Hex Pearl Specifications Model: 5PX Hex/5PX Hex Pearl Voltage: 100V ~ 240V/50~60Hz LEDs: 5 x 12W 6-in-1 HEX LED’s Working Position: Any safe working position Power Draw: 56.2W Weight: 5.8 lbs./ 2.6 Kgs. Dimensions: 4.48” (L) x 8.18” (W) x 8.71” (H) 114 x 207.9 x 221.4mm...
