Chapter 2: Jumpers and Connectors

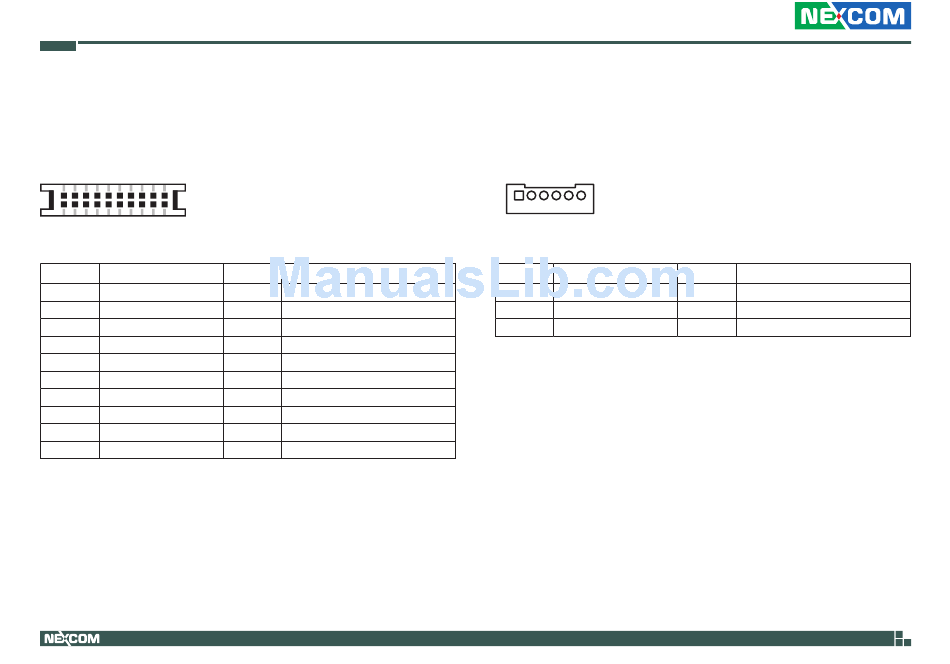

LVDS Connector

Connector type: 2x10 20-pin header, 1.25mm pitch
Connector location: CN4
1 19
2 20
Pin Definition
1 DDC_CLK
3 VCC_LCD
5 LVDS_TXP3
7 LVDS_TXN3
9 GND
11 LVDS_CLKP
13 LVDS_CLKN
15 GND
17 LVDS_TXP2
19 LVDS_TXN2
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 DDC_DATA
4 LVDS_TXP0
6 LVDS_TXN0
8 VCC_LCD
10 LVDS_TXP1
12 LVDS_TXN1
14 GND
16 V_INV
18 V_INV
20 GND

USB 3/4 Connector

Connector type: 1x6 JST, 6-pin header, 2.0mm pitch
Connector location: J9
1 6
Pin Definition
1 +5V
3 Data 3+
5 Data 4+
16
Pin Definition
2 Data 3-
4 Data 4-
6 GND
