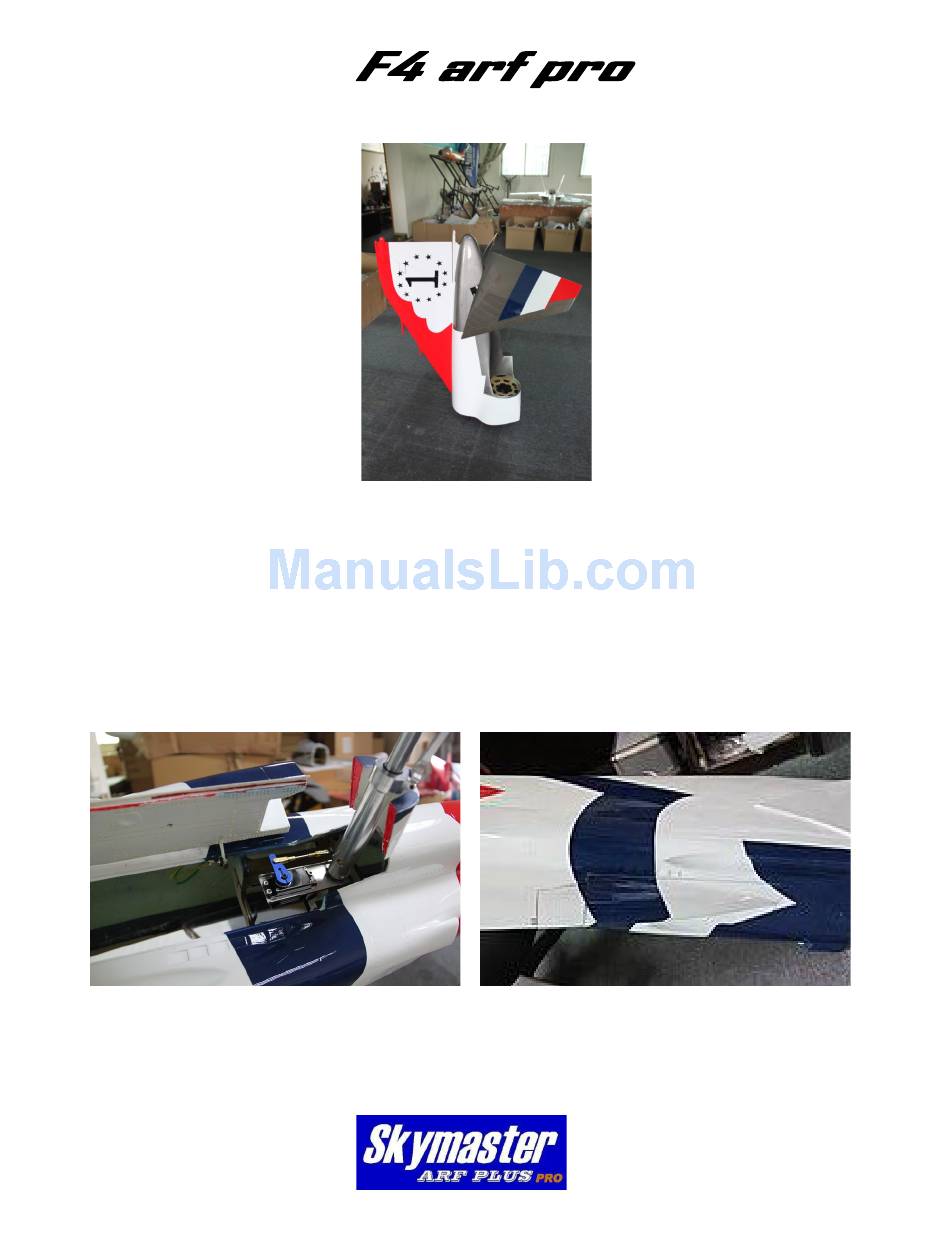

FUSELAGE REAR
Before joining the fuselage it is necessary to tidy up the servo wires. Make sure
wires are secure and will not touch the tailpipe.
Use quick disconnects between front and rear fuselage.
Check operation of rudder and elevator
Install the elevator wipers. The are sliding in slots around elevator.
NOSE STEERING
Photo 25
Fit steering servo.
Check operation of nose LG & doors.
Assembly & Operation Manual
Photo 24
P-15
Photo 26
