Stabilizer - Skymaster ARF PLUS PRO F4 C/E PHANTOM Assembly And Operation Manual

ELEVATOR
NOTE: Use some protective foam on the work bench to protect the paint surface from
unwanted dents. Mark √ each step.

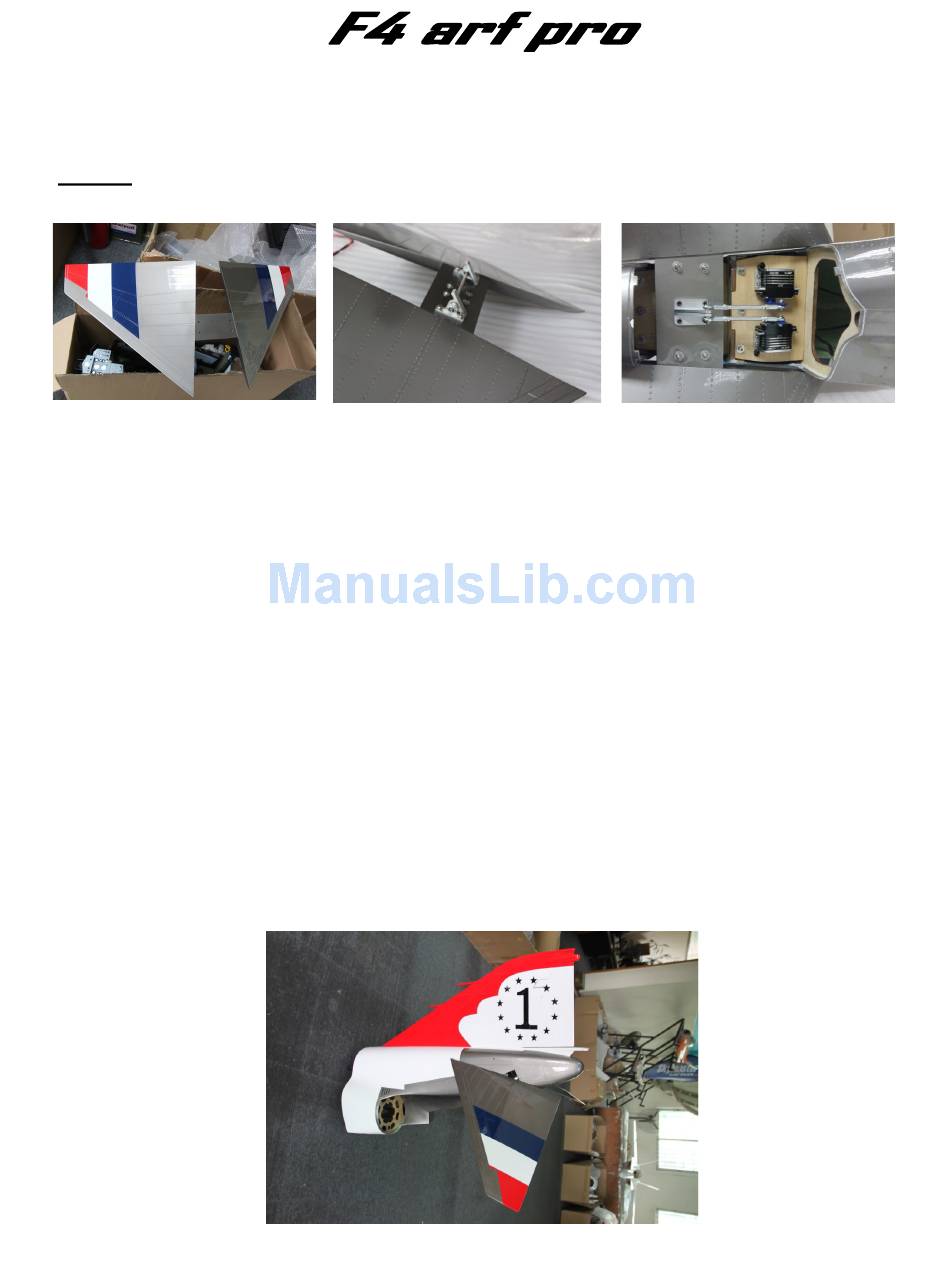

Photo 20
Assemble elevator belcrank assembly.
Secure the assembly to moving stab. Use 4 bolts with washers and lock nuts.
Secure 4 L-brackets to the 2 MKS elevator servos.
Fit metal servo horn and center servo using radio. Synchronize the servos.
Fasten the 2 alluminium elevator horns to the elevato. Secure with bolts and nuts.
Secure the elevator belcrank mechanism to the ply plate. Then secure the ply plate
to the slots in rear of fuselage. Bolt to position.
Check operation and movement of elevator.
Make up 2 elevator pushrod bearing mounts. Same length. Install pushrods.
Run servo wires away from tailpipe.
Connect to temporarily to radio and check operation of elevator.
Assembly & Operation Manual
Photo 21
Photo 23
P-14
Photo 22
