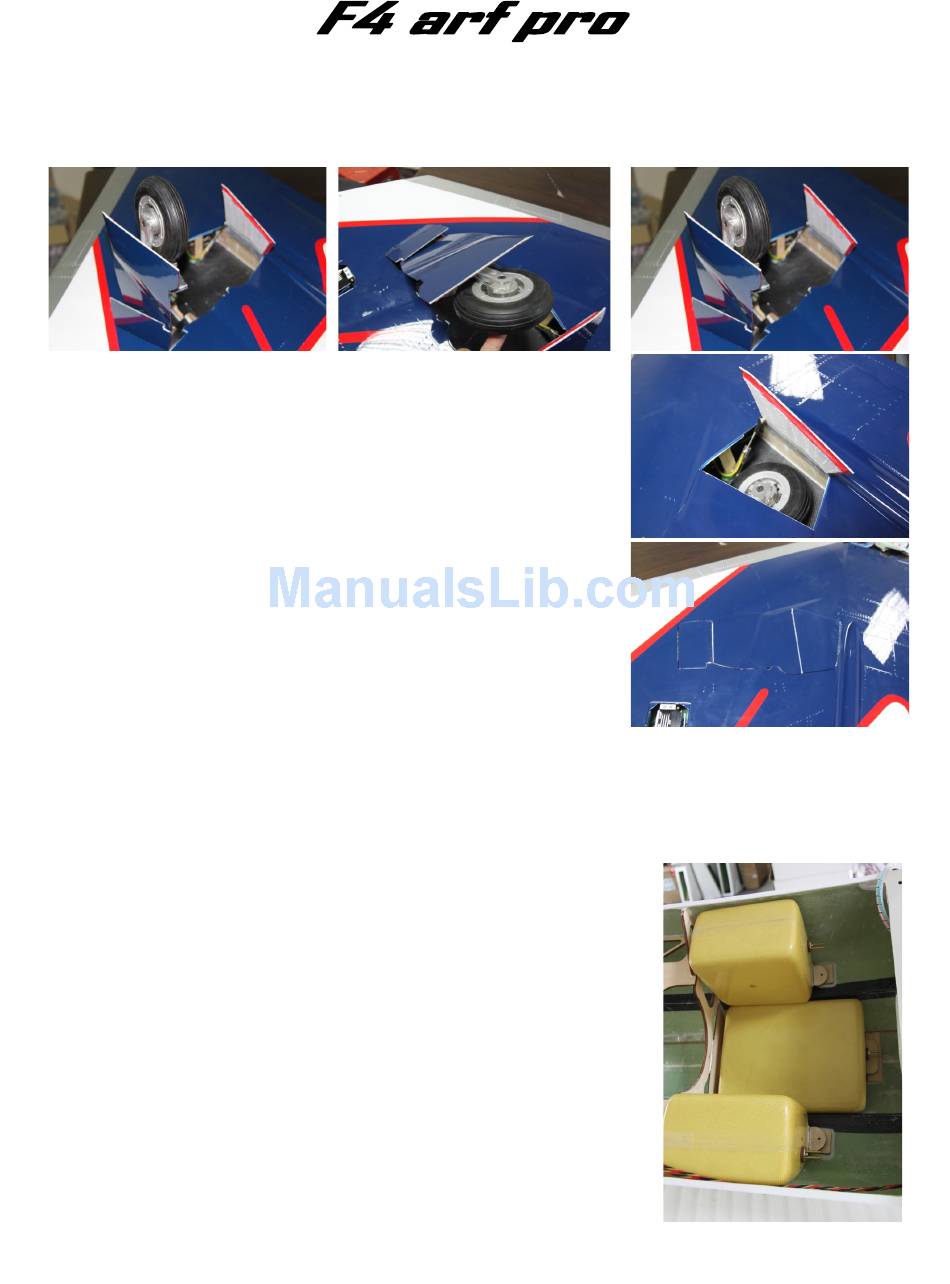

LANDING GEAR

Photo 27
Gear is part of centre wing section.
Check operation of main gear and doors. All factory
fitted. Root all air pipes and servo wires neatly to front
of fuselage. Use quick disconnects.
With gear in centre wing it makes it easy to assemble
at flying field. Centre section can be left on fuselage.

FUEL CELLS

NOTE: Bad plumbing lead to flame outs. This will destroy your model. Please take your time
and do a good job.
Make sure clunk moves freely and reaches all corners of
inside of tanks.
Fit to main tank. Mark pipes for "inlet" and "outlet".
Secure 2 saddle tanks in position. Saddle tanks will feed
main tank. The main tank will feed UAT.
Plumb tank using diagram on next page. Fill tank and
check for leaks.
Drain tank with turbine fuel pump and check no air. Bub-
bles in system until last drop is drained. A good plumbing
will secure good turbine operation.
Assembly & Operation Manual
Photo 28
P-16
Photo 29
Photo 30
Photo 31
Photo 32
