Assembly & Operation Manual

FUSELAGE REAR

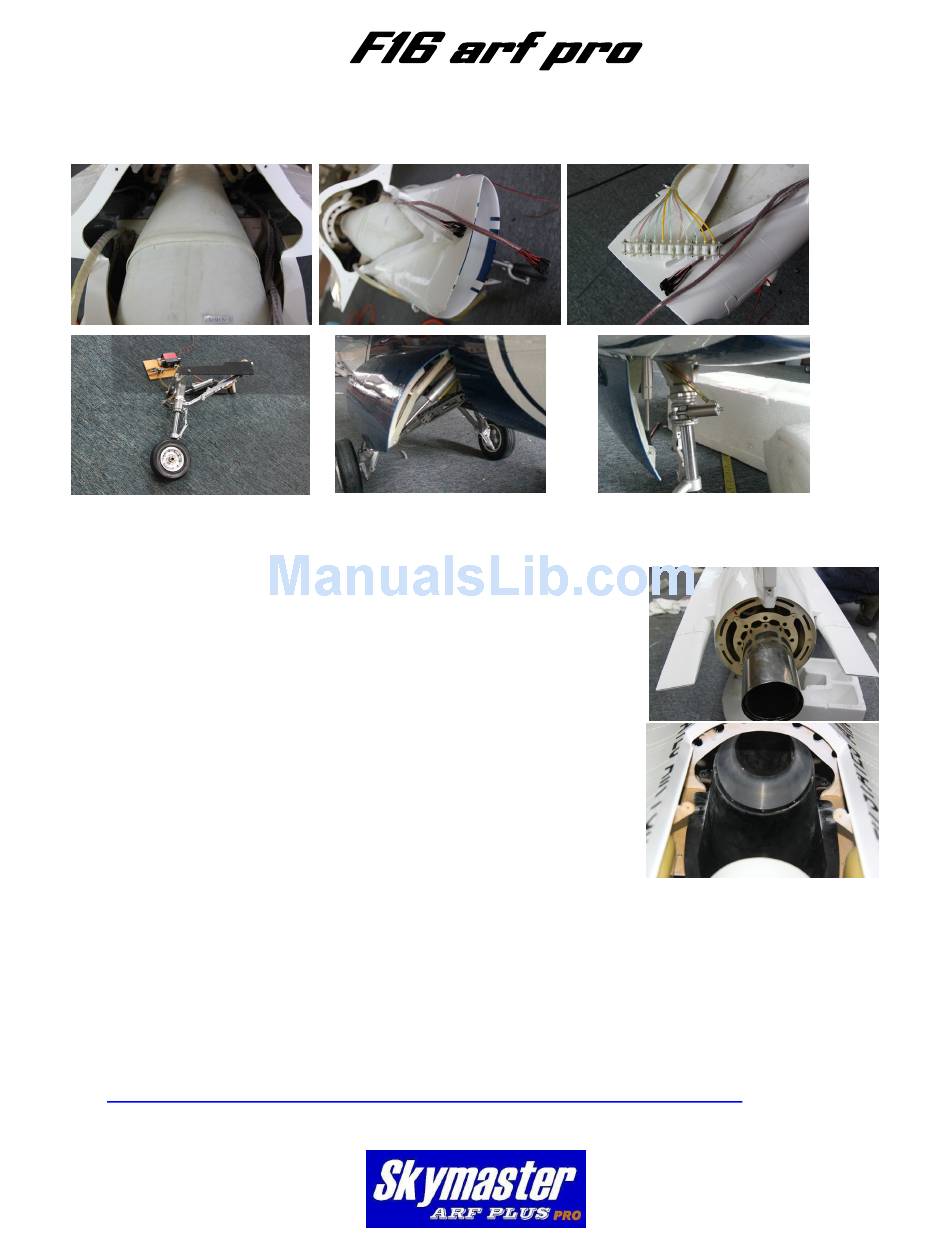

Photo 39 Photo 40 Photo 41
Photo 42 Photo 43 Photo 44
Before joining the fuselage it is necessary to tidy up the servo wires. Make sure
wires are secure and will not touch the tailpipe.
Tidy up the air line. Use quick disconnects between front
and rear fuselage. This will make it easier the remove
nose in future.
Check operation of landing gear and doors.
Photo 45
Slide tailpipe into rear section. Secure rear former with 4
screws.
Adjust the length pipe to fit snug against bypass and no
play is felt. Secure bypass to engine rails.
Route 3 servo wires along inner skin of rear fuselage.
Photo 46
Speed brake air tubing and LG + Door air tubing will all be
factory fitted. Route to front of rear fuselage.
Install JR DS8511 steering servo. Bolt with 4 x M3 bolts and lock nuts.
Centre servo and connect to actuator. The nose steering use hydrolic fluid. Check
no air bubbles between 2 cylinders. See video below!
Secure tail cone with 4 screws.
https://www.youtube.com/watch?v=eXW2E1gKLus&feature=youtu.be
