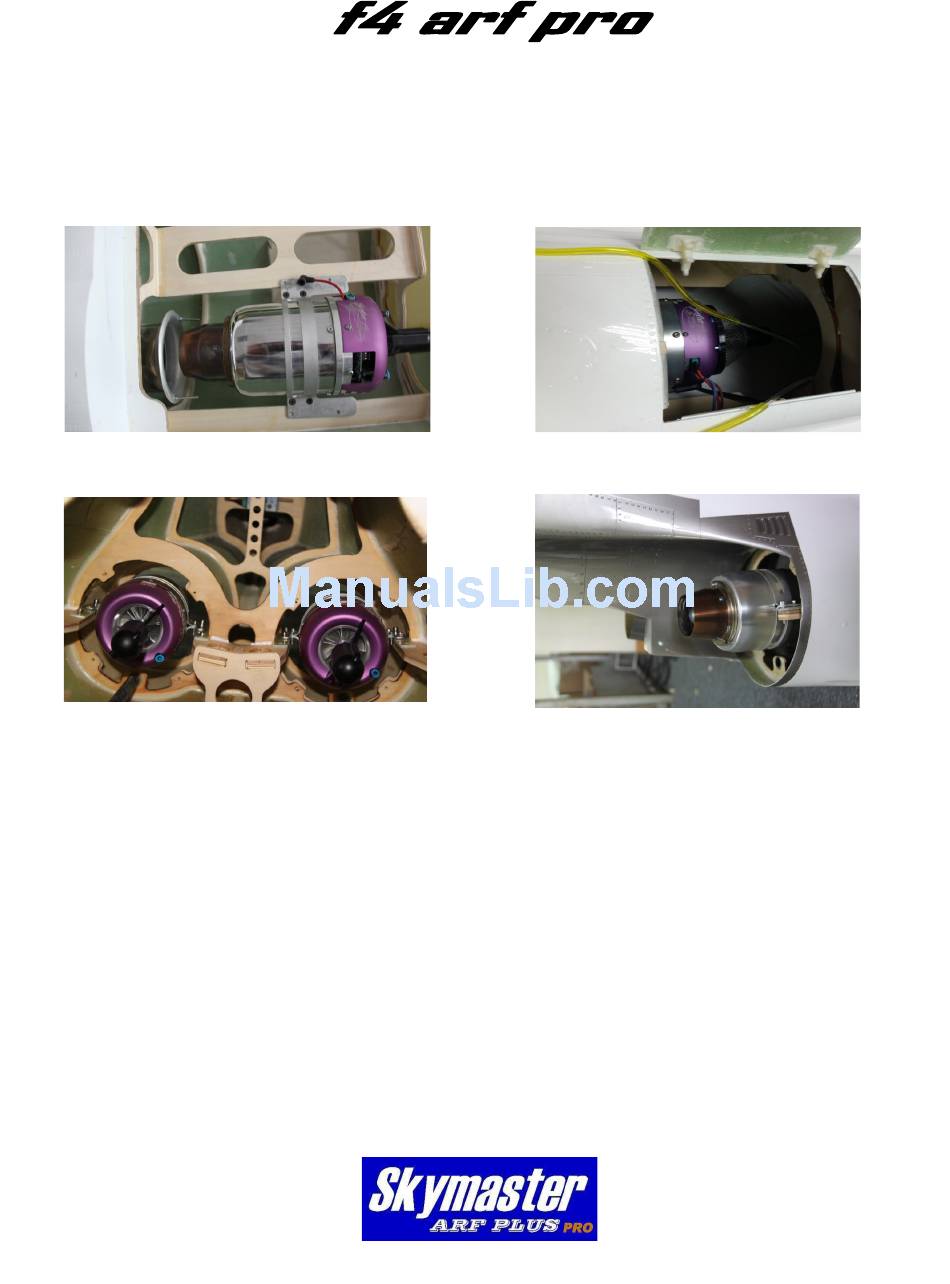

TURBINE INSTALLATION

NOTE: 3 versions can be ordered. 1. Single MID 2. Twin Tail 3. Twin MID. Mid turbine can
only be removed once the bottom wing removed. Access hatch for monitor startup only.
Photo 38
Photo 40
Please follow the instructions supplied with your turbine.
The F4 can be configured for twin turbine or single turbine operation.
The angles are factory set. Mount parallel to turbine rails.
We show the twin tail installation. This option do not need any tail pipe.
For mid installation a tail pipe is required.
Use FOD screens. Secure all wires and cables and pipes. We recommend to make
use of a mechanical shut off valve as well.
Install Le Fe / Li Po battery in nose for correct CG.
The tail cones will twist and lock.
Assembly & Operation Manual
P-20
Photo 39
Photo 41
